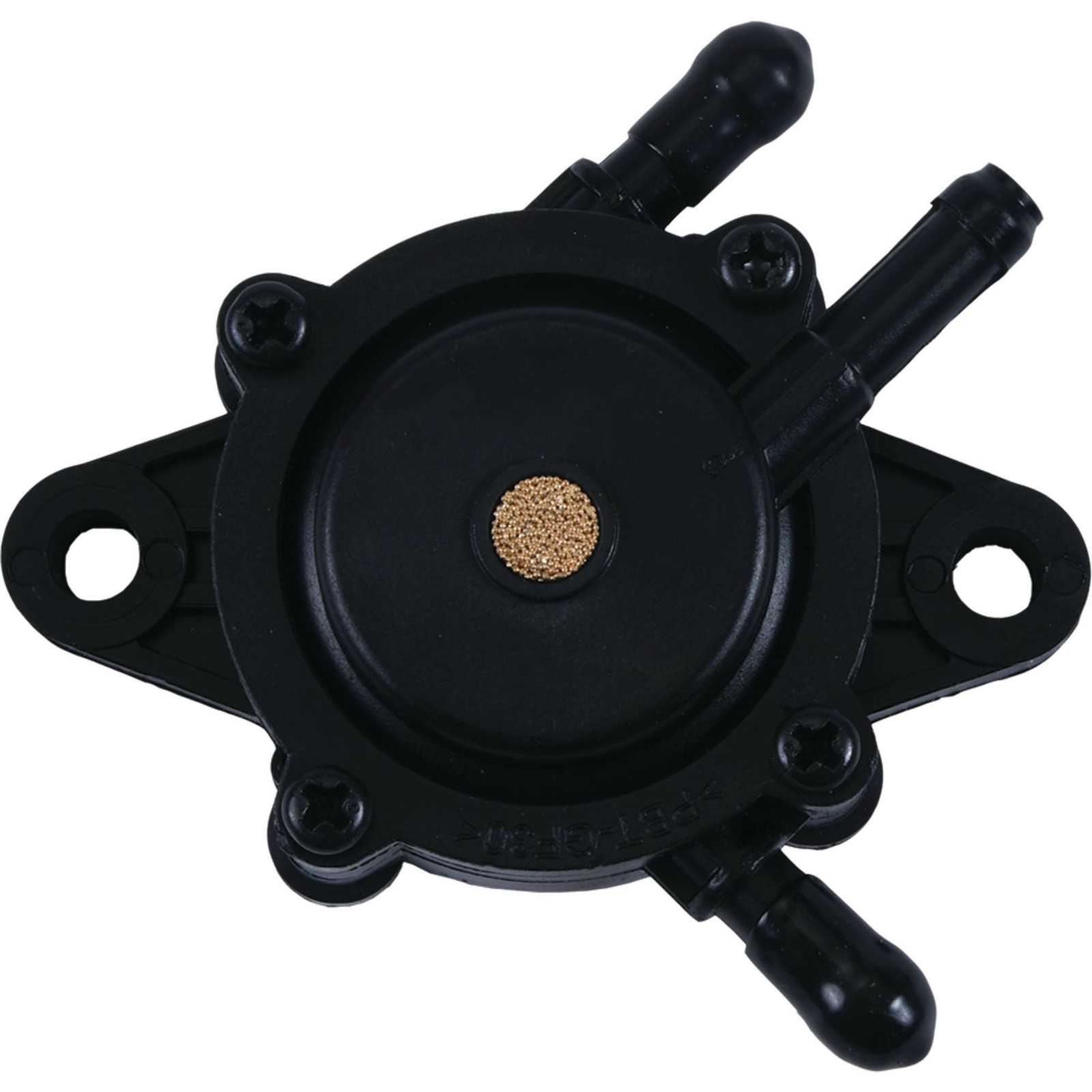

Fuel Pump Pulse Vacuum 2005-2021 Arctic Cat 400 500 650 TBX Kawasaki Mule 610 4X
Replaces Part Numbers & Specifications
OEM PART NUMBERS:
• Arctic Cat: 0470-758
• Arctic Cat: 0470-519 (superseded by 0470-758)
• Kawasaki: 49040-0769
• Kawasaki: 49040-7001 (superseded by 49040-0769)
• Kawasaki: 49040-2075 (superseded by 49040-7001)
• Kawasaki: 49040-0801 (current number, supersedes 49040-0769)
SPECIFICATIONS:
• Type: Vacuum Operated Diaphragm Fuel Pump
• Operation: Mechanical - Crankcase Pulse Driven
• Inlet Port: 3.8-4mm diameter
• Outlet Port: 7.8-8mm diameter
• Fuel Line Size: 1/4 inch (6.35mm)
• Flow Rate: 250ml/min
• Electrical: None - Mechanical Operation Only
• Engine Type: Carbureted Engines Only
• Condition: Brand New
SUPERSESSION CHAIN:
• Kawasaki: 49040-2075 → 49040-7001 → 49040-0769 → 49040-0801
• Arctic Cat: 0470-519 → 0470-758
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
