Fitment
A 4-runner layout scaling exactly 8 inches from end to end perfectly matches 1.5L and 1.6L Honda D-
Series SOHC engines.
This includes popular engine codes like the D15B, D16Z6, and D16Y8 found universally across the following vehicle applications:
• Honda Civic (1988 - 2000)
• Honda Civic del Sol (1993 - 1997)
• Honda CRX (1988 - 1991)

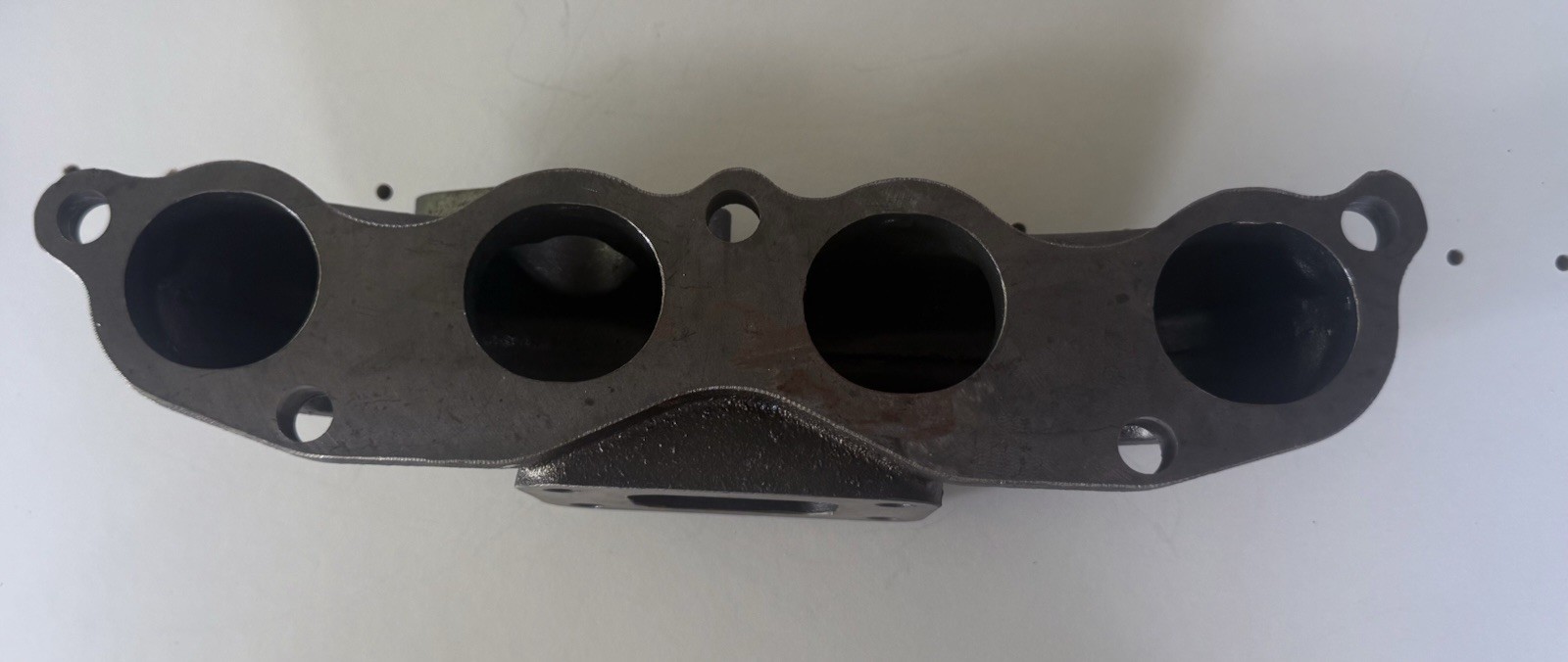

This specific casting is a "D-Series T3
Turbo Log Manifold" used for budget-conscious aftermarket turbocharger conversions. Complete Fitment
Specifications
Your exact inside-to-inside physical spacing measurement of 8 inches
strictly confirms this casting is designed for small-displacement single overhead cam (SOHC) engines [PartsGeek].
• Engine Series: Fits all Honda D-Series SOHC 4-cylinder engines (specifically the 1.5L and 1.6L
engine configurations such as the
D15B7 , D15B8, D16Z6, and
D16Y8). ®
• Target Vehicles:
Honda Civic (1988 - 2000 models across EF, EG, and EK chassis platforms). Honda Civic del Sol (1993 - 1997 models).
• Honda CRX (1988 - 1991 models).
• Acura EL (1997 - 2000 Canadian market regional models). •
• Flange Mating Footprints:
• Turbo Inlet Flange: Standard rectangular T3 / T3-T4 Hybrid
4-bolt footprint.
• Wastegate Port: Integrated 2-bolt diamond flange configured specifically to bolt up common aftermarket 35mm or 38mm
external wastegates.
