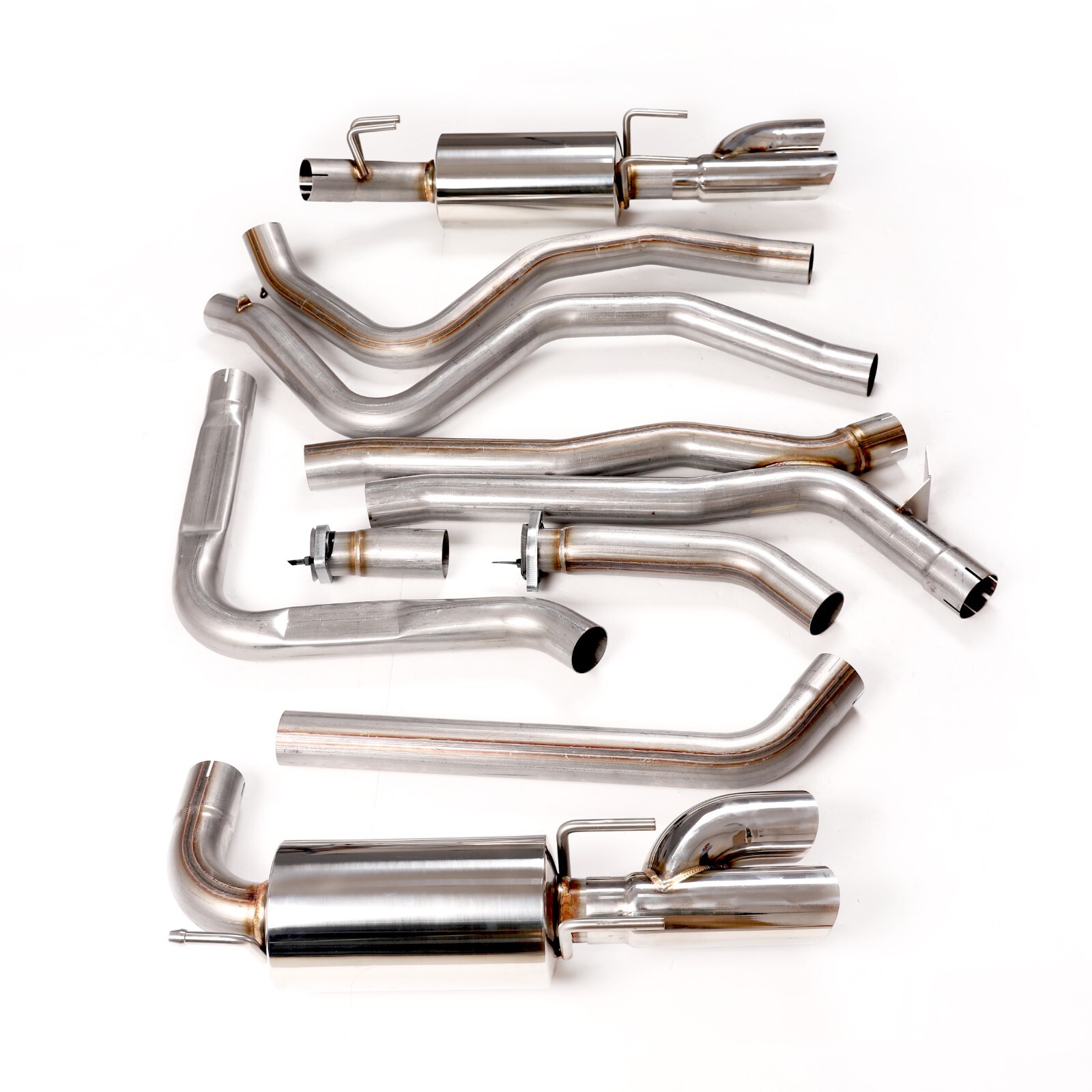

This exhaust system is 50-state legal for installation on any 1998-2002 GM F-body vehicle. 1998-99 model year vehicles will require cutting and welding to connect the system behind the passenger side catalytic converter; no cutting or welding is required for installation on 2000-2002 model year vehicles. Automotive work can be dangerous; work only on a clean, dry and level surface and use lifting/supporting equipment designed specifically for automotive work. If you are unsure of your capability, or that of your equipment, seek professional assistance to install these components. Features:
- 304 Stainless steel construction and Original Manufacturer quality hardware provide optimized fitment/finish and system longevity
- Connects to outlets of stock catalytic converters; 50-state legal for installation.
- Strategic use of bend geometry and clamp connection points provides maximized component /ground clearances
- Integrated crossover for optimized engine performance
- Polished 304SS mufflers and quad tips; protrusion and rotation of tips fully adjustable for best fit under all Camaro, Firebird Formula or Trans AM style rear bumpers
- Removal/modification of stock heat shields above rear axle not required
- Fully compatible with stock rear suspension panhard rod and brace; purchase/use of aftermarket suspension parts not required
- Compatible with all driveshafts up to 3.5” in diameter
- Manufacturer’s Limited Lifetime Warranty
- Aggressive to moderate sound This cat-back exhaust fits directly to the factory catalytic convertor pipe on your 1998-2002 Camaro/Firebird 5.7L
- This exhaust system is geometrically/functionally compatible with GM TH350, TH400, 700R4, 2004R, 4L60-4L70 and 4L80E/4L85E automatic or Tremec OE LS 4th -gen F-body T56 and aftermarket T56 Magnum manual transmissions.
- This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.
SPECS:
- Application:1998-2002 Camaro/Firebird 5.7L
- Product Type:Exhaust System
- Sound Level:Aggressive / Moderate
- System Type:Cat-back
- Tube Diameter:2.5"
- Type of Muffler:High Flow, Straight Through
- Emission Code:5
INSTALLATION:
1.Raise and support the vehicle.
NOTE: On 1998-99 model year vehicles, you must cut the outlet tube of the passenger side catalytic converter about 1.5” past the end of the converter to allow proper removal of the factory Y-pipe assembly.
14.Working from the front side of the axle, feed the right side over-axle tube over the axle and through the space between the upper heat shield and the panhard brace. See Figure 9.
15.Feed the left over-axle tube over the axle in the same manner as the right side over-axle tube. Bring the tab located near the tube outlet to rest against the backside of the corresponding tab attached to the right side over-axle tube. See Figures 10 and 11.
16.Attach the two tabs together with the (x1) supplied 1/4-20 bolt and (x1) lock nut.
17.Raise the front ends of the over-axle tubes up and connect them to the X-pipe outlet legs with the coupler clamps already in position on the X-pipe outlet legs. Orient them in such a way that the nuts on the clamps will be positioned on top of the tubes in the straight-up 12 O’clock position and be facing away from each other (pointed towards the sides of the car) when installed. Tighten the clamp nuts just enough to hold the basic position of the attached components at this time.
18.Attach the (x4) supplied rubber isolators to the supplied rear muffler hanger brackets with the supplied (x4) 1/2 x 1-3/4 flanged head cap screws and (x4) nylon lock nuts. Tighten the nuts enough to remove all slack/clearance between the brackets and the isolators, but not enough to begin to crush the rubber isolators. See Figure 12.
19.Use the supplied (x2) 3/8 x 1-1/4” flanged head cap screws and (x2) rectangular threaded backing bars to attach the muffler hanger bracket assemblies to the left and right frame rails just under the rear bumper. The threaded back-up bars need to be inserted into the interior of the frame rails through the square holes in the sides of the frame. Hold in place with your finger to allow the installation of the bolt that attaches each bracket to the bottom of the frame rails. See Figure 13.
20.Install the stock right side exhaust hanger that was removed from just behind the axle onto the doubled hanger rods attached to the inlet pipe of the right (passenger’s) side muffler. See Figure 14.
21.Place (x1) supplied 2.5” band clamp over the expanded inlet tube of the right side (passenger’s) muffler assembly. Insert the rear hanger rods into the rubber isolators on the right rear hanger bracket just attached under the rear bumper. Lift the muffler up and connect it to the outlet of the right side over axle tube. Do not fully tighten the clamp at this time.
22.Reattach the factory hanger bracket on the muffler inlet pipe to the frame rail with the factory bolts.
23.Attach the supplied left front muffler hanger bracket to the bottom of the left side frame rail, as shown in Figure 15. Use the removed factory fasteners for this purpose.
24.Place (x1) supplied 2.5” band clamp over the expanded inlet tube of the left side (driver’s) muffler assembly and insert the left muffler intermediate tube into the inlet of the muffler.
25.Insert the rear hanger rods on the left (driver’s side) muffler into the rubber isolators on the left rear hanger bracket under the bumper. Lift the muffler up and connect its inlet tube to the outlet of the left side over axle tube using (x1) supplied 2.5” band clamp. Do not fully tighten the band clamp at this time.
26.Couple the hanger rod attached to the rear of the left side muffler to the supplied hanger bracket attached to the left frame rail with the remaining (x1) supplied rubber isolator.
27.Place the remaining (x2) supplied 2.5” band clamps over the tip inlets and install the tip assemblies onto the muffler outlets. The tips should be installed so that the compound angle cut on their ends follow the angled contour of the bumper.
28.Adjust all system components and tighten the clamps. A few tips to remember to accomplish optimized fitment/clearances are as follows:
- Begin by tightening all clamps just enough to remove all “slop” from the system, but still allow the rotation of each tube to be adjusted without major force being required.
- The X-pipe assembly should lie flat in the tunnel when the installation is complete. ·
- Ensure the header collector adapter tubes are rotated over far enough for the O2 sensors to clear the floor.
- Pay special attention to the clearances obtained where the over-axle tubes route over the axle and past the panhard brace as the fitment/clearance constraints are greatest in this area.
- The amount of tip assembly protrusion beyond the rear bumper can be adjusted to suit your individual taste…tucking them in tight, or pulling them out to be more noticeable is completely up to each user.
- Perfect rotational alignment of the tip assemblies with each other can most easily be accomplished by laying a long piece of metal tubing or flat bar across the bottoms of the tips before tightening the clamps.
29.On 1998 and 1999 model year vehicles only, locate the best position for the rear O2 sensor in the tube behind the passenger side catalytic converter and drill a 3/4“ hole in that location. De-bur the hole and weld the included O2 sensor bung on the tube centered over the hole. Transfer the O2 sensor from the factory Y-pipe to the new installed bung and connect the sensor to the vehicle wiring harness. Disconnect the negative battery before performing any welding.
