Item Description | Vehicle Application | Shipping & Handling | Payment Details | Return Policy | About Us About this itemFX Racing Xtreme HDSS clutches are designed for the individual whose goal is to have an ultimate street/track clutch system. FX Racing Xtreme clutches only consist of the very best materials available today. The pressure plate is made from the forged ductile iron (3X stronger than the conventional cast iron pressure plate) to ensure consistent clamping force and the extra long life. HD friction material is used on all FX Racing Xtreme HDSS clutch kit to have higher burst strength and heat tolerance. The heavy-duty sprung center with heat treated spline hub and retainer rivets provide increase in strength and reliability. The FX Racing Xtreme pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing Xtreme pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

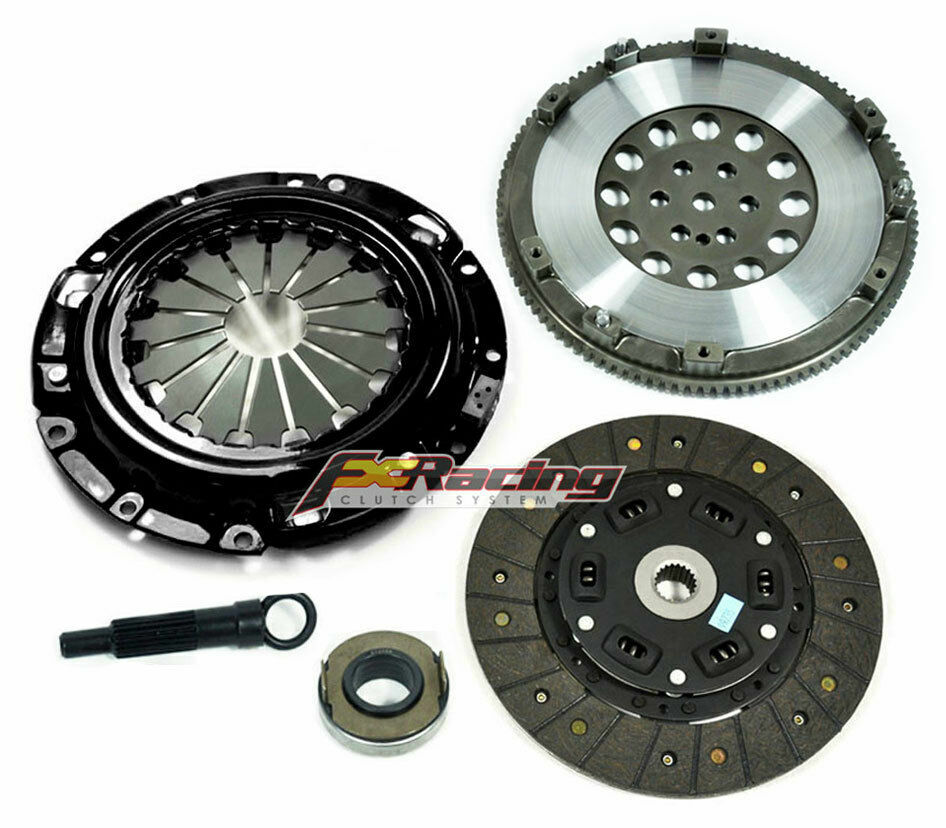

FX Racing Xtreme HDSS Street clutch kit includes:- FX Racing 4140 Chromoly Lightweight Flywheel
- FX Racing Xtreme 2200 lbs Pressure Plate
- FX Racing HD Carbon Kevlar Sprung Disc (225mm x 20 spline)
- Release Bearing
- Alignment Tool
- Installation Guide
FX Racing 4140 Chromoly Lightweight Flywheels are made from 4140 one-piece forged chromoly steel. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the air flow to improve the cooling of the clutch. The ring gear teeth are milled onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel which has the possibility of separating from the flywheel. All FX Racing Chromoly flywheels have passed engineering tests to 12,000 rpm.
- Ultra heavy-duty and weighs only 11.5 lbs
- Meets or exceeds SFI 1.1 certification
- Made from 4140 forged chromoly steel (2X stronger than billet steel)
- FX Racing Lightweight Chromoly flywheels incorporate special design features to enhance the airflow for improved clutch cooling
- CAD designed, CNC machined and computer balanced
Horsepower Rating: 353 HP / Torque Capacity: 322 ft/lbsFXX-52000R1-SS; 52000AX6-HT #27
Back to TopVehicle Application1991 - 1996 Dodge Stealth Base, R/T, ES (3.0L 6cyl SOHC, DOHC Non-Turbo)
1990 - 1998 Eagle Talon TSi, TSi AWD (2.0L DOHC Turbo, FWD; AWD)
1990 - 1999 Mitsubishi Eclipse GS-T, GSX (2.0L DOHC Turbo, FWD; AWD)
1996 - 1999 Mitsubishi Eclipse Spyder GS-T (2.0L DOHC Turbo FWD)
1996 - 1999 Mitsubishi Eclipse Spyder GS (2.4L 4cyl SOHC Non-Turbo FWD)
2000 - 2005 Mitsubishi Eclipse RS Coupe, Eclipse Spyder GS (2.4L 4cyl SOHC Non-Turbo FWD)
1991 - 1999 Mitsubishi 3000GT Base, SL, Spyder SL (3.0L 6cyl SOHC, DOHC Non-Turbo)
1990 - 1994 Plymouth Laser RS Turbo, RS Turbo AWD (2.0L DOHC Turbo, FWD; AWD)
