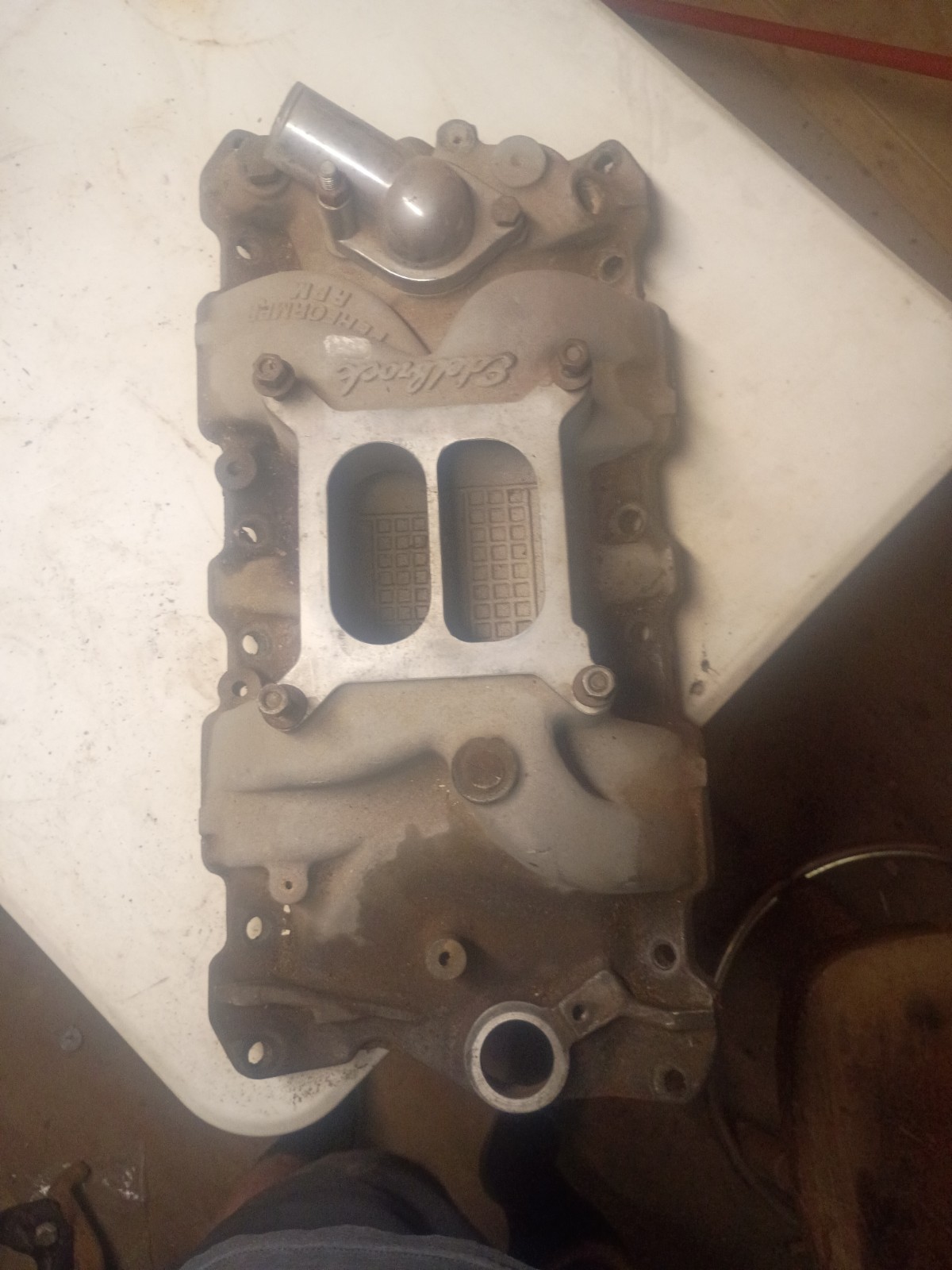

Engine Intake Manifold-Base Edelbrock 7101 For Sale - New and Used

The Edelbrock 7101 is a high-rise, dual-plane aluminum intake manifold engineered for high-performance street or marine applications. It is widely popular because it balances the top-end horsepower of a single-plane manifold with the crisp throttle response and low-end torque of a dual-plane design. [1, 2, 3]

• Engine Compatibility: Fits 1955–1986 Chevrolet 262–400 c.i.d. Small-Block V8 standard-deck engines. [1]

• Operating RPM Range: Optimized for high performance between 1,500 to 6,500 RPM. [1]

• Carburetor Style: Standard square-bore flange (accepts standard 4150-style carburetors like Holley, Quick Fuel, or Edelbrock AVS series). [1]

• Design Layout: Dual-plane layout featuring a 180-degree firing order with larger plenums and runners to complement high-output configurations (free-flowing exhaust, high-lift camshafts). [1]

• Cylinder Head Fitment: Compatible with standard layout factory cast-iron configurations or Chevrolet Bowtie heads; will not fit 1987-and-later cast iron center-bolt intake angles or Vortec heads. [1]

• Additional Provisions: Built to accept standard H.E.I. distributors, late-model water necks, alternators, and A/C brackets. It includes a cast boss provision that can be machined open if an oil fill tube is desired

---
