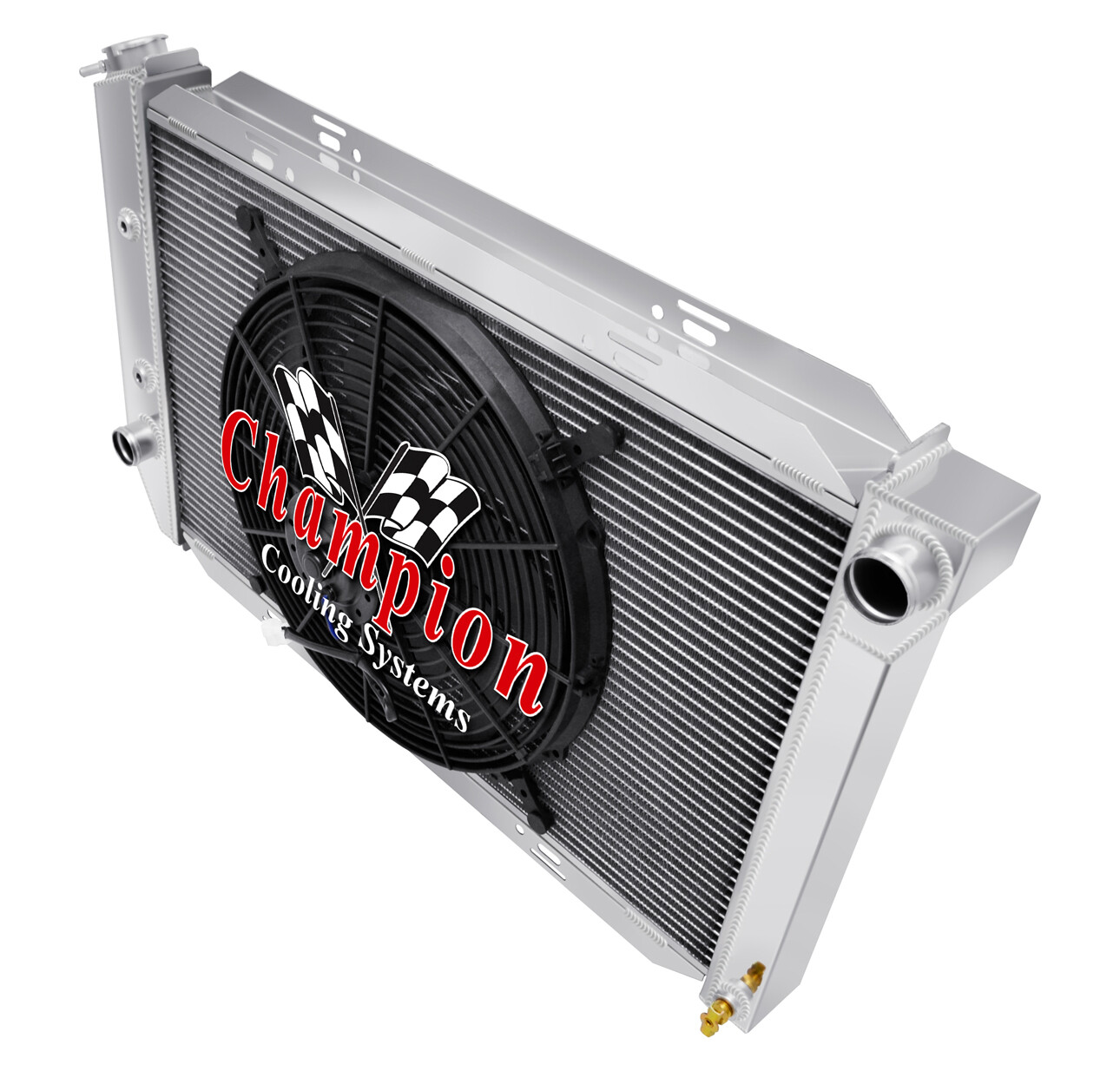

ER Champion 3 Row Radiator W/ 16\" Fan for 1969 - 1971 Ford LTD V8 Engine #CC381 For Sale - New and Used

Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 17.875\" x 26\" - Overall (H x W): 20\" x 31.625\" - Hose Locations (In x Out): Pass x Driver - Hose Fittings (In x Out): 1.5\" x 1.5\" - TOC: 1/8-27NPTPlease click on the \"Read more\" link below to view a complete item description with product videos and additional items to upgrade your cooling system.

PART Us Part Information Related Items Need A Different Set Up? (Click A Photo Below) Genuine Champion Cooling Systems Part #CC381This radiator is designed for either a 7.0L(428ci) V8, 7.0L(429ci) V8 or a 6.4L(390ci) V8 engine. Features

• Higher density core: cooling rows are spaced 3/8\" apart: giving you 25% more rows within the core than other aluminum radiators sold on and 35% more rows than OEM copper.
• Aluminum dissipates heat more efficiently than copper or brass.
• 14-16 cooling fins per inch (42 per square inch) giving you approximately 1500 more cooling fins than other aluminum radiators and approximately 3000 more than OEM copper radiators.
• Lighter weight.
• Outperforms other 2, 3 and 4 row copper radiators.
• High performance appearance.
• You get \"BIG BLOCK COOLING\" and \"PEACE OF MIND\" when you drive your car with a Champion Cooling Systems radiator.
• You could easily spend $400 - $1,000 more for a radiator of similar quality.

Specifications

• Down Flow Or Cross Flow Type: Cross Flow
• Mounting Type: Saddle
• Tank Material: Aluminum
• Core Material: Aluminum
• Overall Height: 20
• Overall Width: 31 5/8
• Core Height: 17 7/8
• Core Width: 26
• Inlet Location: Passenger
• Inlet Diameter: 1 1/2
• Outlet Location: Driver
• Outlet Diameter: 1 1/2
• Core Row Quantity: 3 Row
• Transmission Oil Cooler Fitting Type: 1/8-27NPT
• Internal Transmission Oil Cooler: Yes
• Filler Neck Attached: Yes
• Core Thickness: 2 1/4
• Core Tube Width: 0.63
• Tank Width: 2.5

This package includes a 3 Row All Aluminum Radiator and a 16\" Economy Series Electric Fan. Shipping Shipping

Shipped within 24 hours from when payment is received Monday - Friday (excludes Holidays and weekends).

Tracking number is uploaded to and sent to your email once items are shipped.

Free ShippingDomestic: 48 states

FedEx Ground

(3-5 Business Days)

Additional Shipping (Charges may apply)

Alaska & Hawaii, Puerto Rico

Payment Guarantee Policies

\"Our goal is a 100% satisfaction. If you feel it\'s less than 100%

positive experience, please contact us. We will work out a 60 days of receipt of your order, you may return radiators that:

• Are in their original packaging
• Have not been used, or disassembled
• Are not damaged due to improper installation
• Do not have missing parts, hardware or instructions
