Steering wheel control Important: Check Installation Size Before PurchaseThe UX7A Plus is designed around a standard Double DIN opening of 178 × 100 mm.
Installation size:
- Width: 178 mm
- Height: 100 mm
- Depth: 80 mm
Screen / panel size:
- Width: 255 mm
- Height: 155 mm
Because the 10.1" screen is larger than the actual Double DIN opening, please also check that there is enough space around your dashboard for the display.
Make sure it will not interfere with:
- Air vents
- Climate-control buttons
- Hazard switch
- Dashboard trim
- Other nearby controls
Not for Single DIN Dashboards
The UX7A Plus is a Double DIN car stereo.
If your factory radio opening is approximately 178 × 50 mm Single DIN, this unit is not suitable without substantial dashboard conversion.
For Single DIN vehicles, please consider a compatible Eonon Single DIN stereo instead.
Installation Kit May Be Required
If your vehicle does not have a standard 178 × 100 mm Double DIN opening, an additional vehicle-specific:
- Double DIN fascia / mounting kit
- Wiring harness
- Installation adapter
may be required.
These parts are not included unless specifically stated.
Searching by your vehicle make + model + year + 2 DIN kit can help identify a suitable mounting solution.
Check the Factory Wiring Connector
For the easiest installation, the factory wiring should use a compatible ISO standard connector.
If your vehicle does not use an ISO connector, you will need a suitable vehicle-specific ISO wiring harness adapter.
Please check both the dashboard opening and wiring connector before purchase.

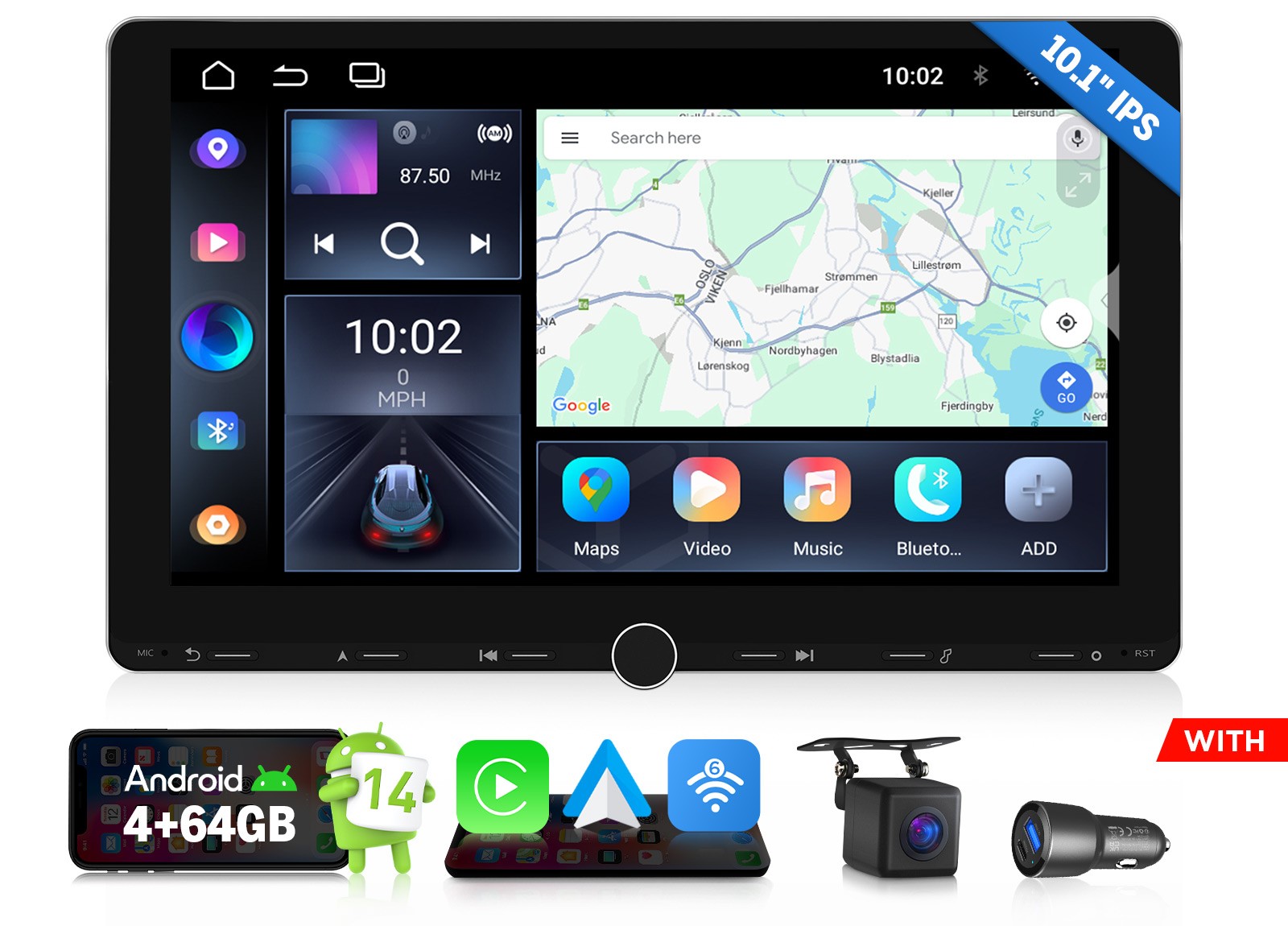

Adjustable 10.1" IPS Touchscreen
The large 10.1" 1280 × 720 IPS display gives navigation, music and apps more room than a conventional 7" Double DIN screen.
The screen position can be adjusted to better suit different dashboard layouts and viewing angles.
This is particularly useful where a fixed screen would sit too high, low or close to surrounding controls.
Physical Buttons & Volume Knob
Unlike touchscreen-only units, the UX7A Plus includes physical controls and a rotary volume knob along the lower edge of the screen.
This gives you quick access to common functions without relying entirely on the touchscreen.
Wireless Apple CarPlay & Android Auto
Connect a compatible smartphone wirelessly and access frequently used phone functions directly from the 10.1" display.
Both wireless and wired Apple CarPlay / Android Auto are supported for compatible:
- Google Maps and navigation apps
- Music and podcasts
- Hands-free calls
- Messages
- Siri
- Google Assistant
Wireless operation means you do not need to connect your phone with a cable every time you drive.
Android 14 + 4GB RAM / 64GB Storage
The UX7A Plus runs Android 14 on an RK3562 quad-core processor (4 × Cortex-A53 up to 2.0GHz) with 4GB RAM and 64GB internal storage.
Use compatible Android apps directly from the stereo for navigation, media and other everyday functions.
Also supported:
- Split-screen multitasking
- OTA firmware updates
- Custom boot logo
- Changeable wallpapers
- 3 built-in UI themes
- 1-second fast boot support
WiFi 6 + Bluetooth 5.4
Built-in WiFi 6 supports 2.4GHz and 5GHz networks, allowing the stereo to connect to a smartphone hotspot or another available Wi-Fi source.
Bluetooth 5.4 supports compatible phone and wireless audio connections.
Please note: Built-in 4G LTE is not included. Mobile-network access requires a compatible external 4G dongle.
Built-In GPS Navigation
The integrated GPS receiver lets compatible navigation apps run directly from the stereo.
You can use:
- Online navigation
- Compatible offline maps
- Navigation while playing music
- Split-screen navigation and media
Downloaded offline maps can also be used without an active mobile-data connection.
48-Band DSP Audio Control
Built-in DSP gives you more control over how your audio system is tuned.
Features include:
- 48-band equalizer
- Custom and preset EQ modes
- HPF / LPF adjustment
- Time alignment
- Subwoofer output
- 5-channel preamp outputs
- 4 RCA audio outputs
- 25W RMS manufacturer-rated power
- Up to 4 × 45W maximum amplifier output
Adjust bass, frequency balance and speaker output to suit your vehicle and audio setup.
For additional amplification and tuning, the optional Eonon A304 DSP Amplifier is available separately.
Steering Wheel Control Support
The UX7A Plus supports compatible analog steering wheel controls.
Vehicles using digital/CANBUS steering wheel controls may require an additional vehicle-specific adapter or decoder.
Compatibility depends on the original vehicle electronics.
Camera Support
Add compatible camera equipment for greater visibility when parking or reversing.
The UX7A Plus supports:
- Front camera input
- Rear-view camera input
- Automatic reverse display
- Parking guidelines
Camera compatibility depends on the camera system and vehicle wiring.
Split Screen & Wireless Screen Mirroring
Split-screen mode allows compatible functions such as navigation and music to remain visible together.
Wireless screen mirroring is also supported for compatible iOS and Android devices.
Note: Some DRM-protected streaming services may restrict screen mirroring.
AM/FM Radio & Optional DAB+
Use traditional AM/FM radio without relying on mobile data.
For supported regions, DAB+ digital radio can be added using an optional compatible Eonon DAB+ module.
Media & Connections
Supported connections include:
- 3 × USB inputs
- 2 × audio inputs
- 4 × RCA audio outputs
- 5-channel preamp output
- Dedicated subwoofer preamp output
- 1 × video input
- No AUX input
- No video output
The system supports common formats including MP3, FLAC, AAC, MP4, MKV, JPEG and PNG, with up to 1080P video decoding.
Short Chassis Design
The compact rear chassis reduces the amount of space required behind the dashboard compared with many traditional full-depth Double DIN radios.
This can make routing wiring and fitting adapters easier in dashboards where rear clearance is limited.
Actual installation space still depends on the vehicle.
Optional Eonon Accessories
A100 Dash Camera
Add compatible front driving recording.
A0125 / A0127 Cameras
Add compatible parking or reversing camera functionality.
V0056 Bluetooth OBD2 Scanner
View supported real-time vehicle diagnostic information through compatible Android apps.
A503/DX2/DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.
A304 DSP Digital Amplifier
Additional amplification and tuning for compatible upgraded audio systems.
Optional accessories are sold separately unless included in the selected package.
Why Choose the UX7A Plus?
The UX7A Plus is designed for drivers who want the flexibility of a universal Double DIN head unit without settling for a small fixed display.
It combines a 10.1" adjustable touchscreen, physical controls, wireless CarPlay and Android Auto, Android 14 apps, GPS navigation and detailed DSP audio adjustment in a compact short-chassis design.
For compatible dashboards, it offers a practical way to modernise an older factory radio while leaving flexibility for vehicle-specific mounting and wiring adapters.
Before Ordering, Please Check
1. Confirm your dashboard is Double DIN, ideally 178 × 100 mm.
2. Do not select this unit for a standard 178 × 50 mm Single DIN opening.
3. If your dashboard is not 178 × 100 mm, a separate mounting kit may be required.
4. Check whether your factory wiring uses a compatible ISO connector; otherwise an ISO harness adapter is required.
5. Confirm there is enough room for the 255 × 155 mm screen without blocking vents or dashboard controls.
6. Digital steering wheel controls may require an additional adapter.
Checking the installation opening, wiring connector and available screen clearance before purchase is the most important step in confirming fitment.
āSpecification
- Installation size: 178mm(Width) * 80mm(Depth) * 100mm(Height)
- Panel size: 255mm(Width) * 155mm(Height)
- Applicable Car Models: Universal 2 Din Car Radio
- Operation system: Android 14
- OTA Firmware Update: Yes
- Processor: RK3562
- CPU Architecture: 4-core([email protected])
- RAM: 4GB
- Storage: 64GB
- Display: 10.1" IPS Touchscreen
- Resolution: 1280*720
- Operating voltage: DC12V
- Physical button/knob: Yes
- CarPlay: Wired & Wireless
- Android Auto: Wired & Wireless
- Split-screen multitasking: Yes
- Adjustable viewing angle: Yes
- Screen mirroring: Yes
- 1s fast boot: Yes
- Steering wheel controls: Yes
- Key button color: Variable
- Wi-Fi: Support 2.4G/5G & Wi-Fi 6 ready
- 4G feature: No, 4G dongle needed
- Custom boot logo & changeable wallpapers: Yes
- Built-in UI themes: 3
- Built-in DSP: Yes
- Built-in power amplifier: 4-channel audio output and 1 subwoofer audio output
- EQ bands: 48
- EQ modes: Custom Standard Popular Rock Classical Jazz
- HPF/LPF adjustment: Yes
- Video input: 1
- Video output: No
- Audio input: 2
- Audio output: 4 RCA
- AUX input: No
- USB input: 3
- RMS power (manufacturer): 25W
- Max amplifier output: 4*45W
- Preamp outputs: 5-channel
- Sub preamp outputs: Yes
- Preamp voltage: 1.0V
- Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 1080P video decoding
- Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
- Image Formats: Supports JPEG, BMP, PNG, and more
