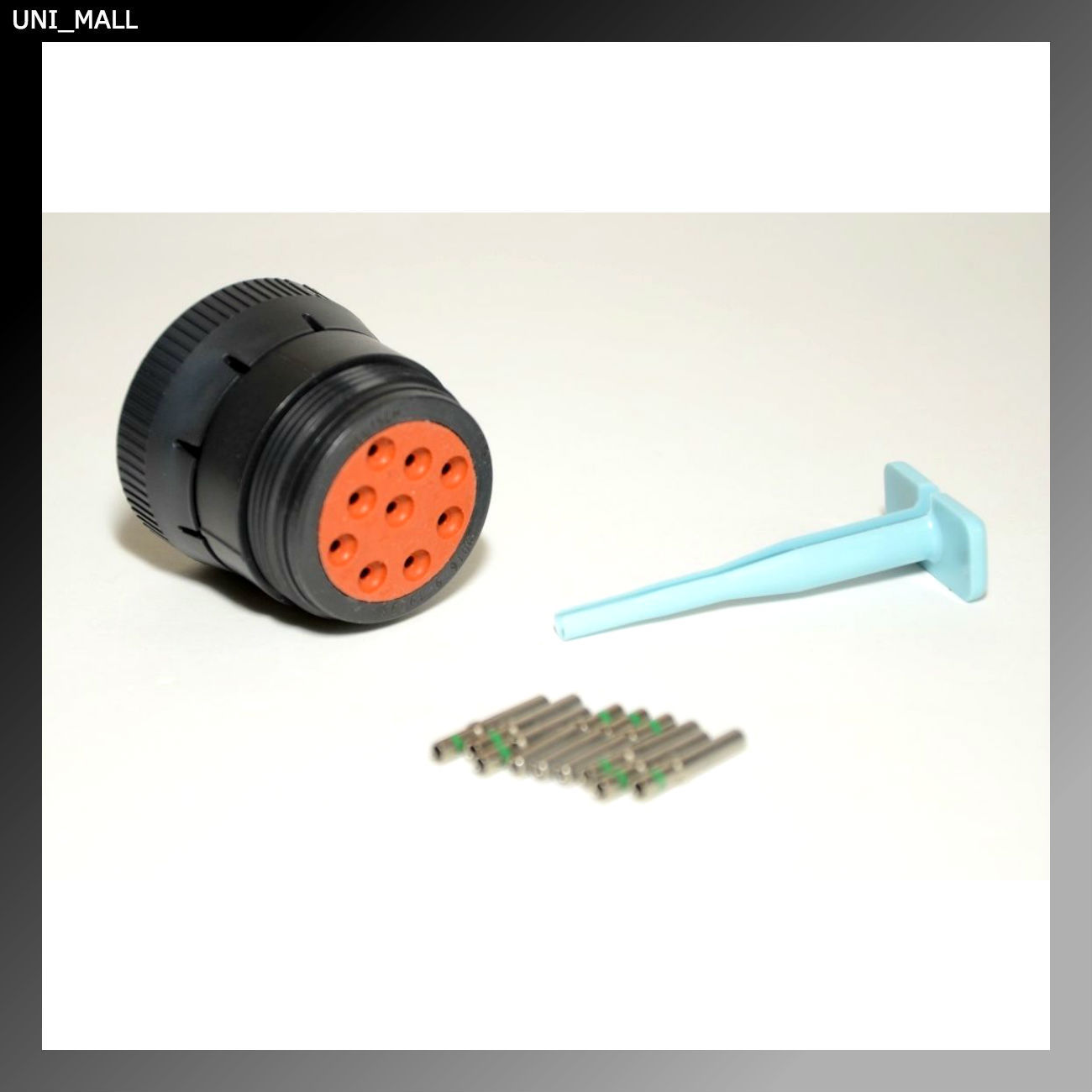

Deutsch HD16 9-Pin Genuine Female Connector & Tool, 14-16AWG Solid sockets, USA For Sale - New and Used

Kit Content:

• 9 x 0462-209-16141 (14 AWG Female Solid contacts)
• 1 x HD16-9-1939S (connector)
• 1 x 0411-310-1605 (contact removal tool)

The HD10 Series is heavily used for diagnostic connectors, eliminates problems associated with assembly and maintenance time, and is designed for long service life.
Country of Origin: USA
Performance Specifications:Temperature:Operating at temperatures from -55° C to +125° C continuous at rated current.Durability:No electrical or mechanical defects after 100 cycles of engagement and disengagement.Vibration:No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.Physical Shock:No unlocking, unmating, or other unsatisfactory result during or after 50 G’s in each of three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond. MIL-STD 202, Method 213, Condition “C”.Fluid Resistance:Connectors show no damage when exposed to most fluids used in industrial applications.Insulation Resistance:1000 megohms minimum at 25° C.Moisture Resistance:Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.Dielectric Withstanding Voltage:Current leakage less than 2 milliamps at 1500 VAC.Thermal Cycle:No cracking, chipping or leaking after 20 test cycles from -55° C to +125° C.
