Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.
Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 63 mm x 57.8 mm stroke, 15 mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Engine: 4 stroke, 2 valve
Displacement: 180cc
Bore Type: Standard Bore
Bore diameter: 63 mm
Stroke: 57.8 mm
Pin diameter: 15 mm
Pin Overall Length: 51mm
Replacement Part Number:
Cylinder: 12100-427-010
Cylinder Base Gasket: Head Gasket: 12251-427-020,12251-427-P00
Piston: 13101-958-000
Pin, Piston: 13111-425-000
Piston Ring Set (Std): 13011-427-000
Circlips, piston (2): 94601-15000
Valve Stem Seal (2): 12208-MC0-003
(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year:
Fit for Honda XL185S 1979-1983
Fit for Honda ATC185 1980
Fit for Honda ATC185S 1981-1983
This kit will work on XR200/ATC200, but only 180cc and not 195cc like OEM.
Pre-bored and honed to 63mm and NO hole for cam chain adjuster.
Fit for Honda XR200 1980-1984 (2 valve engines)
Fit for Honda XR200R 1981-1983, 1986-2002 (2 valve engines)
Fit for Honda XL200R 1983-1984 (2 valve engines)
Fit for Honda TLR200 1986-1987 (2 valve engines)
Fit for Honda ATC200 1981-1983
Fit for Honda ATC200S 1983-1986
Fit for Honda ATC200M 1984-1985
Fit for Honda ATC200E Big Red 1982-1983
Fit for Honda ATC200ES Big Red 1984
Fit for Honda TRX200 1984
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

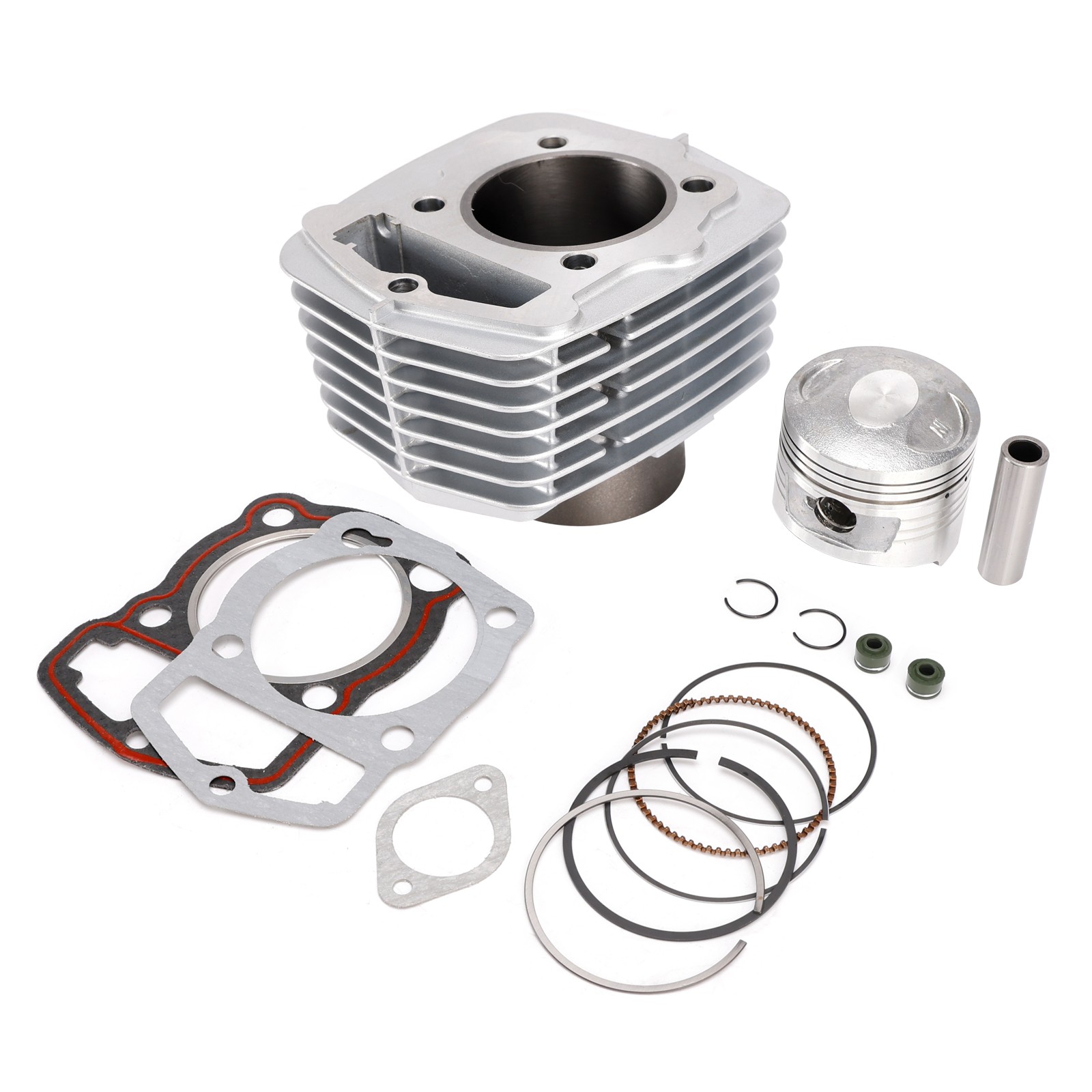

Package Includes:
1x 63mm Cylinder
1x Piston
1x Piston Ring Set
1x 15mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Cam Chain Adjust Gasket
2x Valve Stem Seals
(Comes exactly as pictured.)
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
