Send me your Model & Center Console Picture
DESCRIPTIONPAYMENTSHIPPINGRETURN POLICYCONTACT US Cool & Heat A/C Kit Underdash Electric 12V Air Conditioner Universal Auto Car US
Dual-Mode Underdash AC Kit – Cool & Heat for RV, Van, Truck (Universal Fit – IS PARKING AIR CONDITIONER ?
The parking air conditioner is a kind of in-car air conditioner. It refers to the equipment that uses the on-board battery DC power supply (12V) to make the air conditioner run continuously when parking and waiting and resting, and to adjust and control the temperature, humidity, flow rate and other parameters of the ambient air in the car, so as to fully meet the comfort cooling needs of the truck driver.
Normally drivers leaving the engine running for hours to use the air conditioner during parking or rest time at night, it is bad for the environment and tons of fuel wasted, it also wears down the engine faster. Parking air conditioner works with truck battery power without engine on which can save energy and fuel and at same time provide safe and comfortable environment for driver. Fuel,Energy And Money Saving.
Digital frequency conversion control, more efficient and more energy saving. Use energy saving mode when you sleep at night, it can run continuously 6 to 8 hours. Use super mode in hottest hours, cooling rapidly and stronger air supply.
MULTI INSTALLATION WAYS
The 12V electric air conditioning system have multi installation ways to ensure it can be suitable for most vehicles in the market. It includes:
1) ro oftop mounted air c onditioner for van, truck, commercial vehicles, special vehicle, trailer, earth-moving machine, motorhome, RV (re creational vehicl e)
2) bac k - wall mounted air c ondition er for truck, tractor, trailer, heavy duty truck, light truck, truck cab, truck sleeper, sleeper cab.
The truck air con diti oner is divided into two types: Rooftop Air Conditioner/ split type model. Very easy to install.
The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside.
Heating principle ：
Using the engine coolant to heat the air vent />
Parking air conditioner: a kind of in-car air conditioner. It refers to the equipment that uses the on-board battery DC power supply (12V) to make the air conditioner run continuously when parking and waiting and resting, and to adjust and control the temperature, humidity, flow rate and other parameters of the ambient air in the car, so as to fully meet the comfort cooling needs of the truck driver.
Complete and universal compact cooling solution: this is a complete, ready-to-install under-dash air conditioning system designed for universal application. It offers a compact, self-contained cooling and heating solution for vehicles that lack factory air conditioning.
Powerful performance with flexible installation: despite its compact size, this unit delivers substantial cooling power, capable of effectively cooling small cabins, vans, or truck interiors. Its universal under-dash design allows for flexible mounting positions beneath the dashboard, maximizing space utility and minimizing permanent alterations to the vehicle's interior.
Premium components for reliability & comfort: the system utilizes high-efficiency evaporator and condenser coils, often made from aluminum for optimal heat transfer. It uses R134a refrigerant and is built with quality material to ensure longevity and reliable performance under various conditions.
Digital frequency conversion control: more efficient and more energy saving. Use energy saving mode when you sleep at night, it can run continuously 6 to 8 hours. Use super mode in hottest hours, cooling rapidly and stronger air supply.
Material: aluminum, metal
Cooling adjustable temperature range: 69℉ to 87℉
Rated Voltage (V): 12VDC
Current (A): 33A-66A
Rated Power (W): 792W
Rated Cooling Capacity (W): 1800-2000W
Refrigerant：R134A
Refrigerant Oil：POE68
Charging Quantity of Refrigerant ( g)：600g
Power Cord Specification (mm2)：3 meters (8mm²)
Type of heating and cooling: Cooling only / Cooling & heating
optional
Application: Air-condition
Refrigerant: R134a
Compressor cooling:Inhalation refrigerant cooling
Displacement: 12ml/re
Refrigerator oil: EMKARATE RL68H/100ml
Electric compressor data:
Voltage: DC 12V
Current: 63A
Rated speed: 2100rpm
Speed range: 1500rpm - 2100rpm
cooling capacity:1000-2000W
Rated power: 650w
Condensing temperaturerange: 26.7℃ - 68℃
Evaporating temperature range: -10℃ - 12.5℃
Oil: RL68H/130ml
Scroll compressor Specification:
Electronic fan connection harness: 2 meters
Internal machine connection harness: 3 meters
Main power harness: 3 meters
Fluorine-resistant hose:
3 points (thin tube) = 3 meters
4 points (thin tube) = 2 meters

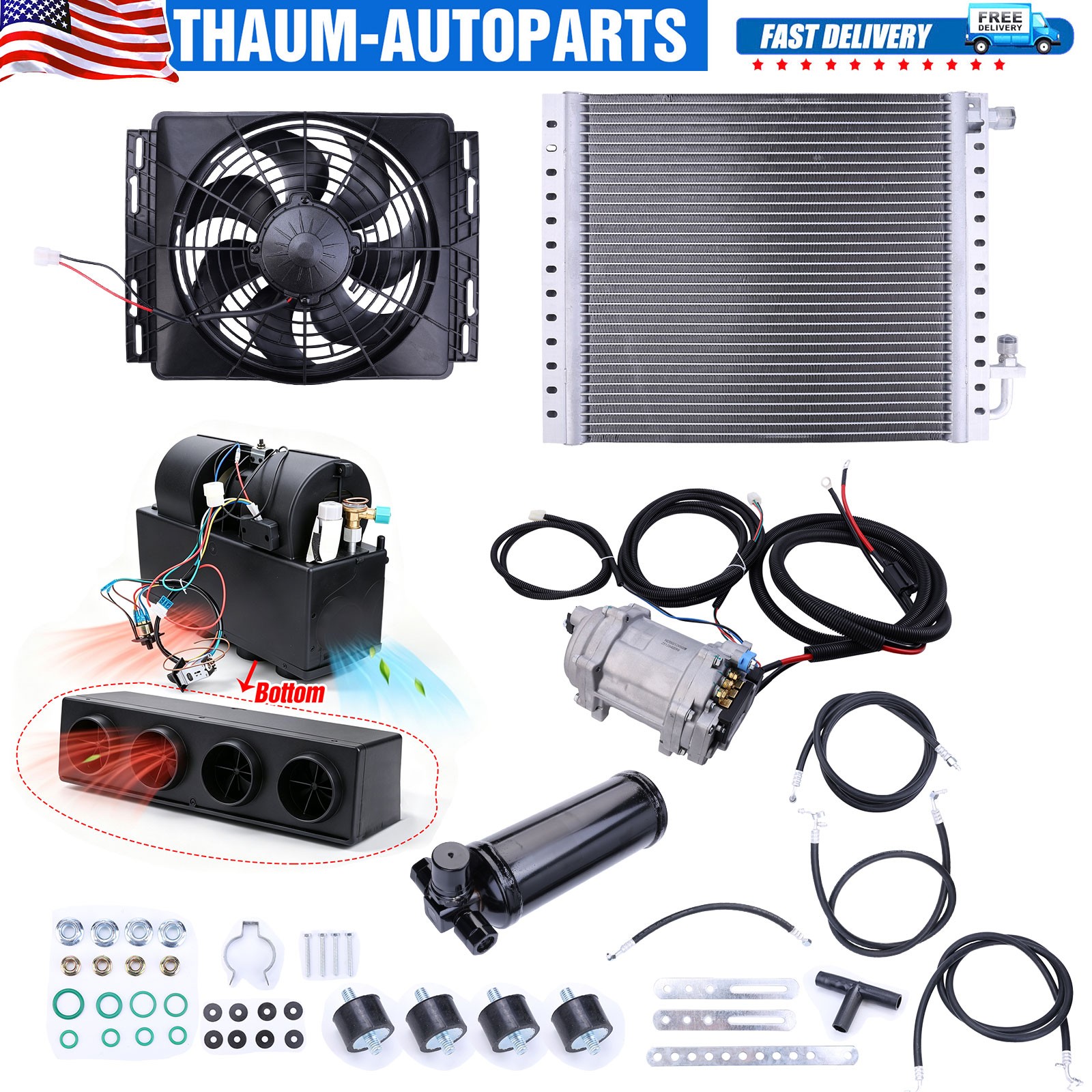

5 points (thin tube) = 3 />Truck, Tractor, Digger, Trailer,Excavator, Agricultural List: (1 x Parking air conditioner Kit)
1*Condenser*Fan*Dryer Bottle（Dimension：14*18inch with bottle，OR interface）
Fan（14*18-12V ，including 2P mother shell + 6.3 inserts) with Electric Compressor
1.Wiring Harness
1*Fittings total leakage of the compressor is not greater than 5g/year.
2.The noise is not greater than 74dB in rated speed.
3.Insulation resistance must be greater than 20MΩ .
4.The tolerance of None remarked dimensions
may be accordance with GB1804-m.
5. The performance of all unmentioned are in accordance with
GB/T />
Item SpecificsMounting Style :Bolt-On Assemble kitCondensor Size :14*18inchPower Source :ElectricItems Included :Dryer Mounting HardwareManufacturer Part Number :Universal A/C Kit Underdash Air Conditioning Conditioner Electric AC Kit 12 volt air conditioner kit under dash air conditioning 12v air conditioner kit 12v ac compressor kit 12v parking air conditioningCompressor :SCROLL COMPRESSORMaterial :Aluminum MetalCooling Adjustable Temperature Range :69℉ to 87℉Feature :Heat&CoolBrand :UnbrandedFunction :Heat & CoolType :A/C Complete KitInterchange Part Number :Electric Under dash Air Conditioner 12V Electric Air Conditioner Underdash Air Conditioner 12V Car AC 12v air conditioner 12v air conditioning electric ac compressor 12v electric ac electric car A/C air conditioner compressorManufacturer Warranty :5 YearsHeating principle :Using the engine coolant to heat the air vent coreVoltage :DC 12vFitment :Car,Truck；Van ；Pickup；motorhome etcFeatures :100% Leak Tested Durability Tested No Drilling/Modification Needed Patent PartUniversal Fitment :YesCountry of Origin :ChinaSpecial Feature :Fast Cooling, Heating & Cooling Function, Inverter CompressorOE/OEM Part Number :for RV Van TruckSuperseded Part Number :for RV Van Truck
