Item 276317403928

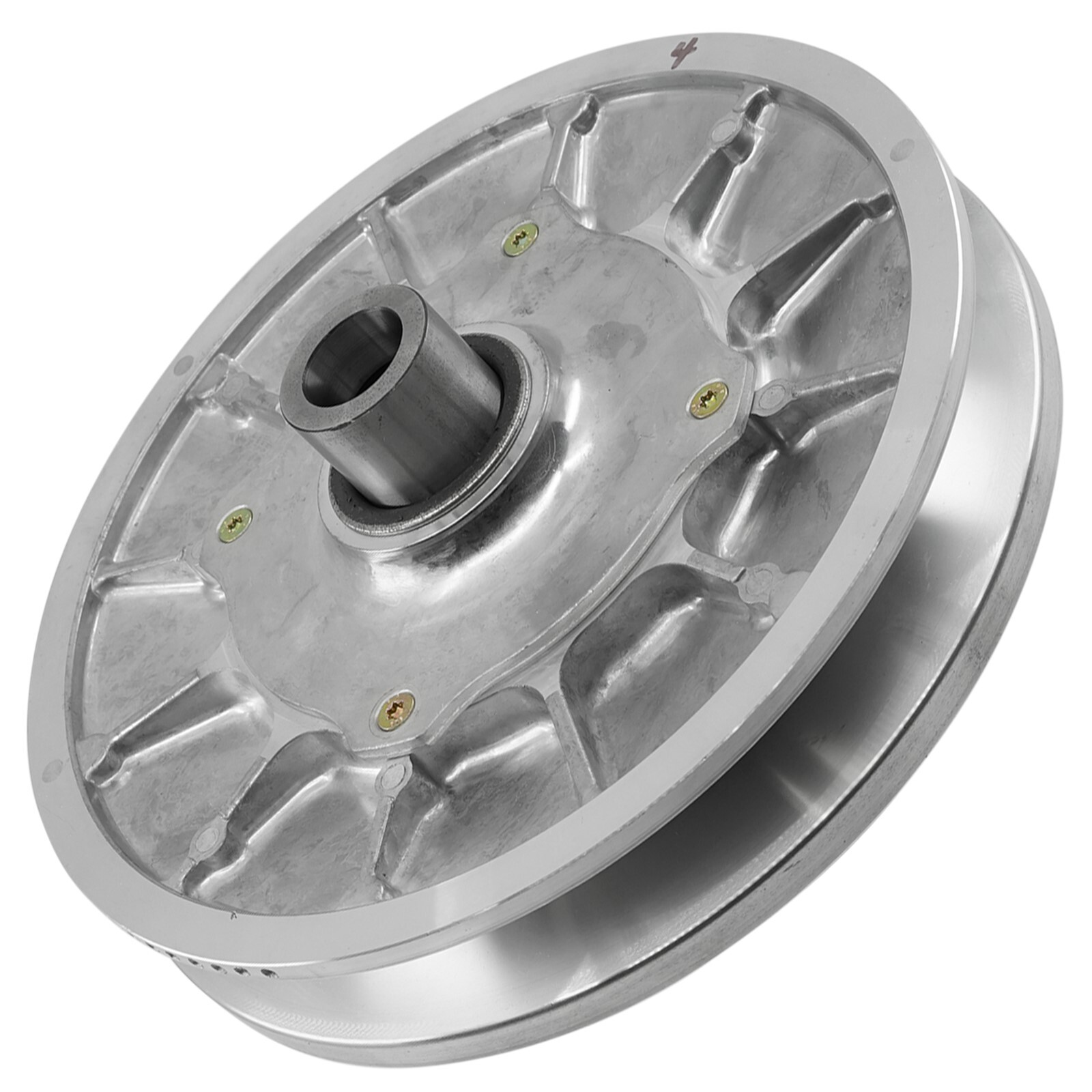

Premium Quality Replacement PartTied Roller Secondary Clutch
For Polaris Models:
Sportsman 700 2004-2006
Sportsman MV7 2005
Sportsman 500 HO 2007-2009 2012-2013
Sportsman 500 TOURING HO 2011-2012
Sportsman X2 500 2007-2009
Sportsman X2 500 EFI QUAD 2008-2009
Sportsman 570 EFI 2014
Sportsman 500 Forest 2013
Order Includes: 1x Secondary Clutch :1322706 1322419 1322548 1322551
Outer Diameter: 244mm | 9.6 \"Inner Diameter : 23.3mm | 0.91 \"Height : 160mm | 6.2 \"
Installation tip: When installing clutch rnake sure to place the vehicle in High, Low, or Reverse to hold the transmission input shaft from spinning. This will allow easy alignment of the clutch onto the transmission splines. Torque secondary clutch retaining bolt to 17ft/lbs. We recommends Polaris High Performance Belt #3211162 for proper opertion. Make sure the RZR is in Park and then rotate the secondary clutch by hand until the belt is at full ride height in the secondary clutch. Check the belt alignment in the primary clutch. The belt should be directly inthe center of the sheaves on the primary clutch with a small amount of gap on both sides of the belt. If the alignment is off, remove the belt, secondary clutch and add / remove clutch alignment shims on the shaft behingd the secondary clutch.Belt Removal / Clutch Compression Tool is highly recommended.
