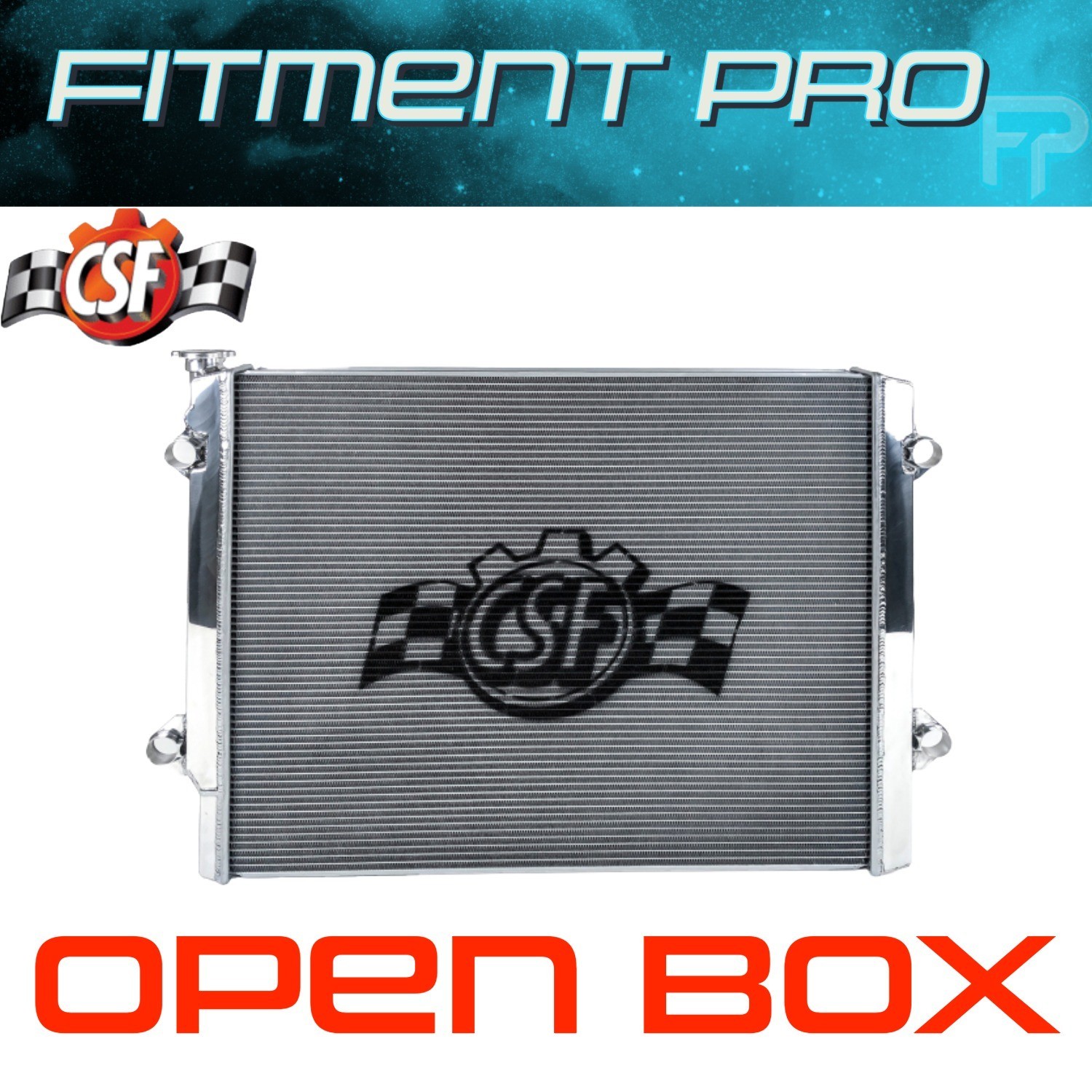

CSF High-Performance All-Aluminum Radiator
2005+ 3.5L and 2.7L 2005-2015 4.0L and 2.7L Toyota Tacoma RadiatorPart Number: 7092
Item Condition: Damaged during transit. Dent on component. See images for reference.
PRODUCT OVERVIEWCSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 2nd/3rd Gen Tacoma running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
Features and Benefits2-Row, 42mm Ultra-High Performance Radiator6.5mm Tall Multi-Louvered Fins with CSF's Exclusive B-Tube TechnologyCNC Machined Mounting Brackets100% All Aluminum TIG Welded ConstructionTrue "Drop-In" Fit with no Modifications NecessarySmooth Satin Finish
Product DetailsCore Type:Drop-In Fit InstallationCoolant Hose Inlet Connection Type:OE Type ConnectionCoolant Hose Outlet Connection Type:OE Type ConnectionCore Height:25.625 in.Core Row Quantity:2Core Thickness:1.625 in.Core Width:21.625 in.Down Flow Or Cross Flow Type:Cross FlowFrame Included:NoGrade Type:PerformanceInlet Connector Type:Slip OnInlet Diameter:1.375 in.Inlet Location:Top RightInternal Engine Oil Cooler:NoInternal Transmission Oil Cooler:YesMounting Hardware Included:NoMounting Type:Mounts with OE HardwareOutlet Connector Type:Slip OnOutlet Diameter:1.375 in.Outlet Location:Bottom LeftProp 65 Yes/No:NoRadiator Cap Included:YesTank Material:AluminumThermostat Included:No
Disclaimer for Open Box, Scratch, and Dent Automotive PartsAll items listed as "Open Box," "Scratch and Dent," or "As-Is" are sold at a significant discount due to their condition. These items may include cosmetic imperfections such as scratches, dents, or signs of prior handling. Some items may be missing original packaging, accessories, or hardware.Please review all provided photos and the item description carefully before purchasing, as we strive to show the condition of each product accurately. It is the buyer’s responsibility to verify fitment and compatibility with their vehicle prior to purchase.All sales are final, and no returns or exchanges will be accepted unless explicitly stated otherwise in the listing. For any additional questions, please feel free to contact us before making your purchase. Buyer is responsible for any additional missing parts not noted in the description.Thank you for your understanding and for shopping with us!
