DOES NOT INCLUDE HOUSING/BEZEL; THAT IS FOR DISPLAY PURPOSES ONLY
Unit is single wire hook up and NOT PLUG &PLAY.
***Please NOTE: item no longer comes with oil temp gauge.Oil temp gauge has been replaced with digital clock.***

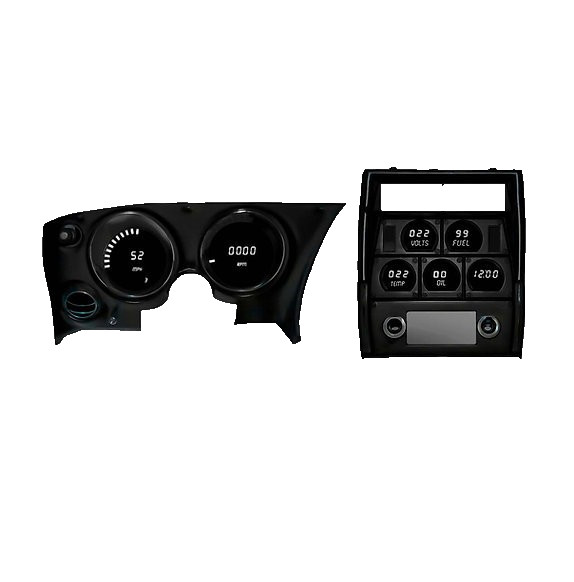

1968-1977 Corvette LED Digital Panel
SKU: DP2001
1968-1977 Corvette LED Digital Gauge Panel - DP2001
Cruise through time in your 1968-77 Corvette withIntellitronix direct fit 68-77 Corvette LED Digital Gauge Replacement DashPanel.The1968-1977 Corvette LED Digital Panelcomes completewith direct fit printed circuit boards, custom fit "smoked"plexiglass faceplate, universal temperature sending units, oil pressure sendingunit, and speedometer sending unit with senders and sensors for vehicleswithout electronic transmission or cruise control, and instructions forinstallation.
Speedometer reads up to 255 MPH and features odometer, tripmeter, one-button calibration, regardless of tire size, gear ratio, ortransmission, and 0–60-time, 1⁄4 mile elapse time, and high-speed recall, allwith the push of a button. The speedometer can be used with electronic cruisecontrol senders or use included S9013 universal speedometer sending unit, ifyour vehicle is not equipped with a functional cruise control.
Tachometerhas a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900,9990, 9999).
Water Temperature display reads 100-300°F range and includessending unit. Please add a note at checkout if you need a 3/8" bushing,because we send the more common 1/2" bushing. Otherwise, you will have topurchase the bushing on your own.
Oil Pressure reads 0-100 PSI range. Oil pressure sendingunit is included.
Voltmeter displays 7.0-25.5-volt range, and no sending unitrequired.
Fuel Level displays Empty to Full in 1/4 increments andworks with existing GM fuel level sending unit.
The panel features turn signals and high beam indicatormaking it the ultimate way to keep the ride you love cruising through thetimes.
Easy Install, Lifetime Warranty, Great Price and Gauges foryour very special classic vehicle.
BEZEL NOT INCLUDED
*Please note if your vehicle came with an oil temperaturegauge from the factory it will now be replaced with a digital clock
FEATURES:
AVAILABLE COLORS: White, Red, Blue, Teal, Amber (Orange),Pink and GreenSPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units areincluded.
GPS Speedometer Sending Unit: Accurate readings with asimple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers.Built-in GPS eliminates speed errors caused by tire or gear changes.
Universal Gauge Harness: Designed for performance andprofessional appearance, this 8' harness includes color-coded wires,quick-connects for easy removal, and all hardware needed for gauge wiring.Includes connectors for: Water temp, oil pressure, tachometer, voltmeter, fuellevel, speedometer, dash lights, turn indicators, and high beam indicator.
LS Swap Kit: Perfect for GM engines, including 12mm &16mm bushings and a 10K-1/2-watt resistor.
If you have an LS engine, then please be aware that you mayneed adapters (metric to nonmetric) for our sending units. You need to add partnumber 8014-LS (LS Swap Kit), it’s under $20 and has the imperial to metricadapters that you will need to fit LS Swap.
