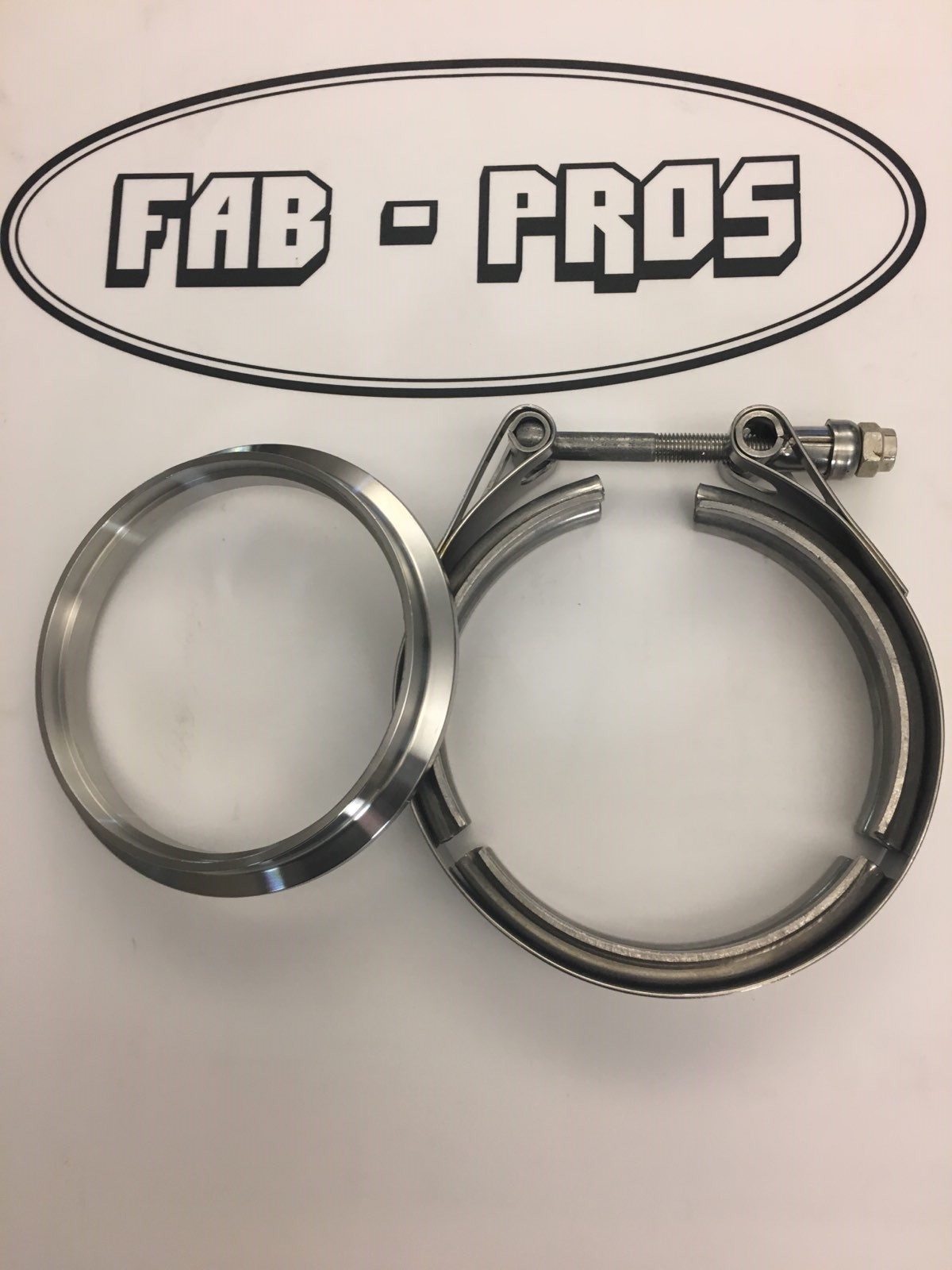

Fab Pros V-band Flange and Clamp set for the Turbine Exit (Downpipe side) on all the T4 flanged 400 Series Turbos, S, SX, and SX-E with the FLAT face.
** Not for the bigger "T6" Housing on these turbos that has the big beveled(Marmon) face*** The 5" Marmon Flange/Clamp for T6 Hsg Here-> , is the V-band flange compatible with these BW (Borg Warner) Turbo models including:Borg Warner S400 S400SXE S475 S480 S463 S467 SX-E SX, and many others in the S400 Series.
This one DOES NOT FIT the S200 and S300 housings. Please refer to other listings.Exceptionally high quality 304 Stainless Flange machined from billet and matching USA MADE clamp.Machined from solid billet 304 stainless means it's extremely durable and corrosion resistant (no rust!).Has the special 4.62" FLAT FACE (117.4mm OD) to mate too the only the Borg Warner outlet flange on all these Turbo models using the "T4" Housings instead of the T6.Has the nice 4" ID on the backside of the flange to slip the 4" (102mm) OD tube into and weld. Has a beefy dead section for warp free welding
Use this flange and clamp to make a nice true 4" diameter (102mm) downpipe! It's ALL stainless!Another high quality part made for FABRICATION PROS.Includes USPS PRIORITY Mail shipping for quick 1-2 day arrival to most US destinations.Order today and it will ship today.OPTIONAL PART TO STEP THIS FLANGE FROM 4" TO 5" USING THIS TRANSITION , PART TO STEP THIS FLANGE FROM 4" TO 3" USING THIS TRANSITION , https://www..com/itm/263835385123 ADDITIONAL PART FOR YOUR TURBO - THE 3.5" COMPRESSOR HOUSING V-BAND FLANGE/CLAMP SET ,
