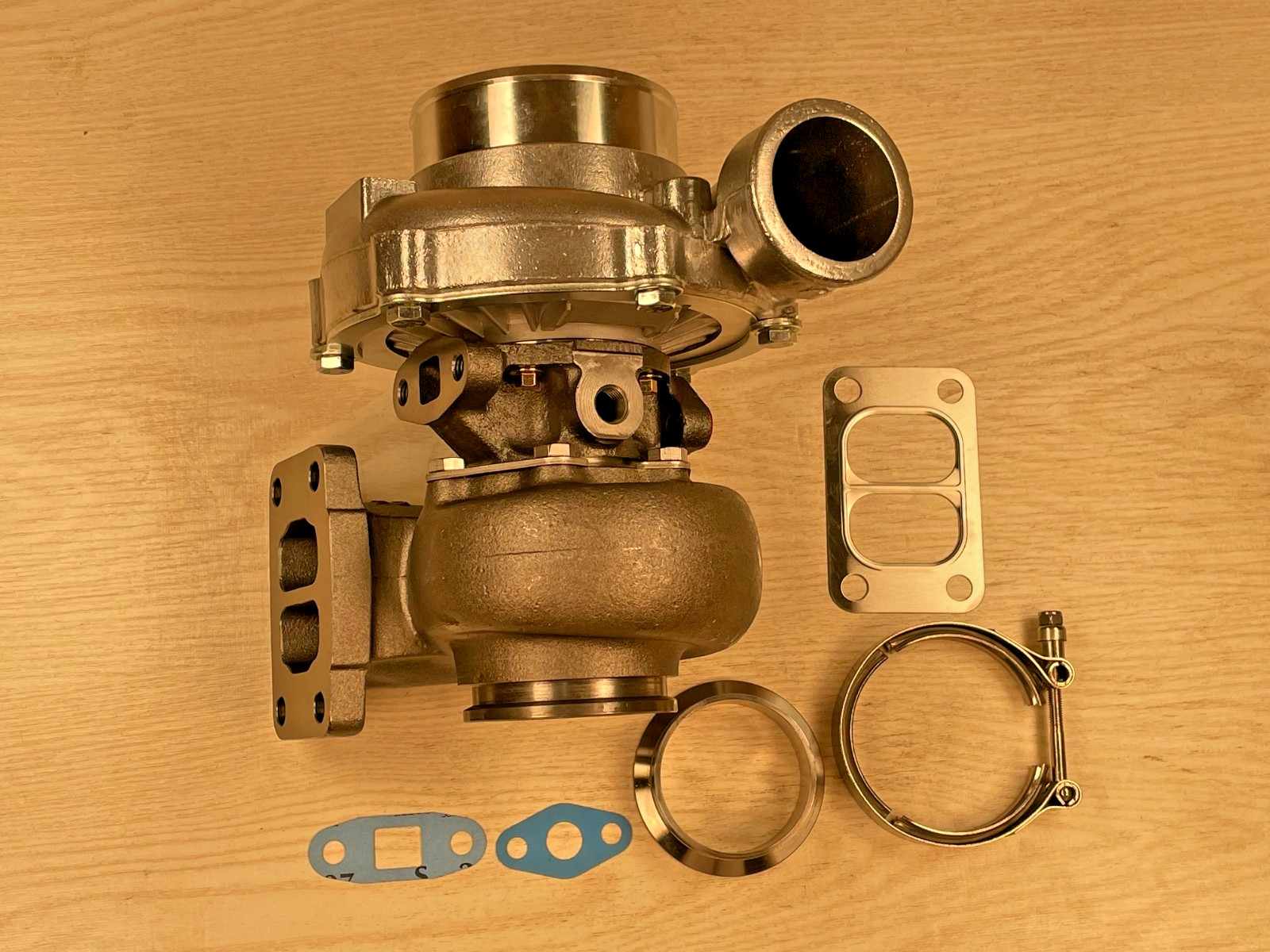

Turbo modelT70-4Billet compressor wheelbearing type:360 degree thrust Journal bearingcooled type:water and oil cooledhorsepower:500-600hpCompressor detailsa/r 0.70air inlet 4\" air outlet 2.5\"inducer 61.40mm exducer 82.00mmTurbine detailsa/r 0.82-V-Band twin scrollturbine housing flange:T3 86mm x 46mminducer 65.25mm exducer 56.00mm
Water connections M14 x 1.5Oil inlet 2 M8 x 1,25 thread (normal) for mounting the oil flange; Distance of the threads 38 mmThread for oil restrictor M12 x 1.5Oil outlet 2 M10 x 1.5 (normal) thread for oil flange mounting; Distance of the threads 51 mm****************Very Important Points*******************
1.Please make sure to open the box immediately when taking delivery, to avoid any potential issues Do NOT sign for any damaged package and report it to the couriers immediately, let the couriers sign for damage, then Contact us please! We will work with the couriers to solve shipping issues.
