Baja Designs - 448067 - XL Linkable Bumper Light Kit
Full adjustment. Total Performance. The 2021-On Ford Raptor 6 XL Linkable kit was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.

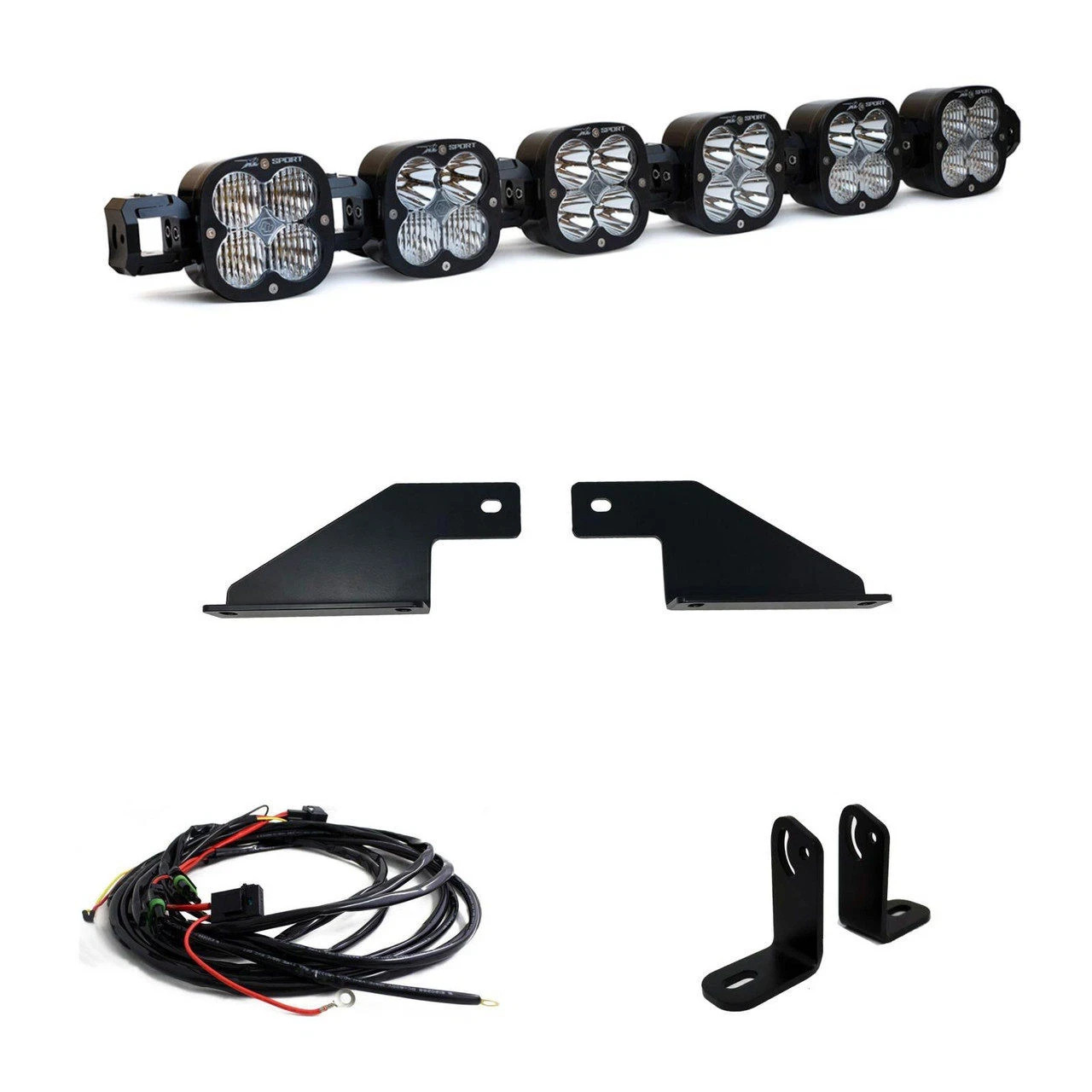

This kit includes 6 XL Sports, Links, vehicle specific mounting brackets, up-fitter wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.
Baja Designs Features:
- Satisfactions Guarantee 30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uServiceReplaceable Lenses And Optics
- ClearViewAll The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 18,900 Utilizing 24 LEDs
- Wattage/Amps: 156W / 12A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Applications:
2021 Ford Raptor
Included:
- x1 6 XL Linkable Kit
- x2 Mounting Brackets
- x1 Pre-Load L Bracket Kit
- x1 Wiring Harness
- All necessary hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
YearMakeModelSubmodelNotes2021 - 2026FordF-150RaptorRaptor Multi-Pattern; Clear
If you’re looking for a light set that you can customize exactly where you want to light to go, this XL Linkable Bumper Light Kit is for you. This package includes six XL Linkable lights for serious light and killer looks for your raptor. This system uses a total of 24 Cree LEDs to beam out 18,900 lumens of daylight-quality light in a variety of beam patterns. The LED High-Speed Spotlight utilizes special reflectors to extend the light throw for long-distance visibility with the throttle on the floorboard.
Also included are the Links, Ford-specific mounting brackets, up-fitter wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
INCLUDED WITH KIT:SKU: 740004DimensionsDepth (in.)2.8Height (in.)4.43Length (in.)39.99Specifications
Amperage Rating (A)12Average Rated Life (hr.)49,930Beam PatternMulti-PatternBezel MaterialBillet Machined AluminumBrightness (Lumens)18,900Description6XL Sport; Multi-Pattern; ClearHousing ColorBlackHousing MaterialHard Anodized and Powder Coated Cast AluminumLens ColorClearLighting ModesHardcoated PolycarbonateLight Quantity6Lens MaterialBeamLighting Quantity24Lighting TypeLEDLighting TechnologyForward ProjectingMounting Hardware DescriptionPre-Load Kit; Links; Rock GuardsMounting Hardware IncludedYesMounting Hardware MaterialStainless SteelOvervoltage ProtectionBuilt-InProduct TypeXL Linkable LED Light BarUniversal or SpecificUniversalWattage (W)156Wiring Harness IncludedYesStandards & ComplianceStandards/Compliance (Durability)Exceeds MIL-STD810G (Mil-Spec Testing)Standards/Compliance (Water Resistance)IK10 Compliant (Mechanical Impact Testing)Standards/Compliance (Impact Resistance)IP69K (Waterproof up to 9ft & Pressure Washable)Baja Designs 2021+ Ford Raptor 6 XL Linkable Light Kit
