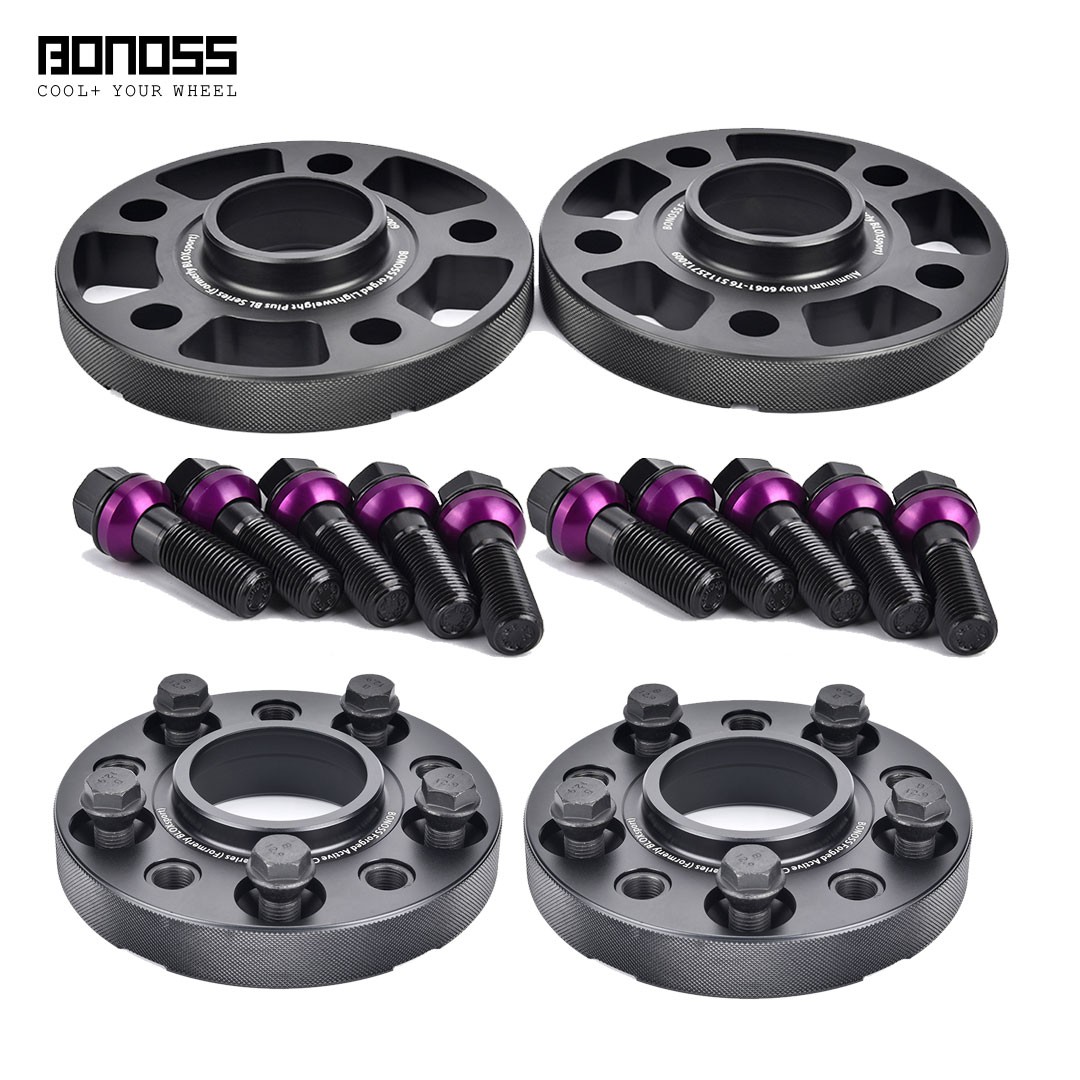

BONOSS 2x 20mm 2x 25mm Hubcentric Wheel Spacers 5x112 for Audi Q5 SQ5 A5 S5 RS5:
$260.99

STORE HOME
ALL LISTINGS
ABOUT US
CONTACT US
For AUDI
For BMW
For CHEVROLET
For DODGE
For FORD
For HYUNDAI
For INFINITI
For JEEP
For LAND ROVER
For LEXUS
For MAZDA
For MERCEDES-BENZ
For MINI
For MITSUBISHI
For NISSAN
For PORSCHE
For SAAB
For SCION
For SUBARU
For SUZUKI
For Tesla Referral
For TOYOTA
For VOLKSWAGEN
For VOLVO

Wheel Adapters

Wheel Hanger

Hub Centric Rings

Titanium Wheel Lug Bolts

Aluminum Wheel Lug Bolts

Aluminum Wheel Lug Nuts

Other

RECOMMANDED 2Pcs 40mm High Safe Wheel Spacer fit Mercedes M Class,ML350,ML500,R350,R500,R170 $139.55 BUY IT NOW 2X 50mm Wide High-tec Wheel Spacer fit Subaru Forester,Impreza,BRZ,Scion FRS $128.99 BUY IT NOW (2) 10mm Forged Lightweight Hubcentric Wheel Spacers for Porsche 911 Panamera $121.99 BUY IT NOW Set of Toyota Throttle Body Spacer fit Mark X II 2.5i V6 2004-2017 Torque Power $89.99 BUY IT NOW 2pcs 15mm Anodized 5x114.3 Wheel Spacer for Infiniti G25,G37,G35,Sedan,Coupe $109.99 BUY IT NOW ITEM DESCRIPTION BONOSS HUBCENTRIC WHEEL SPACER SPECIFICATIONS

Quantity

2x 20mm+10x Longer Bolts + 2x 25mm

Spacer Material

Forged Aluminimum 6061T6

Spacer Thickness

Front 20mm Rear 25mm

Included Extended Bolts

Yes, 10 Pieces for 20mm

Car and Wheel Bolt Pattern

5x112MM

Bolts Material

SCM440 Alloy Steel

Vehicle Hub Bore(HB)

66.5mm

Extended Bolts Grade

ISO Grade 12.9

Torque Recommended

140NM(103.5Ft-tb)

Extended Bolts Length

Thread 47mm

Thread Pitch

M14x1.5

Bolt Seat

Ball Seat R13

Certificates

Reports by TUV ISO

Bolt Type

HEX=17mm

Factory direct,Welcome to be a Distributor, Customized/OEM/ODM Available
Extremely Lightweight Design, Higher Performance
Forged AL6061-T6 with Tensile Strength ≥310 MPa, Safer
Multi-stage Hubcentric Design, More Stable at High-Speed, Safer
ISO Grade 12.9 Wheel Bolts with Gasket Structure, Strength ≥1282 MPa, Safer
Over 66 TÜV Test Reports Certificated, More Professional
Worry-free 10 Years Warranty, Friendly Customer Service

1. This part wheel spacer is compatible with the Audi A4/S4/RS4/Allroad B8 B9;A5/S5/RS5 8T 8F F5;A6/S6/RS6 C7 C8;A7/S7/RS7 4G C8 4G8 4K8;A8/S8 D4 D5;e-tron;Q5/SQ5 8R FY;Q7/SQ7 4M;Q8 4MN Or Mercedes New Models etc. To confirm that this part fits your vehicle, please attached your car,make, and year.

FAQ & Tips

1. What are the benefits of the “Lightweight Plus” design of BONOSS forged Lightweight Plus wheel spacers?

2. Why you need hub centric wheel spacers?
Hubcentric spacers offer a better system of support and stability. They are designed to make a snug connection between the wheel and vehicle hub, reducing the high-speed vibration. Based on traditional hubcentric Supra GR spacers, BONOSS has optimized this design to further reducing the chance of high-speed vibration, it is called multi-stage hubcentric design. According to the actual test, the effect of BONOSS multi-stage hubcentric wheel spacers is far better than the common alternatives, which fit more perfectly, safer, and more stable.3.Are BONOSS Mercedes Benz wheel spacers safe?
Yes. wheel spacers are just the automobile accessories installed between the assembly hub and wheel, the wheel lugs apply a clamping force to secure the spacer and wheel to the vehicle hub. Just like wheels, tires, and brake systems, as long as you use high-quality wheel spacers and install them properly, they are safe. BONOSS is always concerned about safety. Take the 5×114.3 wheel spacers as an example, we use forged AL6061-T6 material (tensile strength ≥310Mpa), modern CNC machining by 0.02mm tolerance, the multi-stage hub centric design fits the wheel hub better. Meanwhile, the matching wheel studs adhere to ISO standard grade 12.9, and ISO standard grade 10 lug nuts, all of our products have got more than 50 TUV authoritative test reports. Compared with those cheap casting wheel spacers, BONOSS forged active cooling wheel spacers are safer, higher performance, and more professional in design. We believe more professional production offers more value for customers.
4. What’s the performance of the extended wheel bolts of wheel spacers? What does the BONOSS Engraved means?
The extended wheel bolts of BONOSS spacers applied high-strength JIS SCM440 steel material. They have achieved ISO standard grade 12.9, tensile strength≥1,282Mpa, limited life range test≥2,000,000 stress cycles without damage, ultimate tensile load≥152,000N, hardness (HV)≥395, NSS≥192H… Many competitors often use other brands of bolts and nuts in pursuit of lowering the cost, and these bolts and lug nuts are often only marked with metric units without brand engraved. In view of this, each BONOSS extended wheel bolt is “BONOSS engraved”, meaning these extended wheel bolts are made by BONOSS’s own factory, the quality is guaranteed, customers’ interests are protected, and BONOSS takes the quality responsibility.5.What are the benefits of the knurling design on my wheel spacers?The knurling design can enhance the aesthetics of the wheel spacers by introducing an attractive pattern to the side surface. In addition to aesthetics, there are practical features. Knurling patterns can enlarge the side area so that it can contact more air, boost the heat dissipation effect, and reduce the internal stress caused by machining. That means improving the performance, strength, and durability of the wheel spacers. BONOSS aims to provide wheel spacers with more additional functions, safer, higher performance, more professional design, and better installing experience, that is why we insist on independent manufacturing and continuous optimization of the design.6. Do you have any TÜV test reports of The wheel spacers?
TÜV Rheinland as the world’s famous testing service companies, standing for safety and quality. To earn customers’ trust, which is also our confidence in product quality. BONOSS has fully passed over 66 ISO standard , TÜV authoritative tests, and all achieved excellent scores.BONOSS forged grade 12.9 extended wheel bolts have passed the 2,000,000 times limited life range test without damage, tensile strength≥1,282Mpa, ultimate tensile load≥152,000N, hardness (HV)≥395, NSS≥500H… By these authoritative test reports, BONOSS truly achieves the quality and professionalism expressed in the form of data and truly guarantees safety. We believe high standard quality management, together with authoritative certification reports is the best way to meet customer and regulatory requirements.7.How thick wheel spacers do I need?
Here is a simple method: use a straight edge such as a metal ruler, place the straight edge on the outermost part of the rims where the wheel comes closest to the fender (preferably the top), then, measure from the outside wheel to the straight edge. This distance is the size spacer you will need to achieve the look that flushes or nearly flushes with the fender line.

SHIPPING RETURNS response ABOUT US PAYMENT 1.Remove original wheel bolts and wheel.
2. Place BONOSS Spacer on axle of vehicle (where the wheel was attached) making sure that the spacer is fully seated and flush with the hub.
3. Fasten BONOSS spacer to car using attached special bolts. Carefully hand turn bolts making sure that they spin in easily so as to not cross-thread. Repeat with the rest of bolts.
4. With hand wrench, snug up the bolts in a star.
5. Tighten the wheel bolts in a star pattern using torque wrench set to factory specification.
6. Ensure no bolt heads come out spacer.
7. Place the wheel onto the spacer and carefully form up the wheel / spacer bolt holes and mounting hole.
8. Carefully hand turn wheel bolts and make sure that they spin in easily so as to not cross-thread.
9. Repeat step 8 with the rest of bolts.
10. With hand wrench, snug up the bolts in a star pattern.
11. Before fully tightening, turn the wheel and tire to check whether there have any noise or interference.
12. Use a torque wrench specified by the manufacturer to snug up the lug nuts in a star pattern. SHIPPING --We are not responsible for custom duty or import tax.
--All Orders that Payment is received before 5pm Beijing Time M-F will be shipped the same day, if received after that time, they will be shipped the next business day, Saturday and Sunday orders will be processed and Shipped on Monday.
--All orders are shipped by DHL/FedEx/UPS within the continental United States. Other international Shipping is available. You need to contact us confirming express method and accounting shipping costs.
--Your purchase will be shipped via standard airmail, which normally takes 3-10 working days to arrive.
--We will provide you with tracking numbers when the item is shipped out. RETURNS 30 days money back, buyer pays return shipping.
