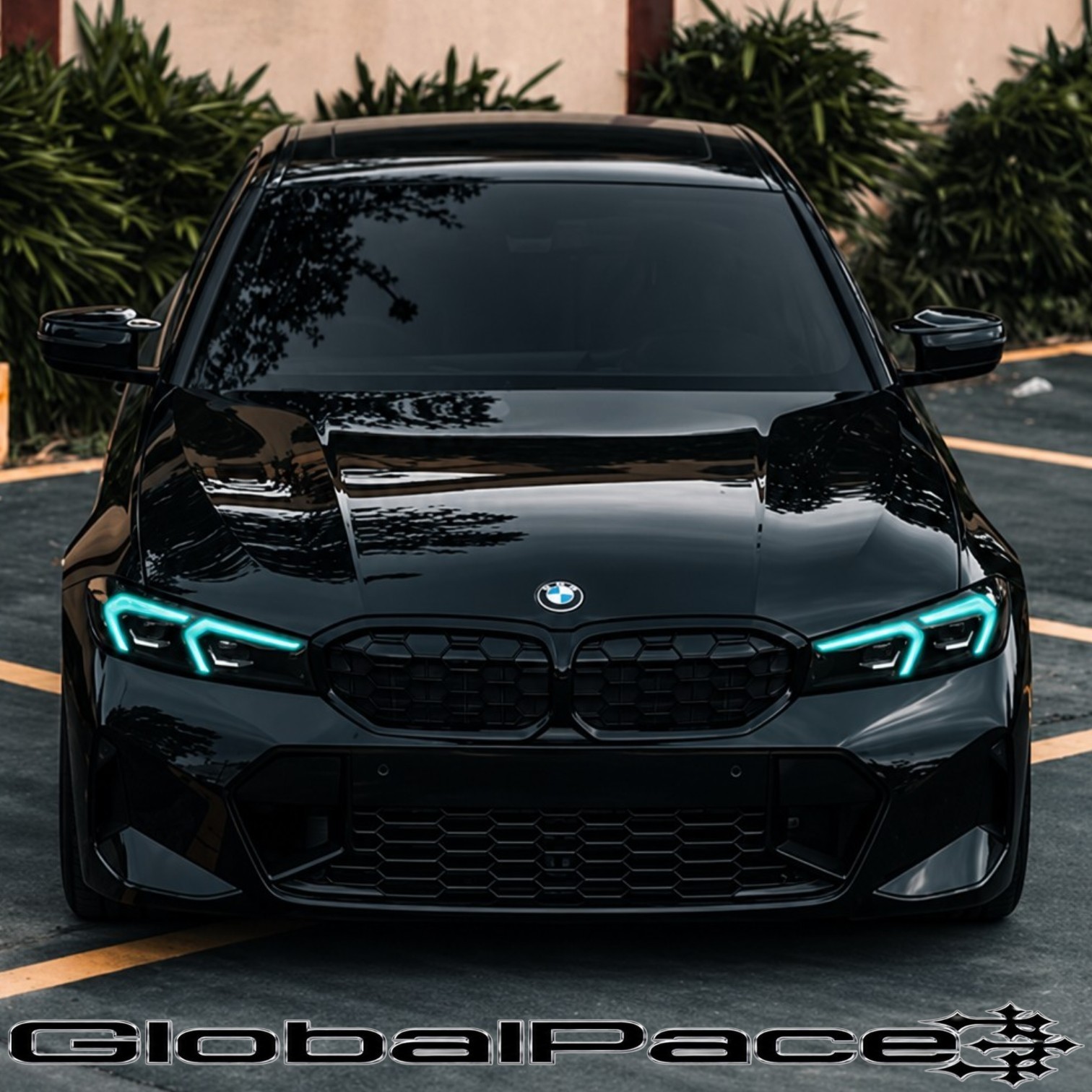

BMW 3 Series G20 G21 LCI RGB App Control DRL Modules — Standard LED 2023–2025330i · M340i · 330e · RGB App Control · Plug and Play · DOT · RoHS Certified · 1-Year Warranty · Standard LED Only
The LCI facelift gave the G20 the sharpest front end of the generation — and then left the DRLs running one color for the life of the car. This module changes that.
The GlobalPace RGB App Control DRL Module Set replaces the factory DRL boards inside your 2023–2025 LCI standard LED headlights and turns the daytime running lights into a full-spectrum color system you run from your phone. Sixteen million colors. Static hold, breathing, flowing, pulse, and music-reactive modes. Independent left and right control. A remote in the box for when you don’t want to open the app. Everything the housing was already built to show — now under your control.
This is a direct board-level replacement, not a strip glued to the outside of your housing. The light comes from inside the factory optic exactly where BMW put it, so it reads as a car that came this way rather than a car with something added to it. Ships within 1–3 business days while stock lasts.
STANDARD LED ONLY — NOT FOR LASERLIGHT
These modules fit LCI standard and adaptive LED headlights only. They do not fit the Laserlight version with the blue accent elements.
This is not a coding limitation — the standard LED and Laserlight DRL boards use completely different PCB footprints, mounting layouts, and optical tube alignments. The parts are physically different shapes and will not seat in the wrong housing.
Your Factory HeadlightFits This KitLCI Standard LEDYesLCI Adaptive LED (non-laser)YesLCI Laserlight (blue accents)NoPre-LCI 2019–2022No
The fastest visual check: look at your headlight with the DRLs on. Laserlight housings have a distinct blue accent element inside the projector area and the inner trim reads “BMW Laser.” Standard and adaptive LED housings have no blue accent. If you see blue, this kit is not for your car.
To confirm by part number: pull the access cover at the back of your headlight housing and read the module label. 63115A57067 (left) or 63115A57068 (right) confirms standard LED and this kit is correct. The DRL board numbers 63115A57071 (left) and 63115A57072 (right) also confirm it.
Also confirm you’re US spec. BMW uses different part numbers for US and European housings on the G20 LCI because of sidemarker and amber reflector regulations. Check the sticker on your housing and the connector pin count before ordering.
Send us your VIN and a photo of your factory module label and we confirm before you commit. No guesswork. No returns.
THE RGB SYSTEM — SIXTEEN MILLION COLORS FROM YOUR PHONE
The module pairs to the Happy Lighting app over Bluetooth. Free on iOS and Android, no account required, no subscription, no dongle.
▸ Full RGB color wheel — any color in the spectrum, set in one tap
▸ Static hold — pick a color and it stays there through every ignition cycle
▸ Breathing · flowing · pulse · strobe — animated modes with adjustable speed
▸ Music reactive — the DRLs respond to whatever’s playing, driven by your phone’s mic
▸ Brightness control — dial output up for daylight presence or down for a subtle night look
▸ Independent left and right — run the two housings on different colors, or lock them together
▸ Saved presets — store your favorites and switch between them instantly
The physical remote is included for color changes without pulling out your phone.
WHAT THIS REPLACES
Each module is a direct swap for one factory LCI standard LED DRL board. You remove the OEM board from the housing and the RGB module takes its exact place using the same mounting points and the same connector. No cutting. No splicing. No drilling. No adhesive strips. No wiring taps.
Because the module sits in the factory optical position, the light travels through your original LED light guide — the same even, edge-to-edge output BMW engineered, just in whatever color you choose.
INSTALLATION
01 — Disconnect the negative battery terminal and wait 60 seconds.
02 — Remove the headlight assembly, or access the rear service cover depending on your preferred approach.
03 — Open the rear access cover on the housing and locate the factory DRL module. Confirm the part number on the label matches 63115A57067 or 63115A57068 before going further.
04 — Release the factory module from its mounting clips and unplug the connector.
05 — Seat the RGB module in the same position and connect it to the factory plug. Apply the included dielectric grease to the connector before seating to seal against moisture.
06 — Reinstall the access cover, reconnect the battery, pair to the Happy Lighting app and verify all modes on both sides before final reassembly.
Professional installation is recommended if you are not comfortable working inside a headlight housing.
FREQUENTLY ASKED QUESTIONS
Do these work with Laserlight headlights?
No. Standard and adaptive LED only. The PCB shape and optical tube alignment are completely different between the standard LED and Laserlight boards — it’s a physical incompatibility, not a coding one. If your housing has the blue accent element, this kit won’t fit.
How do I tell standard LED from Laserlight?
Laserlight housings have a visible blue accent element inside the projector area and the inner trim reads “BMW Laser.” Standard and adaptive LED have no blue accent. You can also read the part number on your DRL module label — 63115A57067 or 63115A57068 confirms standard LED.
Does this fit pre-LCI 2019–2022 cars?
No. The LCI facelift changed the headlight architecture entirely. Pre-LCI uses a different module — message us and we’ll point you to the right kit.
Does this require coding?
No. These are passive color-change DRL boards, not control ECUs — they’re plug and play. No BimmerCode, no ISTA, no fault codes.
Will my low beam, high beam, adaptive function, and turn signal still work?
Yes. The module replaces only the DRL board. Low beam, high beam, turn signal, adaptive cornering, and automatic headlight operation are untouched and operate exactly as they did from the factory.
Does this fit European or ROW cars?
These are for US-spec housings. BMW uses different part numbers for European and ROW G20 LCI headlights due to sidemarker and reflector regulations. Confirm your market spec with us first.
Is an app required, or can I use the remote?
Either. The app gives you the full color wheel and all modes; the included remote handles color and mode changes without your phone.
Does the color reset when I turn the car off?
No. Your last setting holds through every ignition cycle.
FEATURES
▸ RGB App Control
Sixteen million colors via Happy Lighting over Bluetooth — free app, no account, no subscription
▸ Remote included
Physical remote for color and mode changes without the app
▸ Independent left and right control
Run both housings on one color or set each separately
▸ Static and animated modes
Static hold, breathing, flowing, pulse, strobe and music-reactive with adjustable speed
▸ Factory optical position
Replaces the OEM DRL board inside the housing — light comes through your original LED guide
▸ True plug and play
Factory connector, factory mounting points — no cutting, splicing, drilling or adhesive
▸ No coding required
Passive DRL boards, not control units — install and pair
▸ Dielectric grease included
Seals the connector against moisture at installation
▸ Memory retention
Last color and mode hold through every ignition cycle
▸ LCI standard and adaptive LED only
2023–2025 — does NOT fit Laserlight with blue accents or pre-LCI 2019–2022 — send us your VIN and module label photo before ordering
▸ DOT · RoHS Certified
Quality verified and compliant
▸ 1-Year manufacturer warranty
Backed by GlobalPace — contact us before initiating any return
▸ Left and right module included
Complete set in one box
▸ Every unit individually inspected and quality verified before dispatch from our facility
PART NUMBERS — REPLACED BY THIS KIT
LCI Standard / Adaptive LED DRL Modules
Left / Driver
▸ Module — 63115A57067
▸ DRL board / light source — 63115A57071
Right / Passenger
▸ Module — 63115A57068 · superseded by 63115B76CA8
▸ DRL board / light source — 63115A57072
Related housing references
▸ Left headlight assembly — 63115A4F753
▸ Right headlight assembly — 63115A57058 · superseded by 63115A4F754
▸ Front Light Electronics (FLM2) — 63115A0AFC0 left · 63115A0AFB0 right
If the label on your factory module does not match one of the DRL numbers above, this kit will not fit your housing. Send us your VIN and a photo of the label and we confirm before you order.
FITMENTYearMakeModelBody StyleChassis2023–2025BMW330i / 330i xDriveSedanG20 LCI2023–2025BMWM340i / M340i xDriveSedanG20 LCI2023–2025BMW330e / 330e xDriveSedanG20 LCI2023–2025BMW3 Series TouringEstateG21 LCI
Requires factory standard or adaptive LED headlights, US spec.
Does NOT fit: LCI Laserlight with blue accent elements · Pre-LCI 2019–2022 · European or ROW spec housings · G22 4 Series · G42 2 Series · Any other chassis
Send us your VIN and a photo of your factory module label and we confirm before you commit. No guesswork. No returns.
WHAT’S IN THE BOX
▸ Left RGB DRL module
▸ Right RGB DRL module
▸ Remote control
▸ Dielectric grease
SHIPPING & WARRANTY
Ships within 1–3 business days while stock lasts. Backed by GlobalPace’s 1-year manufacturer warranty. Every unit inspected and quality verified before dispatch. Message us through before initiating any return — the large majority of installation questions are resolved within one message exchange.
Sixteen million colors. App control over Bluetooth plus a remote in the box. Static hold, breathing, flowing, pulse and music-reactive modes with independent left and right control. Factory connector, factory mounting points, no coding, no cutting. Memory retention through every ignition cycle. DOT and RoHS certified with a full year of warranty coverage.
For LCI standard and adaptive LED only, 2023–2025 — if your housing has the blue accent, this isn’t the one. Check first. The facelift gave the G20 the front end it deserved. This is what happens when you stop leaving it on the factory setting.
