BMW 4 Series F32 F33 F36 M3 F80 M4 F82 F83 Snake Eye Dual Color LED Headlights — 2014–2020 · White · Yellow DRL · 6000LM · 36W · 6000K · DOT SAE ISO Certified · 1-Year Warranty · Direct Replacement
Every F32 F33 and F36 on the road right now is running the same factory front end BMW shipped it with. This kit was engineered for the owner who looked at that front end and decided it was capable of something the factory never offered at any trim level or any price point.
The GlobalPace Snake Eye Dual Color LED Headlight Kit is one of the most visually aggressive front end upgrades available for the 2014–2020 BMW 4 Series F32 F33 F36 and M4 F82 F83 — trusted by 4 Series owners across the US who wanted a front end that reads as purpose-built and completely unlike anything BMW offered in any specification. Clear lens. Black housing. Two bold angular white LED bars creating a dramatic snake eye DRL signature. Blue trim accent detail framing the DRL architecture. Switchable white and yellow DRL from the factory high beam stalk. And a startup animation that sweeps across the complete snake eye architecture on every ignition cycle.
On a Sapphire Black or Carbon Black F32 the snake eye DRL architecture through a clear lens against dark paint reads as a factory-specced front end from a performance division BMW kept entirely to themselves. On an Alpine White or Mineral White F32 the yellow DRL mode creates the European track-inspired front end character that BMW's own engineers have used on performance concepts and test mules — and never offered at any trim level or any price point.
Ships within 1–3 business days while stock lasts.
WHAT THIS KIT IS — AND WHAT IT REPLACES
This is a direct replacement for the complete headlight assemblies on the 2014–2020 BMW 4 Series F32 Coupe F33 Convertible F36 Gran Coupe and M4 F82 F83 — the full units that mount at the front corners of the car and deliver low beam high beam DRL and turn signal functions. These replace your entire OEM headlight assembly on both sides. Same mounting points. Same connectors. Zero modification to the factory harness or body required.
This kit is currently available in three connector versions — 6-pin halogen Pre-LCI, 9-pin LED LCI, and 10-pin M3/M4. The 8-pin xenon Pre-LCI version for 2014–2016 factory xenon equipped models is temporarily unavailable. Not sure which version you need? If your 2014–2016 car has factory xenon headlights please contact us before ordering — we will confirm availability for your build. For all other configurations send us your VIN and we confirm the correct version before you commit. No guesswork. No returns.
THE SNAKE EYE DRL ARCHITECTURE — THE ELEMENT THAT DEFINES THIS KIT
Two bold angular LED bars dominate the inner housing face in a dramatic diagonal composition — each bar a clean concentrated white stripe angled outward across the housing face creating the snake eye signature that makes this kit immediately identifiable from every other headlight available for the F32 platform. The diagonal orientation gives each housing a visual directionality — both bars pointing forward and outward simultaneously creating a sense of motion and aggression that horizontal DRL elements cannot achieve at any output level.
Through the clear lens in standby both bars are present as dark angular architectural elements against the black housing interior — clean precise geometric forms that create a premium daytime aesthetic before any LED has been activated. On activation 6,000 lumens of 36W 6000K output fires simultaneously across both bars — crisp bright white cutting through the clear lens with zero tint attenuation at maximum saturation from every following distance.
THE BLUE TRIM ACCENT — THE DETAIL THAT ADDS DEPTH
Behind the bold snake eye DRL bars a precision blue trim detail traces the housing architecture — a static accent that frames the white bar output with a cool blue contrast visible through the clear lens at every hour of the day. In daylight the blue trim reads as a deliberate premium interior detail — a layered architectural element that makes the F32 front end read as considered and purposeful before any LED activates. After dark the blue accent frames the vivid white and yellow DRL output as a secondary depth element — a cool blue contrast border that makes the snake eye architecture read as genuinely extraordinary from every following distance.
This is the detail that makes every other aftermarket F32 headlight look like it settled.
THE DUAL COLOR DRL SYSTEM — WHITE · YELLOW ON DEMAND
Two distinct DRL modes. One headlight kit. Zero additional hardware required.
The color switching system is activated entirely through the factory high beam stalk — no apps no remotes no Bluetooth modules no coding session no OBDII dongle no wiring tap of any kind. The sequence is immediate and the output is vivid in every mode through the clear lens at every hour.
▸ 5 high beam flashes — DRL switches to crisp clean white — the daily precision character through the full snake eye architecture▸ 6 high beam flashes — DRL switches to warm yellow — track presence fog visibility and the European aesthetic the 4 Series was always built to carry
The color holds until you switch it. Drive it white for the daily commute. Switch to yellow for the track day or the mountain road. The front end character is yours to set at every ignition cycle — something no factory headlight on this chassis has ever offered at any trim level or any price point.
THE YELLOW MODE — THE EUROPEAN AESTHETIC THE F32 DESERVED

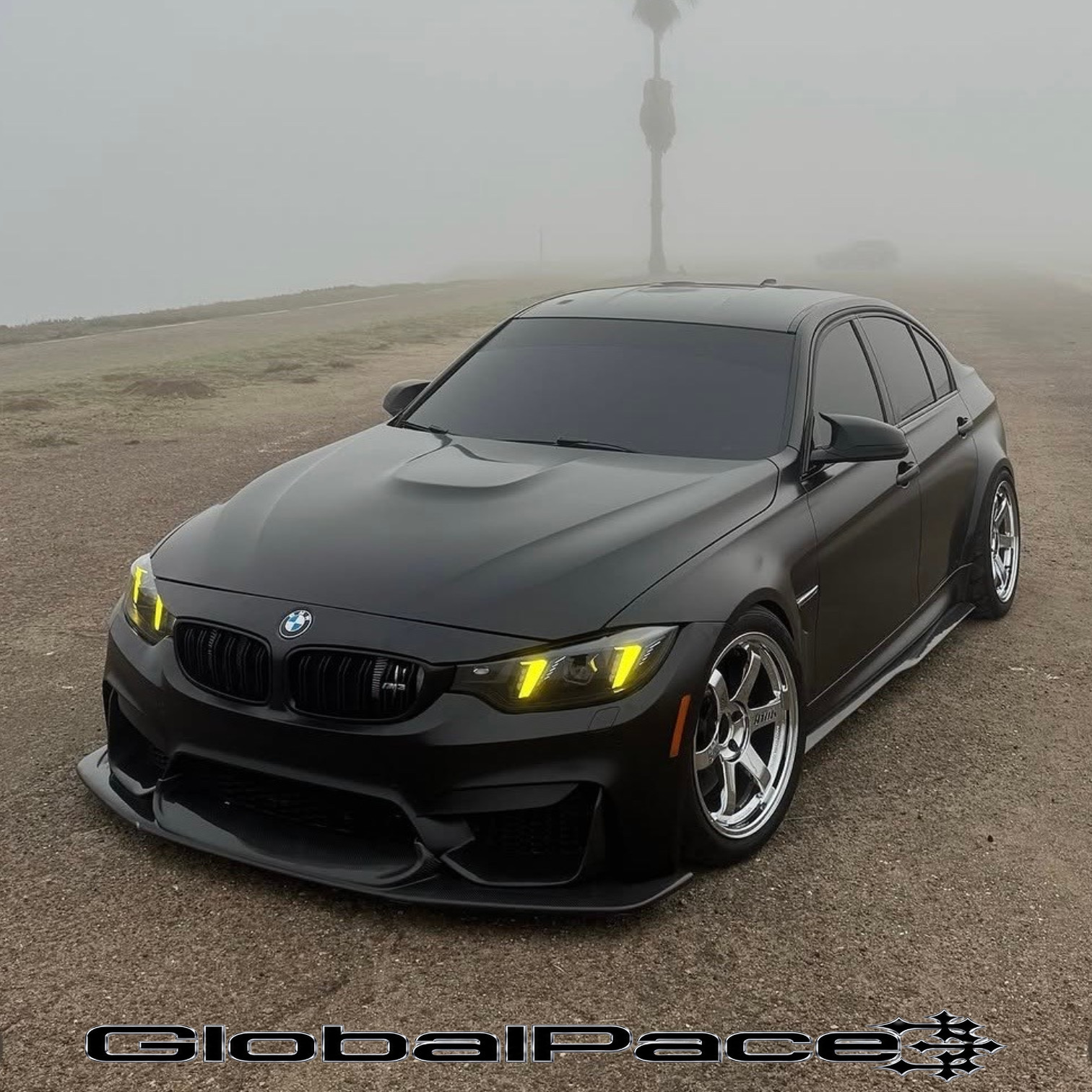

Six flashes. Warm yellow DRL output firing through both snake eye bars simultaneously through a clear lens over a black housing interior with blue accent trim — the front end character that references the European rally and touring car aesthetic that BMW's own engineers have long used on performance concepts. Yellow DRL through the snake eye architecture on a Carbon Black or Sapphire Black F32 creates a front end that reads as immediately distinctive from every other 4 Series in traffic. Six flashes from the factory stalk — no hardware no coding no compromise.
THE STARTUP ANIMATION — THE MOMENT THAT DEFINES EVERY DRIVE
The startup animation fires on every ignition cycle — activating the outer bar first then the inner bar then sweeping across the complete snake eye architecture in a flowing progressive sequence before settling into your chosen DRL color. An event that plays every single time the F32 F33 F36 or M4 comes to life. A front end moment that every person near the car when it starts will notice remember and ask about.
WHICH VERSION DO I NEED — THREE CONNECTOR OPTIONS CURRENTLY AVAILABLE
This kit is currently available in three connector versions covering the majority of F32 F33 F36 F82 F83 and F80 configurations:
▸ 6-pin — Pre-LCI 2014–2016 factory halogen equipped F32 F33 F36▸ 9-pin — LCI 2017–2020 factory LED equipped F32 F33 F36▸ 10-pin — F80 M3 · F82 F83 M4 2014–2020 all configurations
The 8-pin xenon Pre-LCI version for 2014–2016 factory xenon equipped models is temporarily unavailable. If you have a 2014–2016 F32 F33 or F36 with factory xenon headlights please message us before ordering and we will confirm availability for your build.
Not sure which version you need — send us your VIN before ordering and we confirm the correct version for your exact build. No guesswork. No returns.
FREQUENTLY ASKED QUESTIONS
How do I switch between white and yellow DRL?
Using the factory high beam stalk — no apps no coding no additional hardware required. Five flashes for white. Six flashes for yellow. The color holds until you switch it again.
How do I know which connector version I need?
Three versions are currently available covering halogen Pre-LCI LCI LED and M3/M4 configurations. Send us your VIN before ordering and we confirm the correct version for your exact build. If you have a 2014–2016 car with factory xenon headlights please message us first to confirm availability.
Does this fit both Pre-LCI and LCI versions?
Yes for halogen Pre-LCI and all LCI configurations — all three available versions cover 2014–2020. The xenon Pre-LCI version is temporarily unavailable. Confirm your factory headlight type and we handle the rest.
Is there a sequential turn signal?
This kit features a static amber turn signal flash — not sequential. The startup animation sweeps progressively across the snake eye architecture on ignition but the turn signal activates as a static flash on every indication.
Does this fit the M3 F80?
Yes — the 10-pin version fits the F80 M3 Sedan 2014–2018.
Does this fit the F30 3 Series?
No. This kit is engineered specifically for the F32 Coupe F33 Convertible F36 Gran Coupe F82 F83 M4 and F80 M3 only. It does not fit the F30 F31 3 Series sedan or wagon in any configuration.
Will this trigger a check control message?
Most installations complete without any coding or errors. On some build configurations a check control warning may appear — resolved quickly via BimmerCode or any BMW-compatible OBDII tool in under five minutes. Message us before initiating any return and we walk you through it in one exchange.
What if I have an issue after installation?
Message us through before initiating any return. The large majority of installation questions on this platform are resolved within one message exchange.
PROFESSIONAL INSTALLATION STEPS
01 — Disconnect the negative battery terminal and wait 60 seconds before beginning any work on the lighting circuit.
02 — Open the hood and locate the headlight assembly retaining bolts and clips. Remove any front fascia trim clips required for access on your specific body style.
03 — Disconnect the factory wiring harness connectors — low beam high beam DRL and turn signal — by pressing the release tab firmly on each plug before pulling.
04 — Remove the OEM assembly and test-fit the new headlight before final mounting. Reconnect all harness connectors and temporarily reconnect the battery to verify all functions — dual color DRL switching low beam high beam turn signal and startup animation — before securing any hardware.
05 — Once all functions are confirmed secure all mounting hardware to factory torque specification and reconnect the battery for final check.
06 — Professional installation by a licensed automotive technician is strongly recommended if you are not comfortable working directly with vehicle electrical systems.
LIGHT FUNCTIONS
▸ Daytime Running / DRL
Dual color switchable white · yellow — 5 flashes white · 6 flashes yellow — activated via factory high beam stalk — default output Cold White 6000K — zero additional hardware required
▸ Turn Signal
Static amber flash activation on every indication — road-legal and precise
▸ Low Beam
Single projector focused output for precise road illumination in every condition at every speed
▸ High Beam
Full projector output for maximum road visibility at extended distances
▸ Startup Animation
Progressive snake eye sweep — outer bar activates first then inner bar then full sweep across the complete architecture — on every ignition cycle settling into your chosen DRL color
FEATURES
▸ Dual Color DRL System
White · yellow switchable via factory high beam stalk — 5 flashes white · 6 flashes yellow — zero hardware zero coding zero modifications
▸ Snake Eye dual angular LED bar architecture
Two bold diagonal white LED bars creating a dramatic aggressive front end signature completely unlike any factory or standard aftermarket option for the F32 platform
▸ Blue trim accent detail
Precision static blue accent framing the snake eye DRL bars — visible through the clear lens at every hour adding depth and premium character
▸ Clear lens
Full unfiltered display of both snake eye bars blue accent and all internal elements at every hour
▸ Black housing interior
Maximum contrast frame making every element of the snake eye architecture read with full precision and depth
▸ Progressive startup animation
Outer bar first then inner bar then full sweep — on every ignition cycle
▸ Three connector versions currently available
6-pin halogen · 9-pin LCI LED · 10-pin M3/M4 — 8-pin xenon Pre-LCI temporarily unavailable — confirm factory headlight type before ordering — send VIN if unsure
▸ Fits Pre-LCI 2014–2016 halogen and LCI 2017–2020
Full halogen and LED production run coverage — correct version ships based on your factory headlight type
▸ DOT · SAE · ISO Certified
Road-legal across all 50 states and internationally quality-verified
▸ 1-Year manufacturer warranty
Backed by GlobalPace — contact us before initiating any return
▸ Direct OEM replacement
Zero drilling zero cutting zero modifications required
▸ Left and right assembly included
Everything in one box ready to install
▸ 100% waterproof sealed construction
Engineered for all seasons all climates all conditions
▸ Premium ABS/PC/PMMA tri-layer construction
Durable impact-resistant built for longevity
▸ Every unit individually inspected and quality verified before dispatch from our facility
OEM PART NUMBERS — SUPERSEDED BY THIS KIT
Pre-LCI 2014–2016 — Halogen▸ Left / Driver — 63117377841▸ Right / Passenger — 63117377842▸ Partslink — BM2502183 · BM2503183
Pre-LCI 2014–2016 — Xenon / Bi-Xenon▸ Left / Driver — 63117377843▸ Right / Passenger — 63117377844▸ Partslink — BM2502184 · BM2503184
Pre-LCI 2014–2016 — Full LED Adaptive▸ Left / Driver — 63117377855▸ Right / Passenger — 63117377856▸ Partslink — BM2502185 · BM2503185
LCI 2017–2020 — Full LED▸ Left / Driver — 63118738705▸ Right / Passenger — 63118738706▸ Partslink — BM2502194 · BM2503194
LCI 2017–2020 — Xenon▸ Left / Driver — 63117410787▸ Right / Passenger — 63117410788▸ Partslink — BM2502191 · BM2503191
F80 M3 / F82 F83 M4▸ Left / Driver — 63118738701▸ Right / Passenger — 63118738702▸ Partslink — BM2502192 · BM2503192
Superseded▸ 7377841 · 7377842 · 7377843 · 7377844▸ 7377855 · 7377856▸ 8738705 · 8738706▸ 7410787 · 7410788▸ 8738701 · 8738702▸ 63117387541 · 63117387542▸ 63117387543 · 63117387544
Does NOT fit: G22 G23 G26 2021+ 4 Series · G82 G83 M4 2021+ · F30 F31 3 Series · Any non-4 Series chassis
Note — 2014–2016 factory xenon equipped models are temporarily not supported. Please confirm your factory headlight type before ordering. Send us your VIN if unsure — we confirm before you commit. No guesswork. No returns.
TOTAL ITEM DIMENSIONS AND WEIGHT
Total Weight: ~18–22 lbs · Length: ~26–28 inches · Width: ~22–24 inches · Height: ~10–12 inches
WHAT'S IN THE BOX
▸ Left headlight assembly
▸ Right headlight assembly
▸ Mounting hardware included
SHIPPING & WARRANTY
Ships within 1–3 business days while stock lasts. Backed by GlobalPace's 1-year manufacturer warranty. Every unit individually inspected and quality verified before dispatch from our facility. Message us through before initiating any return — every installation question on this platform is resolved within one exchange.
6,000 lumens. 36 watts. 6000K. Clear lens over black housing. Two bold angular snake eye LED bars creating a dramatic diagonal front end signature — white and yellow switchable from the factory high beam stalk on every drive. Blue trim accent detail framing the DRL architecture through the clear lens at every hour. Progressive startup animation sweeping across the complete snake eye composition on every ignition cycle. Three connector versions currently available covering halogen Pre-LCI LED LCI and M3/M4 configurations across the 2014–2020 production run. Direct OEM replacement with zero modifications required. DOT SAE and ISO certified. One year of warranty coverage backed by GlobalPace.
The 4 Series was BMW's statement that a compact coupe could be genuinely extraordinary. The factory gave it the front end to match. This kit gives that front end two colors a snake eye signature and a blue accent detail that reads as purpose-built from the first moment you see it — and puts both colors in your hand before you leave the driveway.
