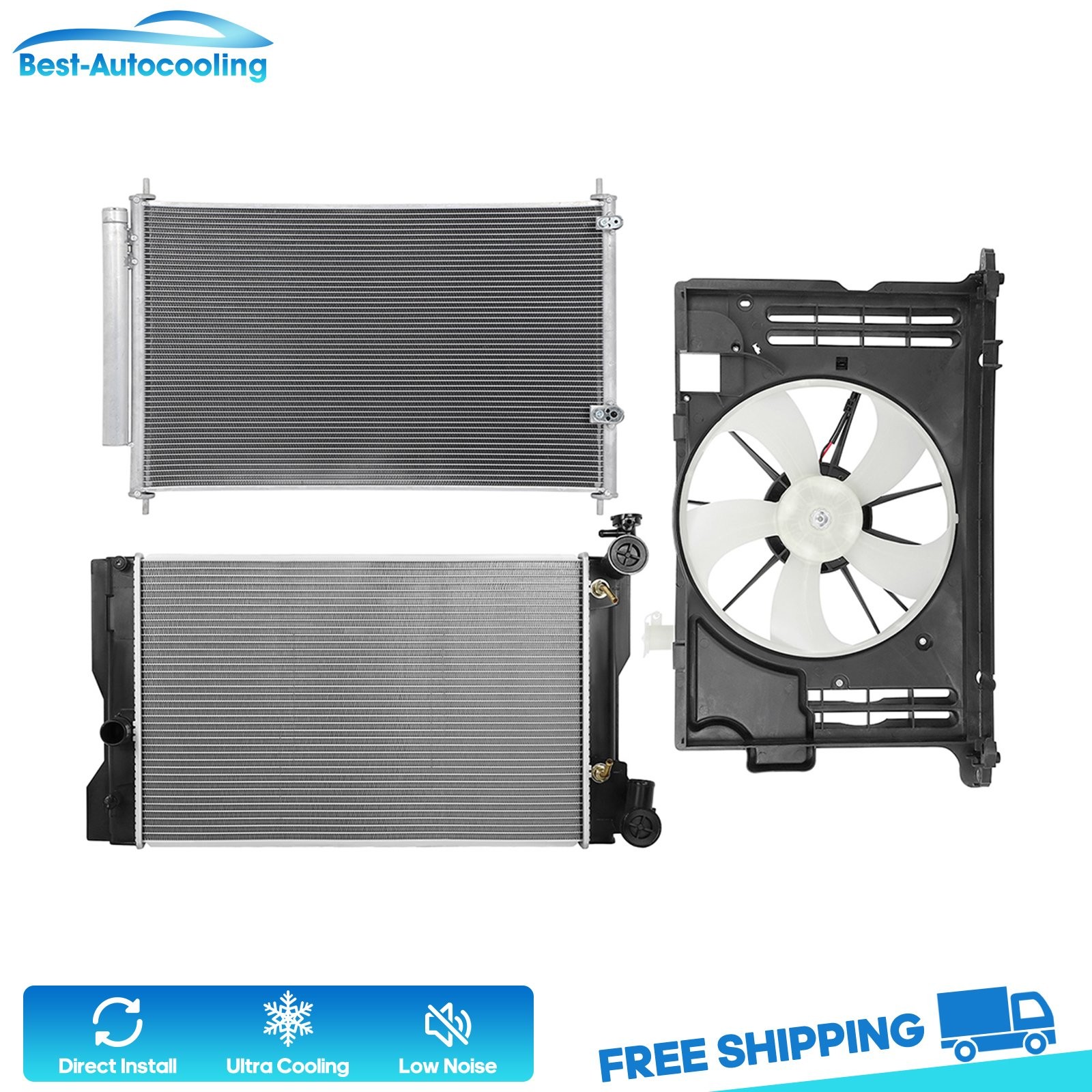

Aluminum Radiator Condenser & Cooling Fan Kit For Toyota For Corolla 2014-2015 For Sale - New and Used

Fitment:

• 2014-2015 Toyota Corolla
• ISO 9001 certified manufacturing plants
• High-Qualityfull aluminum construction core with increased cooling capacity for better radiator performance.
• DIRECT FIT & HIGH EFFICIENCY---OE standard for easy installation; Engine Coolant Radiator undergo rigorous testing before leaving the factory and adopts a sealed design to ensure that the coolant will not leak

​

A radiator is the key component of the engine’s cooling system. Its main role is to disperse a mix of antifreeze and water throughout its fins, which releases some of the engine’s heat while taking in cool air before continuing to pass the rest of the engine. Alongside the radiator is the spur line, water pump, and fan clutch. Each of these plays a different role in aiding the radiator to keep the engine cool. The spur line dispatches warm coolant to the heater core to produce hot air when needed, while the water pump sends the coolant to flow throughout the engine. Most importantly is the role of the fan clutch, which is to bring more air into the radiator and help lower the temperature of the antifreeze and water mixture.

• An unusual rise and fall in the instrument cluster temperature gauge
• The sight or smell of smoke coming from under the hood of the car
• Any amount of green liquid (coolant or antifreeze) collecting under the vehicle
• Visual evidence of rust on the components of the cooling system

​

​

• Auto Engine overheating
• Fan Noise/Wear
• Fan Fuse Blown
• Air Conditioner Can Not Dissipate Heat

How to Remove a Radiator Safely and Efficiently：

• Step 1:Wait until your car is cooled off.

• Step 2:Inspect all radiator connections. This includes hoses, hose connections, clips and relevant hardware. Get an overall picture of what exactly needs to come off before the radiator can be removed.

• Step 3:Once the engine has completely cooled off, drain the radiator fluid. Most radiators have a simple drain plug. Make sure you have a large drain pan under the outlet.

• Step 4:Save the coolant from the drain pan. You can filter and reuse the fluid once you’re ready to install the new radiator.

• Step 5:Remove the overflow tank. This is usually connected to the radiator with a small tube.

• Step 6:Unplug the electrical connection to the cooling fan. Similar to a headlight blub, just press the tab or clip that secures the connection, wiggle it off, and you’re good to go.

• Step 7:Remove the upper radiator hose. You’ll need pliers to loosen the metal clamp.

• Step 8:Remove the lower radiator hose. This is ALWAYS harder to access than the upper hose; you may have to jack your car up to find the lower radiator hose clamp.

​

• Step 9:If necessary, remove cooling lines from the automatic transmission.

​

• Step 10:Remove radiator mounting bracket.

How to Replace a Cooling Fan Safely and Efficiently：

• Locate the Radiator Cooling Fan---Turn off your car and allow it to cool off. Open the hood of your car and you will be able to see the radiator that is located at the back of the grill at the front portion of your engine compartment. The radiator cooling fan is attached at the back of the radiator through a mounting frame.​
• Disconnect the Power Supply---On the fan motor is an electric cable running towards the engine. Find the connector of the wires from your engine and from your radiator fan motorand disconnect it. Using two electrical tapes with different colors, note the connection of the wires so that you will not have a hard time reconnecting the wires later.
• Remove the Fan Housing---Using a wrench, remove the four screws located at each corner of the fan housing. Remove the fasteners at the sides of the fan housing as well. A radiator cooling fan housing is relatively large and you may need to remove all the obstructions like hoses and wirings so that you can extract the fan housing off your car. Hold the housing firmly and lift it out of your engine compartment. Be careful in removing the fan housing to avoid damaging it or the radiator. Place the fan housing on a clutter-free working table.
• Remove the Radiator Cooling Fan and the Fan Motor---The fan blade is either pinned or screwed to a shaft. With a screwdriver, loosen the fan blade and slide if off its shaft. You may need to remove a keeper that prevents the fan blades from moving up in the shaft up and down. As to the fan motor itself, remove it from the fan housing using a screwdriver
• Attach the Replacement Radiator Cooling Fan and Fan Motor---Install the new fan motor into the fan housing. Slide your replacement radiator cooling fan into the shaft, insert the keeper and secure the new cooling fan and keeper into place. Return the fan housing back into its proper place and secure the screws and the fasteners. Reattach the hoses and wires you removed in step 3.

For multiple purchases, please add items to your shopping cart and pay once for entire order.

We only ship to confirmed address, please make sure that the address is correct before you check out.If you need to change your address, please contact customer service

We have two warehouses in US, one is located in CA, and other one is located in GA. We will dispatch packages from the nearest in stock warehouse by recipient's address accordingly.All orders will be shipped out within 1 business day after payment is cleared.

All orders will be shipped out via USPS or UPS or Fedex express with a tracking number,the delivery time is about 3 to 8 working days.

Shipping services only cover 48 states and Washington DC in US Continental, while most of the time Alaska, Hawaii, Puerto Rico, American Samoa, U.S. Virgin Islands, Northern Marianas, Guam are not deliverable. USPS PO Box, APO Army Post Office, FPO Fleet Post Office addresses are not available

Some order will have an additional shipping cost due to package size or being outside of standard delivery area.

30 Days Free Return and Money Back

Refunds will be credited within 1 to 5 business days of receiving the return.

If you receive any incorrect items, or damaged or defective items during shipping, we will accept the return and pay for return shipping. Please note that photos of damaged items are provided when possible.

1 Year Warranty---Man-made damage by abuse or wrong operation is not covered by this warranty.

The full refund or replacement will be available for all faulty items

Please contact us before returning your item and we will send you detailed return instructions.

As a professional seller of automotive cooling system parts, Beat-Autocooling aims to provide high-quality automotive parts and a comfortable driving experience for everyone!

As a professional autoparts seller,From Radiator, Cooling Fan, Blower Motor and so on, it covers all car series in the American market, as well as various OEM parts.All products are rigorously tested to ensure driving safety.We also rigorously test materials for strength, durability and longevity to ensure that consumers receive products they can use with confidence.

Any Questions Please Message Us Before Order​

​Customers service center will operate from Monday to Sunday

​If you have any questions during the purchase process feel free to contact us, we are happy to help you!
