seven color backlights are and Installation- \"ACC\": Connect the car ignition detection cable
- \"B +\": Connect it to the positive terminal of the car battery.
- \"GND\": Ground / Iron / Negative battery.
- \"KEY1/ KEY2\": Only one of the cables is selected for wiring depending on the compatibility of the model and the steering wheel control system. If you use two steering wheel controllers, you need to connect 2 cables.
- \"BACK\": Connects to the rear camera input port.
- \"Lamp Control\": Connect it to the small lamp in the front of the car to turn on the button backlight.
- \"ANT CONT\": Connect the car radio antenna (no antenna, no wiring).
- Signal Input: Connect to the input port of the reversing camera.
- \"Audio / Video\": See wiring diagram (Note: \"AMP-CON\" cable has no output voltage and must supply the amplifier or subwoofer via the car\'s ACC ignition cable).
How to connect power cable:
- Red wire connects to ACC (ignition switch)
- Yellow wire connects to 12V battery positive
- Black wire connects to 12V battery negative
Note:The Installation size of this car radio is 180(W)*75(H)*70(D)mm, Please compare the size with your car dashboard.
Features:

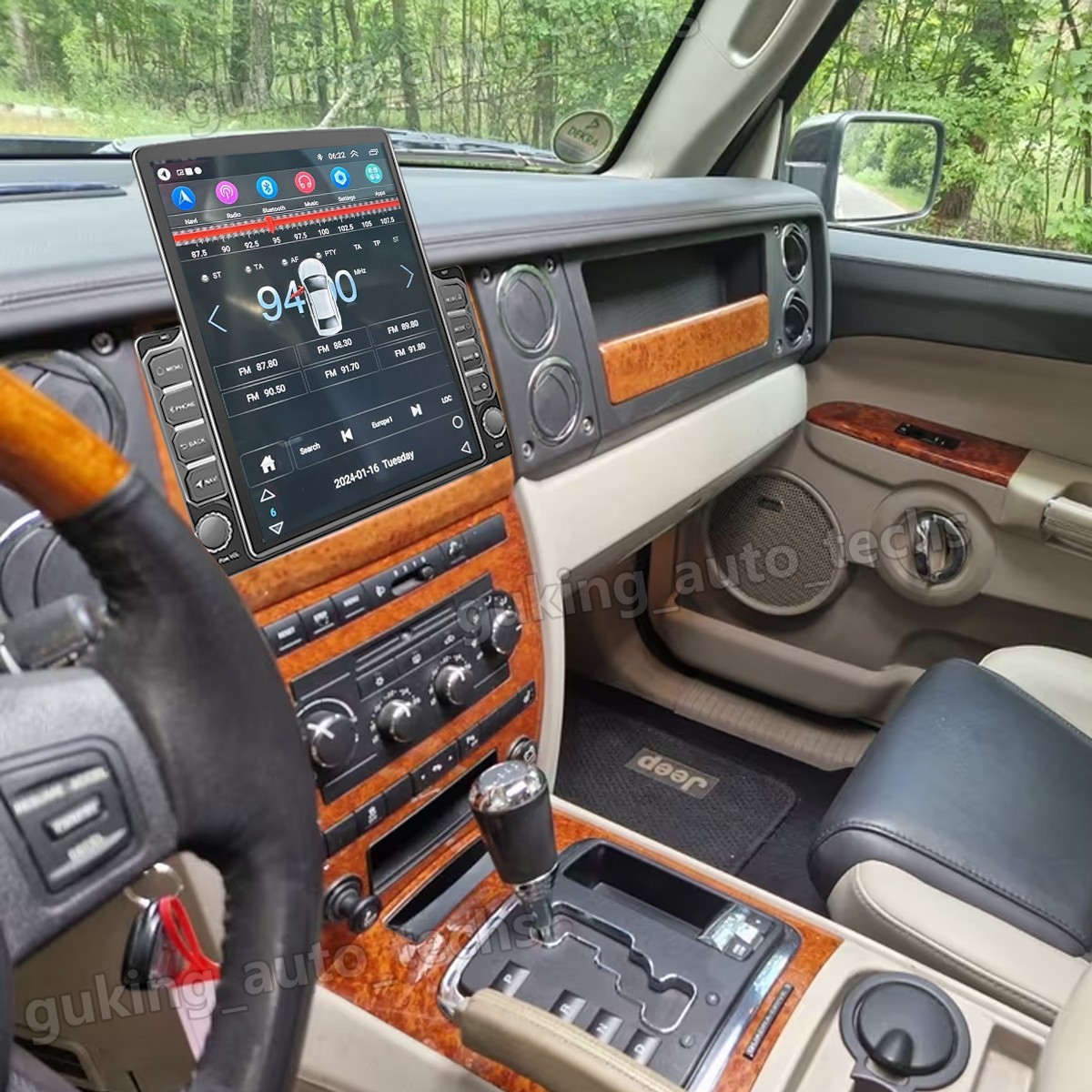

●HD 9.7\'\' 2.5D Tempered Glass Mirror auto radio player
●Wireless & Wired Carplay: wired or wireless Carplay in-vehicle system can closely integrate the user\'s iOS device and iOS experience with the dashboard system. Users who use wireless Carplay can connect to the car system via Bluetooth to realize voice-controlled navigation, make calls, send and receive messages, and listen to music. It is only available for iPhone （ZLINKS APP）
●Wireless & Wired Android auto: wired or wireless Android auto in-vehicle system can closely integrate the user\'s Android device and Android experience with the dashboard system. Users who use wireless Android auto can connect to the car system via Bluetooth to realize voice-controlled navigation, make calls, send and receive messages, and listen to music. It is only available for Android phone（Android phones need to download android auto APP）
●Built-in GPS Navigation: Users can purchase directly from play store for offline navigation. With wifi connected, Google Maps can be used perfectly, you can go anywhere you want and never get lost again.
●High definition 1080P: Full capacitance touch screen for easy operation, well designed user interface for car only
●Built-in WIFI: Connect to WIFI, and you will find a new world，the most convenient one is the online map.
●Rear camera: support AHD high-definition 720P camera image input，you can switch between CVBS and AHD simply by choosing in the settings
●DSP function: High fidelity, reproduced sound highly similar to your original sound
●Steering wheel control: Through it you can control the functions you need by steering wheel, more convenient
●Built-in Bluetooth with A2DP/Hands Free/Phone book:Bluetooth hands-free calls,Bluetooth music player,Auto loading phonebooks
●Driving recorder: You can choose a recorder, and the car has playback, the evidence can be retained(requires optional)
●Double USB adapter input
●Support file manager: Support download, install and delete over thousands of android apps
●Support multilanguage: Support languages, up to 40 national languages
●You can enjoy music from you mobilephone without any cables, and also support USB connetion.
●FM Radio: Online music you can transfer the music to the car stereo by FM to enjoy the original car stereo sound,with 18 preset stations
●Time Setting:You can use the network or GPS to open the date and time automatically, or you can adjust it manually.
●Support external microphone
Specifications：
System:Android 13
Chipset:8227L-DEMO
Screen size:9.7\'\'
Memory:2GB (RAM)+32GB (ROM)
Screen resolution:1024*600
Radio chip:MT6625
Power output:4*45W
Work temperature:-20℃-75℃
Steering wheel control function:Support
Power amplifier chip:TDA7388
Radio Band:FM/RDS
Video output:Support
Reversing input: AHD/CVBS
External microphone: support
Split screen: support
Maps:Built-in offline maps(requires internet to download data)
WIFI:Support
USB:Double USB interface
Audio format:APE/FLAC/WAV/MP3/WMA etc
Video format:MKV/RMVB/AVI/MP4/MDV etc
Picture format:PNG/JPEG/JPG/GIF/WBMP/BNP etc
Factory setting keyword:8888 or 3368
Package Included:
1 x Car MP5 Player
1 x Power Cable
1 x GPS Antenna
1 x Backup Camera
1 x RCA Input and Output
2 x USB Cable
2 x Metal Frame
4 x Screw
1 x Instruction manual
Tips:
Q1. Why can\'t turn on the car radio ?
Please check the Voltage of car radio: 12V
When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
Replace the same type of insurance to test the car radio.
Note: Please must use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.
Q2. Why the car radio will show \"No Signal\" when we reversing?
Please check if the camera\'s line is properly connected to the car radio.
Note: The video port of rear camera must insert the \"CAMIN\" port of car radio.
Q3. Why does the camera display \"!\" and \"Can\'t watch video while driving\" when I use USB to watch videos?
Please turn off the \"Video Warning\" function in the settings,then will be OK.
Q4. Why can\'t search FM?
No radio antenna inserted.
Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted.
The signal of your location is not good. Please go to a better place to test again.
The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.
Q5. Why can\'t connect the Bluetooth of car radio?
Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player\'s Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
Please try to use another mobile phone to test this function.
All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minute.
