I have had a few people ask why the pictures look the same as my other kit. I currently have no installed pictures. Sold 1st kit as a tester to confirm fitment. Received video of it installed and confirmed functionality, But buyer ghosted me on the pictures. This kit and the heavier duty are essentially the same only difference is the bracket distance from frame and bolt pattern on the brackets. Once I get install pics I will update my listing. Thank you for understanding

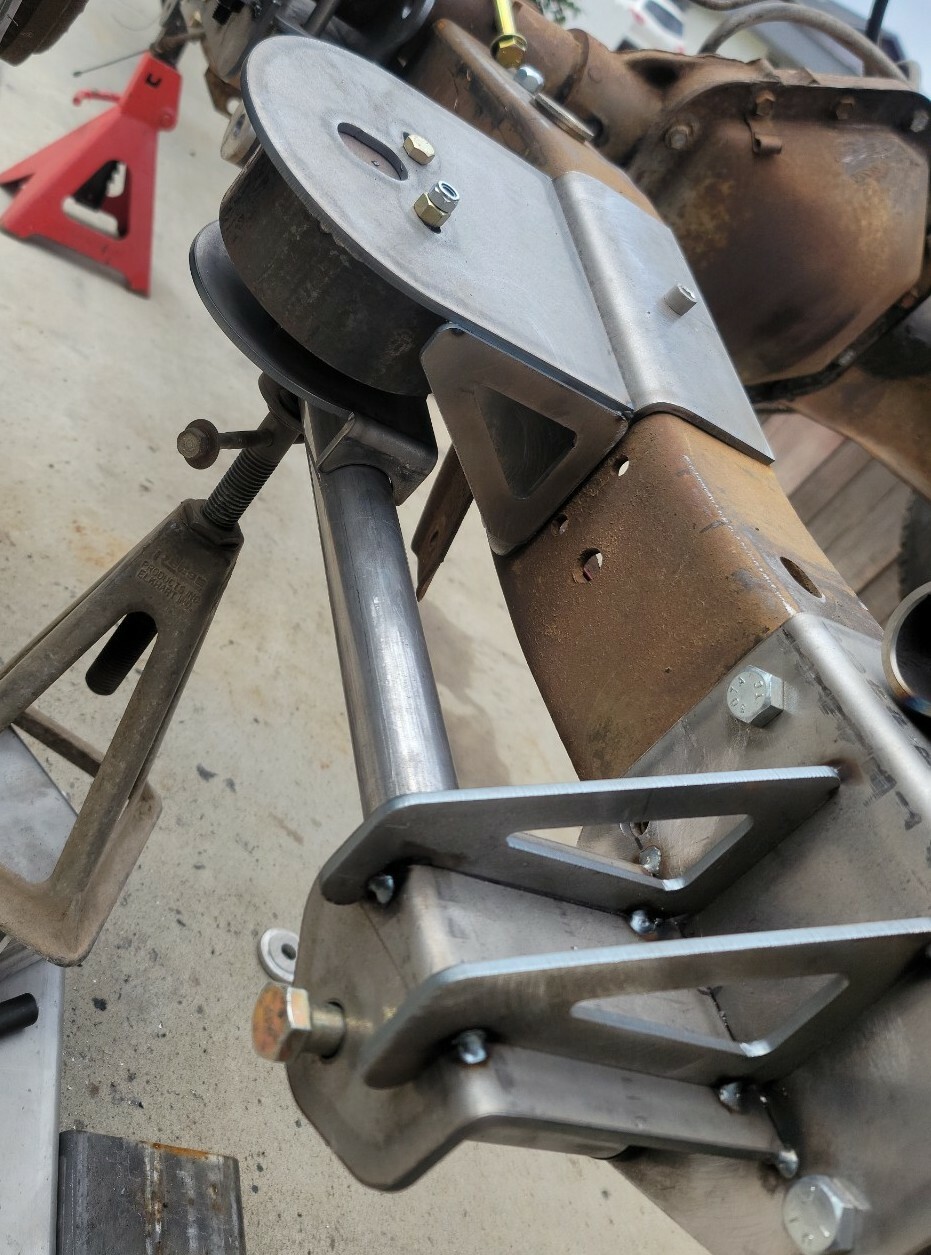

73-87 C10 weld On 4 Link with a cantilever set up for the airbag. All brackets are 3/16". The bars on the 4 link are 1.5"X 1/8 wall thickness tubing. Comes fully welded ready to install to existing mounting holes, you will have to drill out the holes to 1/2" as from factory they are about 7/16". The axle brackets will be shipped loose for you to weld on your axle. I am also including a watts link.
The bars for the cantilever are 3/16" wall tubing. It will come with weld on axle brackets. The front mount and rear cantilever will bolt up to stock hanger mounts. Look at picture and confirm your hanger has same bolt pattern otherwise it will not bolt up. Made to use a 10 bolt or any axle with 3" axle tubes. If you are wanting to use a different axle, email me so i can confirm i can accomodate that. Will come with all the hardware and bare metal. Can powdercoat all parts with exception of axle brackets for additional 100 dollars for any simple color
Lead time is 5 days since they are all built to order and demand. I will be making a few variations of this kit to meet everyone's budget. Take a look at all my other sales for these trucks. This kit was tested on a shortbed c10. which will work on only c10's. This is a modified version of my heavier duty kit made to work on the C10 trucks
If you want to use on single cab c20 email me so I can adjust bolt pattern to bolt up in stock location. Designed to work on trucks using 56" springs. If your truck has 52" ones, confirm that the frame is drilled in the rear to move the spring hanger back 4" for the longer springs. They all should come predrilled but need to double check.
For offroad use only.
