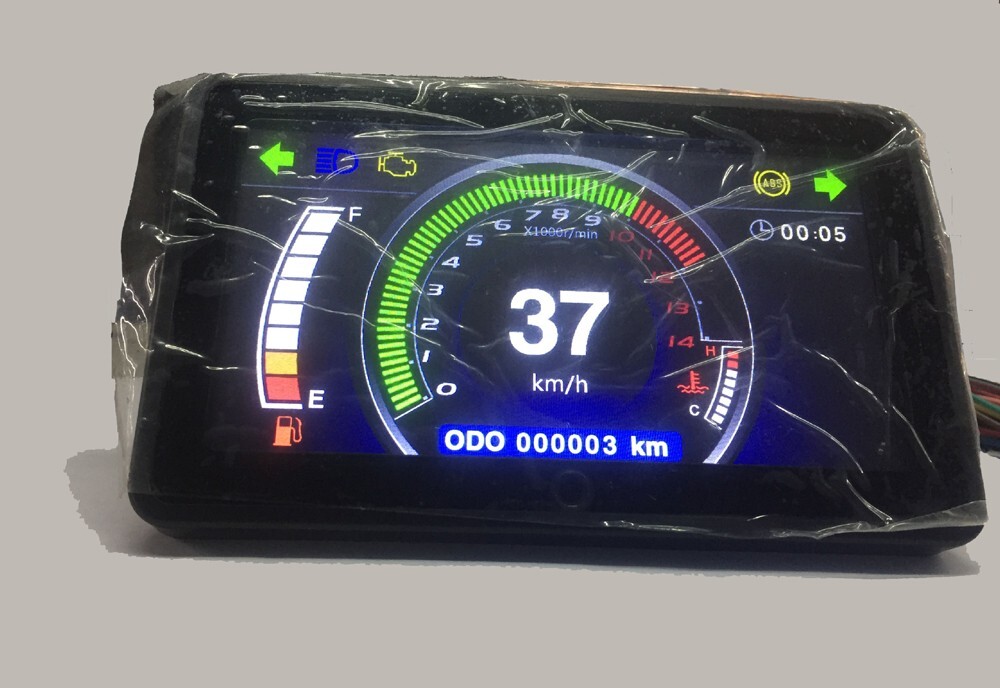

7.9" Integrated Motorcycle LCD Speedo Odo Tacho Meter Gauge 12V Universal Blue:
$127.59

Fitment:Universal for 12V / movement: whole table + wiring harness + Nuocheng speed sensor

Harness: CY1985 harness

Working voltage: 12V

Product gross weight: 677G

Product net weight: 587G

Accessories line length: 86cm

Product size: 17.2*4.8*10.6CM

Packing size: 21.2*13.7*9.1cm

Speedometer: LCD display speed, 36.2Hz corresponds to 63km/h

Mileage: Total mileage ODO display range is 0-999999km

Mileage clear: Subtotal mileage is not saved and the boot display is 0. The total mileage is cleared: within 15 seconds of starting, one of the left and right turns and the high beam are turned on and off more than 7 times, and the total flashes 4 times and then becomes zero.

Tachometer: 166Hz corresponds to 10*1000r/min

Fuel: no driving damping time, from 8 squares to no grid for a total of 10 seconds (no grid above 92 euros; 91-86 euros 1 grid; 8 grids below 14 euros)

Water temperature: no driving damping time, from 8 squares to no grid total 10 seconds (no grid above 156 euros; 1 grid flash at 27-17 euros; 8 grids below 17 euros)

The file is displayed: when there is no gear access, the gear position is not relevant. 1-6, N files are negative control

Button definition:1 touch button:[1] short press, total ODO and subtotal TRIP switching[2] After 4 seconds after the normal display interface of the power-on door, press the left button for 3 seconds in the ODO state, and the metric KM is switched to the English MILE.[3] After 4 seconds after the normal display interface of the power-on door, when the total ODO interface is displayed, press and hold for 3 seconds to enter the clock setting. The clock hour is displayed in red, short press plus 1, long press for 3 seconds to switch to the red display. Short press and add 1 and press and hold the button for 3 seconds to save and exit.[4] In the subtotal TRIP interface, press and hold the button for 3 seconds, and the subtotal is cleared.Multimedia: NoneClock: Yes, 24 hours, with battery, keep the timer in front of the clockMCU version: V0-0-3ARM version: C2-CY1985-A1-22-V003
