Specification:
Condition: 100% New and High Quality
Type: trailer axle
Warranty: 1 Year
Axle Specifications: 3,500 lbs Idler Trailer Axle (Capacity 3.5K)
U-bolt kit: No included
Hubs/drums: 5 Lug Drums
Spring Pads: Welded on Axle
Brake: no brakes
Hubs: 5 lug idler hubs installed on axles.
Brake Flange: 4 Bolt Welded on Axle
Pre-Greased: Yes
Suspension: Leaf Spring
Cambered: Yes
Under-slung: Yes (the axle sits on top of the springs)
Features:
An axle is a component that holds wheels in place and rotates with them to send or receive mechanical power or allow the wheels to freely rotate on it.
The axle will bear and share the weight of the trailer.
Become a carrier for installing shock absorption systems, braking systems, tires, and steel rims.
Axles come fully assembled
Packed with High-Temp Axle Grease
Underslung - Axle is welded with spring seats on the bottom
Allows for lower ride height
For optimal usage, use with double eye springs
Removable rubber plug on the hub cap with easy access to a grease-able zerk fitting
Grease your axle without pulling off your whole entire hub
A better highway experience
Very Important to get correct axle you need please double check and triple check your bolt pattern and your spring center measurement. See below on how to properly measure axle.

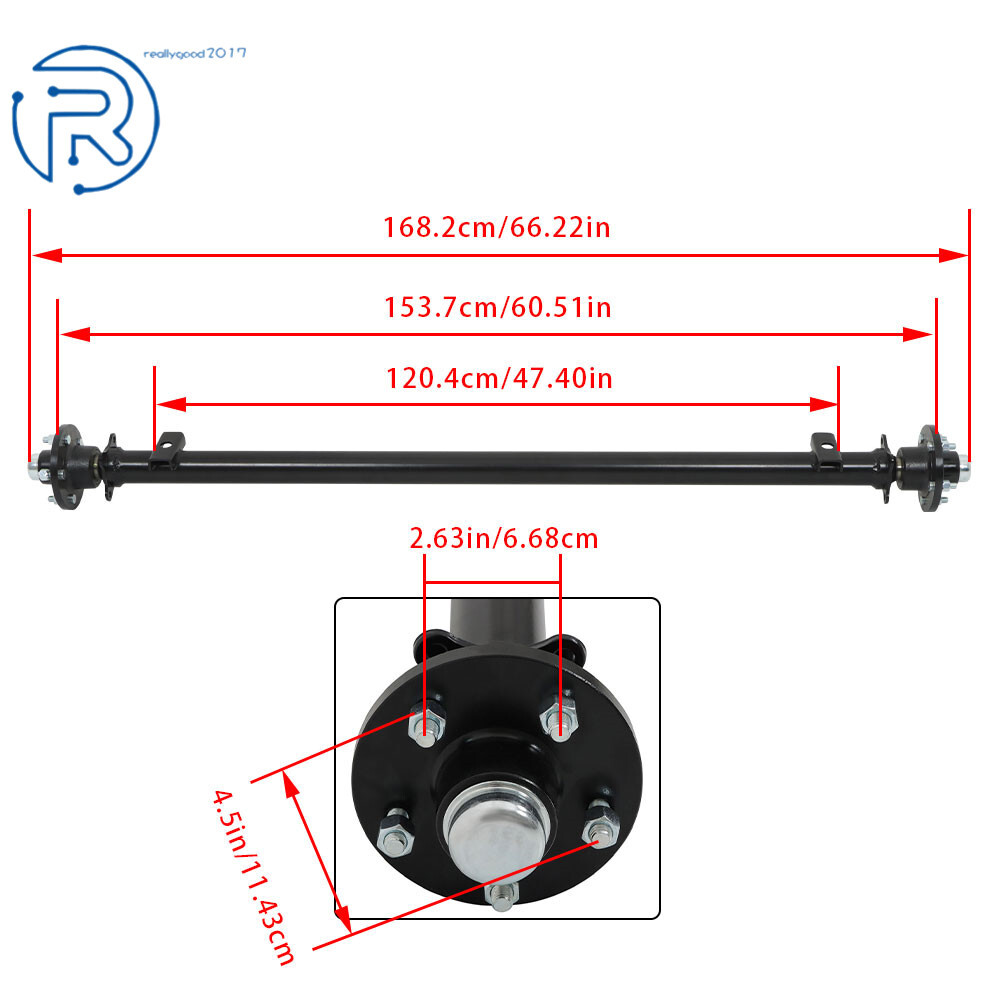

How to Determine what axle you need:
Hub Face (HF):
Refers to the length of the axle measured from the base of one wheel stud to the base of the wheel stud on the opposite side of the axle.
(where the studs protrude out from the hub or where the two wheels butt up to each other)
(when hubs are mounted on the beam).
You can measure from one hub where the studs start on the drum, to the hub on the other side of the axle.
You can also get this by measuring from where the two wheels butt together on one side of the axle to where the two wheels but up together on the
other side of the axle. (This measurement is important but not a deal breaker if its a inch or so different than what we show)
Spring Center (SC):
is the approximate width of your trailer. It is measured from the center of the spring seat on one side of the axle to the center of the seat on the other.
This axle beam comes with the spring seats welded on.
The easiest way to measure this is to have a friend help you. Have your friend hold the tape measure in the center of one spring one the axle while
you pull the tape measure down the same axle to the other side of the axle to the center of the other spring on the same axle.
This will give you your (SC) or Spring Center Measurement.
If your like myself and do not have many friends to help you out. The easiest way to measure when by yourself is:
Hook the tape measure on the outside of one spring, pull down the axle to the inside of the other spring on the axle axle.
This will also give you your (sc) or Spring Center measurement.
(This measurement is the most important measurement to get, so please double and triple check your measurement)
Application:
Trailer Axle Design for use on Light Duty Trailers
Utility Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle, BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More
Package Includes:
1 × 3,500 lbs Idler Trailer Axle w/o U Bolt Kit
Notes:
This 3.5K 5-lug idler axle is an excellent choice for your new light-duty trailer, and we know you'll love how easy it is to install. The axle comes fully assembled, Very Important to get correct axle you need please double check and triple check your bolt pattern and your spring center measurement. The spring seats are welded to the bottom of the axle, which allows for a lower ride height. If you have any questions about this axle, then please contact us as soon as possible. We're always here to help.
