Special Note: Adapters does NOT work for Stock/Orginal Rims
Fitment:
- 2014-2021 Honda Pioneer 700 700-4
- 2014-2021 Honda Pioneer 700
- 2015-2021 Honda Pioneer 500

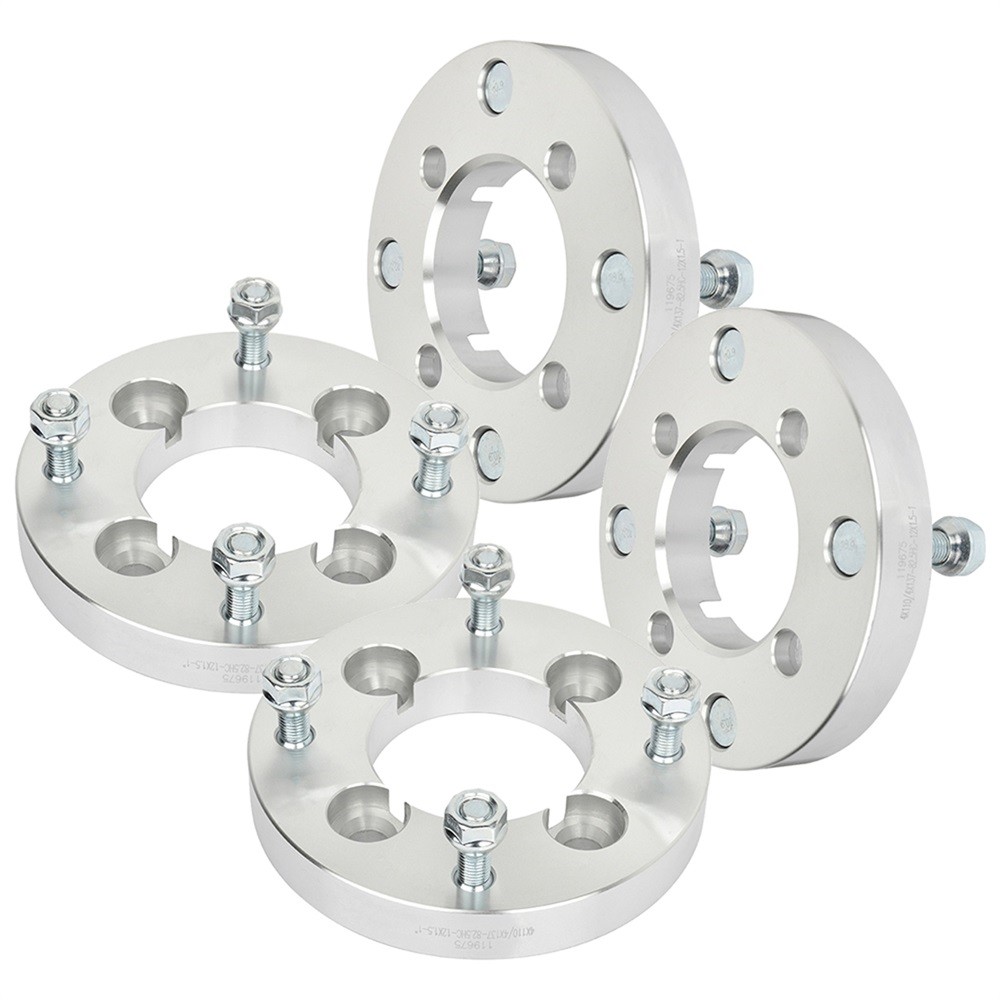

Item Description:
- Spacer Thickness: 1 inch or 25 mm
- Vehicle Bolt Pattern:4x110 mm
- WheelBolt Pattern:4x137 mm(Note: Bolt Pattern Change, Adapters doesNOTwork for stock/ orginal rims)
- Thread Size: 12x1.5
- Bolt Shack Length: 35 mm
- Torqued Down By Hand At: 70-80 FT/LBS
- Hub Bore: 74 mm
- Number of Pieces: 4
Note:Some ATVs require different bolt pattern for front & rear.please check the bolt pattern and studs of your ATV before purchase;
How to install the wheel spacers:
- IMPORTANT - ADAPTER OR SPACER MUST SIT FLUSH AGAINST VEHICLE HUB, AND WHEEL MUST SIT FLUSH AGAINST ADAPTER OR SPACER! Stock studs must be trimmed down (shortened) if they protrude past the surface of the adapter or spacer. If not, vibration or other problems can occur. Some wheels have pockets that may allow for no stud trimming. If not, studs MUST be trimmed.
- Make sure the mounting surface (vehicle hub) is clean and For flat, and remove all retaining clips.
- Install the adapter to the vehicle, with the proper lug nuts, and torque to manufacturer’s wheel torque specs.
- Install the wheel to the adapter by torquing to the vehicle manufacturer’s wheel torque specifications (again, max 140 ft-lbs). Please assure the proper thread engagement (6 to 8 full turns) on lug nuts or bolts.
- Drive the vehicle. If no problems (noise, vibration, anything out of the ordinary), drive about 5 miles, then re-torque the lug nuts attaching the spacer or adapter to the hub.
Important Attention:
- Vehicle fitment compatibility is only a guide, please ensure that these are the correct ones for your vehicle.
- For 1 inch or less or special adapters, if the stock studs are longer than the adapters, and the wheels do not have hollow spot in them,you may need to grind, or cut your existing lugs if you don't choose to purchase shorter studs.
- For 2 inches or more or special adapters, if the stock studs are shorter to hold the spacer safely, you need to exchange to small sizeadapters or purchase longer studs yourself.
- For special vehicles, maybe the studs of adapters are shorter to hold the wheel.
Item Include:
4PCSWheel Spacers
Item SpecificsUPC Does not applyBrand book-autopartsType Wheel AdaptersManufacturer Warranty 1 YearPerformance Part YesVintage Car Part NoUniversal Fitment NoManufacturer Part Number 13029405Fitment Type Direct ReplacementOE/OEM Part Number 4x110 to 4x137 wheel adapters 1 inch with 12x1.5 StudsInterchange Part Number Only work with 4x137mm Wheel, NOT original wheelSuperseded Part Number Some ATVs require different bolt pattern for front & rear.Material High Quality t6 6061 Billet AluminumQuantity 4pcsSurface Finish CNC Machined Polished Aluminum FinishThickness 1" or 25mmWheel Bolt Pattern 4x137mmHub Center Bore 74mmBolt Pattern 4x110 Hub on 4x137 Wheels, 4x110 to 4x137Torqued Down By Hand At 70-80 FT/LBSVehicle Bolt Pattern 4x110mmThread Pitch 12mm x 1.5 or 12x1.5 or M12x1.5Stud Grade 10.9Lug Patterns 4 LugsBolt Shank Length 35mmColor SilverCentric Lug Centric (No Lip)Hubcentirc NoPackage Gross Weight 13.05 lbs.Note Only work with 4x137mm Wheel, NOT original wheelFeatures Easy InstallationItems Included 4 pcs Wheel AdaptersPlacement on Vehicle Front Rear Left RightSpecial Note Adapters does NOT work for Stock/Orginal Rims
