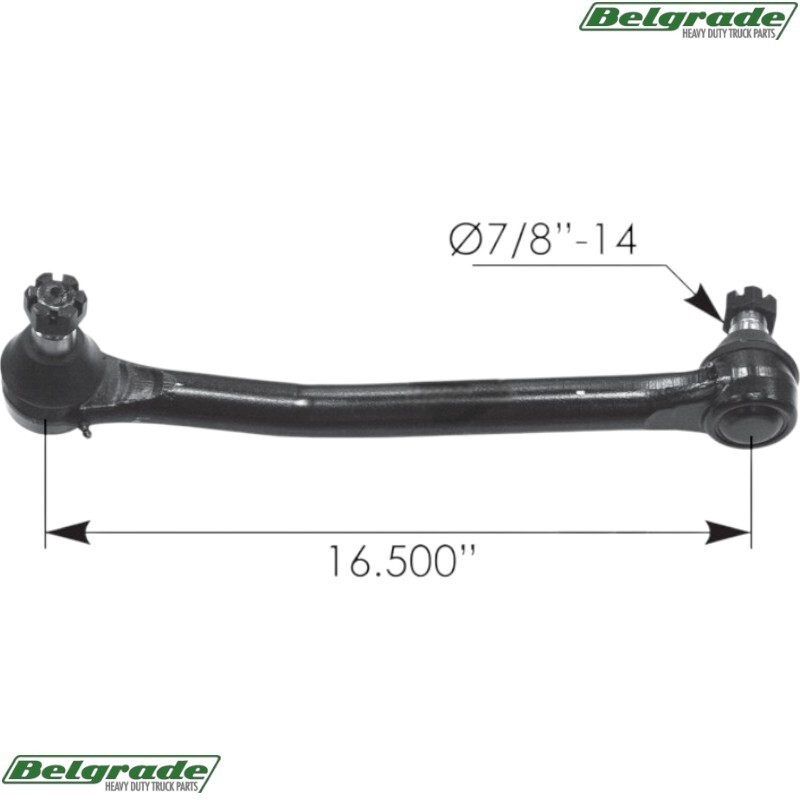

463.DS55241 Drag Link 16.500in C to C IHC LH 3558241C91:
$159.95
- 463.DS55241 - Drag Link 16.500in C to C IHC LH
- 16K-20K Left Hand
- 73/74/75/76/7700 SEVERE SERVICE 01 and UP
- Applications: International
- OEM/OE Reference: 3558241C91, 3541117C91, to C: 16.500”
- Type: N-S
- E to E (A): 14.500”
- Shaft Dia. (A): 1.375”
- Male/Female: Male
- Shaft Side Thread (E): 1-1/8”-12 (RH)
- Taper Pin Minor Dia.-1 (B): 0.967”
- Taper Pin Major Dia.-1 (C): 1.102”
- Taper Pin Length-1 (D): 1.080”
- Taper Pin Thread-1 (E): 7/8”-14
