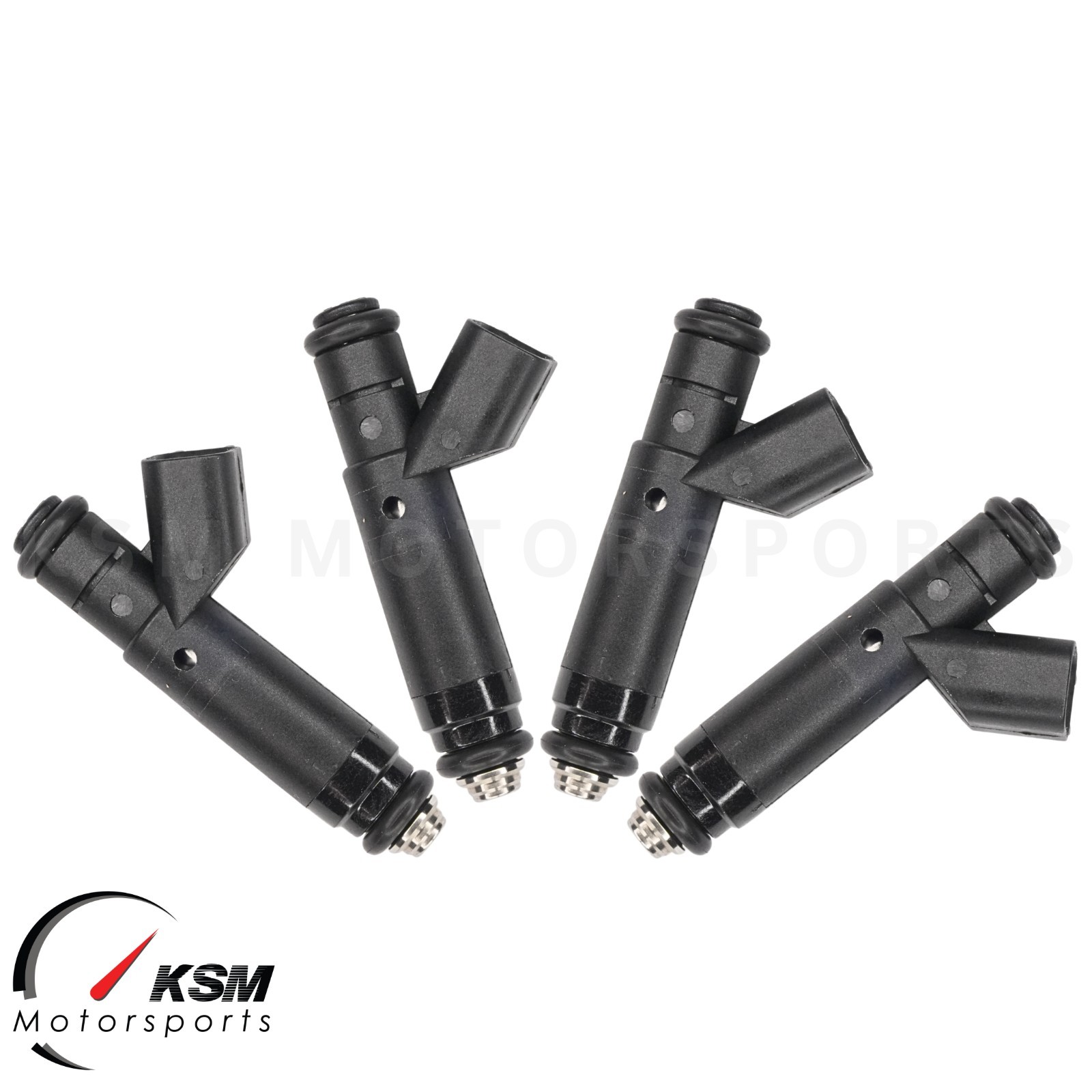

4 x 152lb 1600cc Fuel Injectors (Long Style) FI114191 60mm EV6/USCAR connector For Sale - New and Used

4 x 152lb 1600cc Fuel Injectors (Long Style) FI114191 60mm EV6/USCAR connector E85

Details:

• Quantity: 4 pieces
• Customized Flow Rate at 43.5 PSI / 3 bar: 1600 cc/min, ≈152 lb/hr
• Manufacturer Part style="font-size: large;">Reference Part Numbers:FI114191 / 108-191 (108191)
• Manufactured with precision to meet quality standards; Easy installation
• Condition: New
• 1-hole nozzle

Specifications:

• Body Style: Long Body Fuel Injector
• Connector:USCAR /EV6
• Coil Resistance: 12.5 Ohms / High Impedance / High-Z (No ECM driver modifications required)
• Gain: 0.11ms/mg
• Offset: 0.055ms
• Turn on time @ 14VDC: 1.14ms
• Turn off time: 0.85ms @ 600KPa
• Series: fit DEKA 4 ( DEKA IV )
• Spray Pattern: 30 Degree Spray Cone
• Robust design
• 1 year warranty
• Factory fitted with Viton upper and lower o-rings
• Low Impedance performance characteristics with High Impedance Compatibility
• Compatible Fuels: Pump Fuels 95/98, Race Fuels, Alcohols, All known Ethanol Blends including E85

Fitment details:

• Overall Length: 74 mm
• O-ring to O-ring Length: 60 mm
• Body diameter: 16 mm
• O-rings diameter: Top and bottom 14,5 mm

Dimensions, other than the connector, are identical to the FI114961 EV1 Siemens Deka IV Long Injector.

Despite the high flow rate, they are linear and controllable at low pulse widths and have been used in ULEV applications! This allows you to use a larger injector than normally possible without hurting idle and low speed driveability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector.

These injectors are able to function at high fuel pressures and don’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures.

The EV6 / USCAR injector connector can be found on many late-model GM (LS2, LS3, LS7), Dodge (Hemi), Ford (Modular) and select import motors.

These are the correct injectors for all 60mm applications.

---
