Radiator Detail: Core Size: 17-3/4\" H x 26-1/4\" W Overall Size: 19-1/2\" H x 32\" W Upper Inlet 1-1/4\" located on the Driver side Lower Outlet 1-1/2\" located on the Passenger side Transmission Oil Cooler: Included Trans Cooler Details: M12*1.25 New radiator cap include 4 Rows Of Tubes

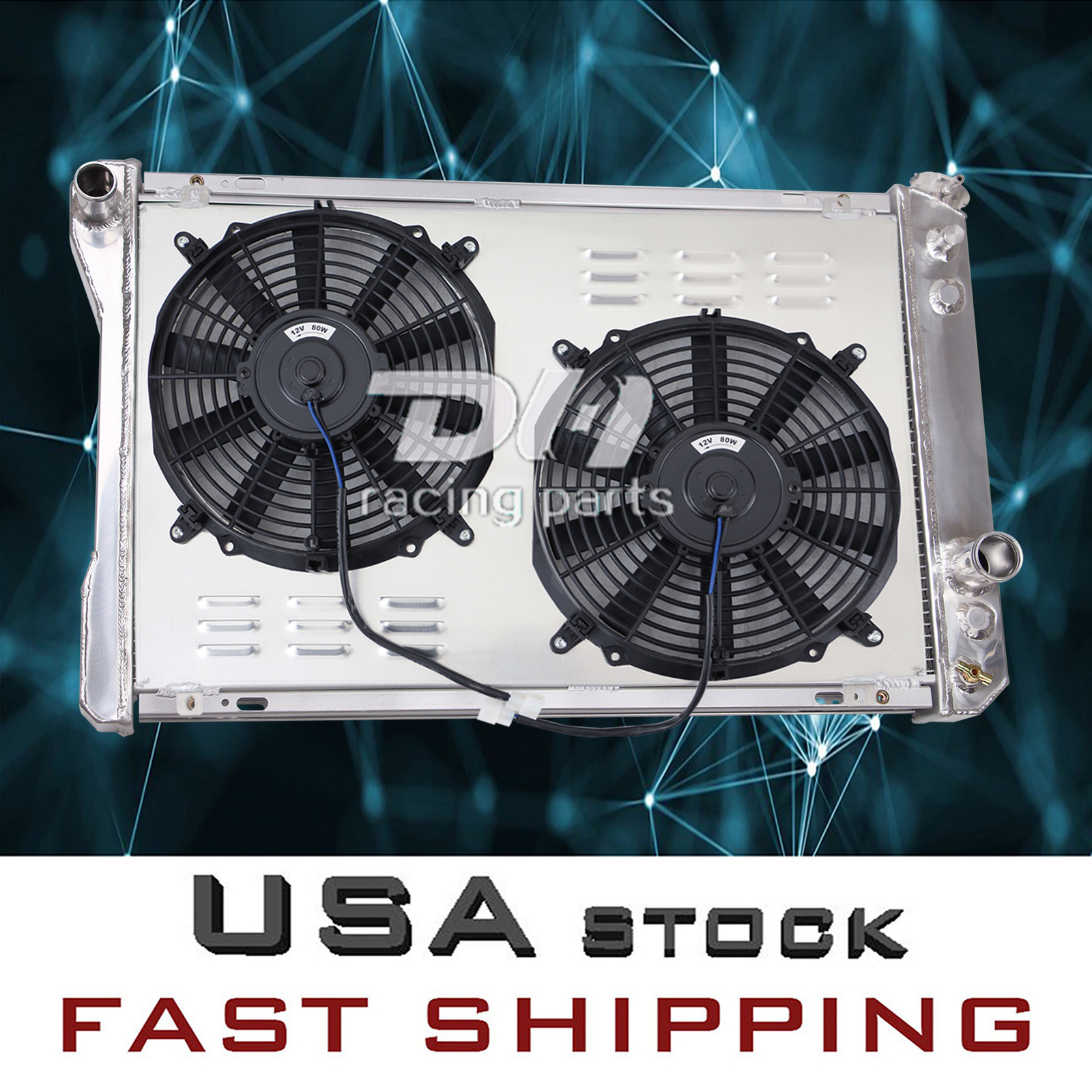

This Listing Is Including: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12\" Fans
Fan Size: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050\" Thickness (in): 2.500\" Number of Blades: 10 S-Type blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Note: Being in Compatibilities Does NOT Guarantee Fitment. Please verify your fitment before ordering.
Application: 1982-1984 CHEVROLET CAMARO 2.5L - 5.0L (26\" WIDE CORE ONLY) 1985-1986CHEVROLET CAMARO 5.0L (26\" WIDE CORE ONLY)
1987-1992 CHEVROLET CAMARO 5.0L - 5.7L 1982-1984 PONTIAC FIREBIRD/TRANSAM 2.5L - 5.0L 1985-1986 PONTIAC FIREBIRD/TRANSAM 5.0L 1987-1988 PONTIAC FIREBIRD/TRANSAM 5.0L - 5.7L 1989-1992 PONTIAC FIREBIRD/TRANSAM 3.1L - 5.0L - 5.7L Radiator Fitment: For Engines using 26-1/4\" Wide core Radiator only FITS AUTOMATIC OR MANUAL TRANSMISSIONS
2. The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure.
3. The radiator fan does not turn, resulting in high temperature in the water tank.
4. Drain the air from the cooling system. Refer to the user manual or repair manual.
5. Please refer to owner\'s manual to add coolant.
6. Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns.
7. Please stop the vehicle immediately, when “ENGINE OVERHEAT/High Temperature” shows on the dashboard or steam comes out from under the hood.
8. Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries.
9. Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure.
