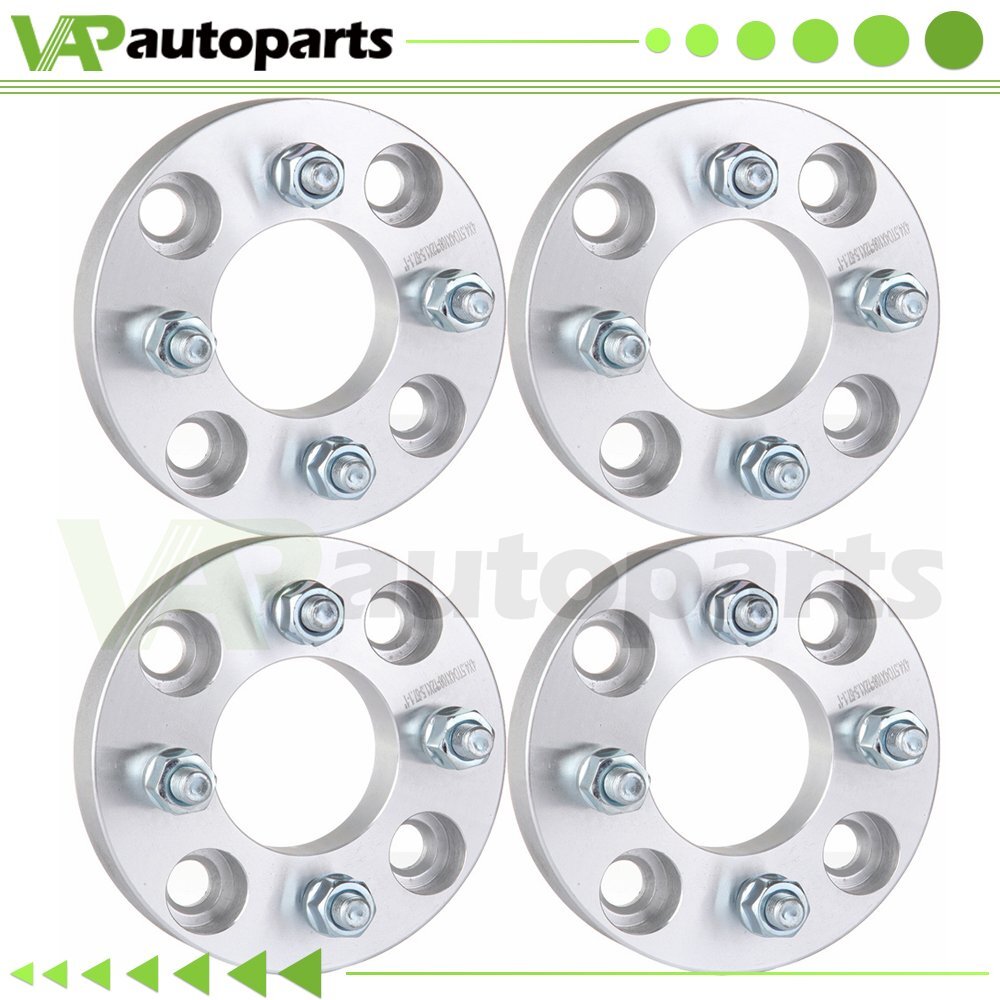

Product Specifications:(Please make sure you take the proper measurements before purchasing)Quantity: 4pcsThickness: 1 inch (25mm) per spacerHub Bore Size: 67.1mmVehicle Bolt Pattern: 4x4.5" (4x114.3mm)Wheel Bolt Pattern: 4x100mmThread Pitch: M12x1.5Compatibility Information:(Please check the compatibility chart carefully before purchasing)AcuraAcura CL 1997-1999Acura Legend 1986-1990Acura TL 1995-2000Acura Vigor 1992-1993EagleEagle Summit 1989-1993FordFord Festiva 1988-1993 4 Pcs 1" Wheel Adapters 4x114.3 to 4x100 Put 4x100 Rims on 4x4.5 Hubs 12x1.5
Product Specifications:
(Please make sure you take the proper measurements before purchasing)
Quantity: 4pcs
Thickness: 1 inch (25mm) per spacer
Hub Bore Size: 67.1mm
Vehicle Bolt Pattern: 4x4.5" (4x114.3mm)
Wheel Bolt Pattern: 4x100mm
Thread Pitch: M12x1.5
Compatibility Information:
(Please check the compatibility chart carefully before purchasing)
Acura
Acura CL 1997-1999
Acura Legend 1986-1990
Acura TL 1995-2000
Acura Vigor 1992-1993
Eagle
Eagle Summit 1989-1993
Ford
Ford Festiva 1988-1993
Honda
Honda Accord 1990-2002
Honda Prelude 1992-1996
Hyundai
Hyundai Accent 1998-2000
Hyundai Elantra 1992-2000
Hyundai Sonata 1989-2001
Hyundai Tiburon 1997-1999
Kia
Kia Optima 2001-2004
Kia Spectra 2005-2008
Kia Spectra5 2005-2008
Mazda
Mazda 626 1983-1987
Mazda RX-7 1984-1988
Mercury
Mercury Capri 1991-1994
Mercury Tracer 1988-1990
Mitsubishi
Mitsubishi Galant 1985-1996
Mitsubishi Lancer 2002-2006
Suzuki
Suzuki Forenza 2004-2008
Suzuki Reno 2005-2008
Suzuki Verona 2004-2006
Toyota
Toyota Celica 1976-1985
Toyota Cressida 1985-1988
Toyota Van 1984-1989
Volvo
Volvo S40 2000-2004
Volvo V40 2000-2004
How to choose the correct wheel spacers:
STEP. Check 3 specifications
The following is the easy and simple way to check the bolt pattern/PCD, center/hub bore and thread pitch. If you donot sure, please just message us with the year, make and model of vehicle.
1). Check Vehicle Bolt Pattern/PCD For 4-lug, 6-lug, 8-lug, measure the segment from the CENTER of a bolt hole TO the CENTER of another hole. 5 lug is different, you need to measure the back of the hole to the center of the second bolt hole (not center point).(See Bolt Pattern Diagram below)
2). Check Vehicle Hub/Center Bore Size Measure the diam of the center bore on hub, make sure the spacer's diam is equal to or bigger than the axle diameter.
3). Check Vehicle Thread Pitch There are different types of studs, such as M12x1.25, M14x1.5, M12x1.5, 1/2"x20, 9/16"x18, please make sure the studs of wheel spacers is the same as the vehicle's, otherwise the spacer will not fit.
How to install the wheel spacers:
1). IMPORTANT - ADAPTER OR SPACER MUST SIT FLUSH AGAINST VEHICLE HUB, AND WHEEL MUST SIT FLUSH AGAINST ADAPTER OR SPACER! Stock studs must be trimmed down (shortened) if they protrude past the surface of the adapter or spacer. If not, vibration or other problems can occur. Some wheels have pockets that may allow for no stud trimming. If not, studs MUST be trimmed.
2). Make sure the mounting surface (vehicle hub) is clean and flat, and remove all retaining clips.
3). Install the adapter to the vehicle, with the proper lug nuts, and torque to manufacturer’s wheel torque specs.
4). Install the wheel to the adapter by torquing to the vehicle manufacturer’s wheel torque specifications (again, max 140 ft-lbs). Please assure the proper thread engagement (6 to 8 full turns) on lug nuts or bolts.
5). Drive the vehicle. If no problems (noise, vibration, anything out of the ordinary), drive about 5 miles, then re-torque the lug nuts attaching the spacer or adapter to the hub.
Item SpecificsBrand :Ignition coilManufacturer Part Number :IG81955001ilType :Wheel SpacersQuantity :4pcsThickness :1 inch / 25mmVehicle Bolt Pattern :4x4.5" or 4x114.3mmWheel Bolt Pattern :4x100mmHub Bore Size :67.1mmHubcentric :NoThread Pitch :M12x1.5 / 12mmX1.5 / 12x1.5Stud Grade :10.9Color :SilverLug Patterns :4 LugsMaterial :High Quality T6-6061 Billet AluminumSurface Finish :CNC Machined Polished Aluminum FinishPlacement on Vehicle :Left Right Front RearFitment :for Acura TL Ford Festiva Hyundai AccentInterchange Part Number :fits 2005-2009 Kia Spectra5 1990-2002 Honda AccordOther Part Number :for honda accord wheel spacersSuperseded Part Number :4x114.3 to 4x100 wheel spacers adaptersWarranty :1 YearReturn :Free 30 day returnsDelivery Area :The USAPlace of Delivery :Ontario,California
Shipping 1.Warehouse is located in Los Angeles, California, where local pickup transaction is temporarily not available.2.USPS PO Box, APO Army Post Office, FPO Fleet Post Office addresses are not available.3.We usually need a 1-2business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6business days after your payment is received.4.Your auto parts sometimes might be shipped with two or more separated packages due to weight limitation, please keep patient with no Item Not Received claim or Return request filed until by all of your items are received.5.Seller is required to purchase signature confirmation to be protected if a buyer reports an item not received or opens a payment dispute if the order has a total cost (including shipping costs and any taxes) of $750 or more.Warranty
1.The warranty terms only apply to all the auto parts purchased from VAP-AUTOPARTS.
2.VAP-AUTOPARTS carries no warranty responsibilities for any auto parts removing fees, installation fees, consulting fees, labor costs, towing charges, rental car reimbursements.
3.VAP-AUTOPARTS promises free replacement due to quality defects or item not as described issues within 60 calendar days from the date when buyers receive their items in the situation when buyers are willing to provide convictive proofs or professional diagnose report if required, otherwise VAP-AUTOPARTS has the right to refuse any replacement requests.
4.VAP-AUTOPARTS promises free replacement due to quality defects or item not as described issues after 60 calendar days from the date when buyers receive their items in the situation when buyers promise to prepay 15% of the original item sales price as postage for replacement, otherwise VAP-AUTOPARTS has the right to refuse any replacement requests.
5.VAP-AUTOPARTS carries no warranty responsibilities for any replacement due to car accidents, drag racing, unprofessional replacement, road hazard, disassembly.
Return
We stand behind every product we sell.
All of our brand new items come with a 30-Day money-back or exchange guarantee.
response
We maintain high standards of excellence (five stars review)and strive for 100% customer satisfaction!As a seller Positive response is very important to us, as well as ourcustomers. We hope that you contact us immediately BEFORE you give us neutral or negative response, so that we can satisfactorily address your concerns.
Warning
Please check the compatibility carefully before purchasing. If you are not sure about the model, please contact us in time.
