This Kit Contains: - 1X Aluminum Radiator (Includes Radiator Cap)
- 1X Aluminum Shroud
- 2X 12" Fans (Includes mounting kits)
- 1X Thermostat Relay Kit
- As shown in the picture
- Direct Bolt-On OE Fitment or Replacement
- Improves Cooling by 35% to 45% Temperature
Gesa8736
Best choice of motor parts

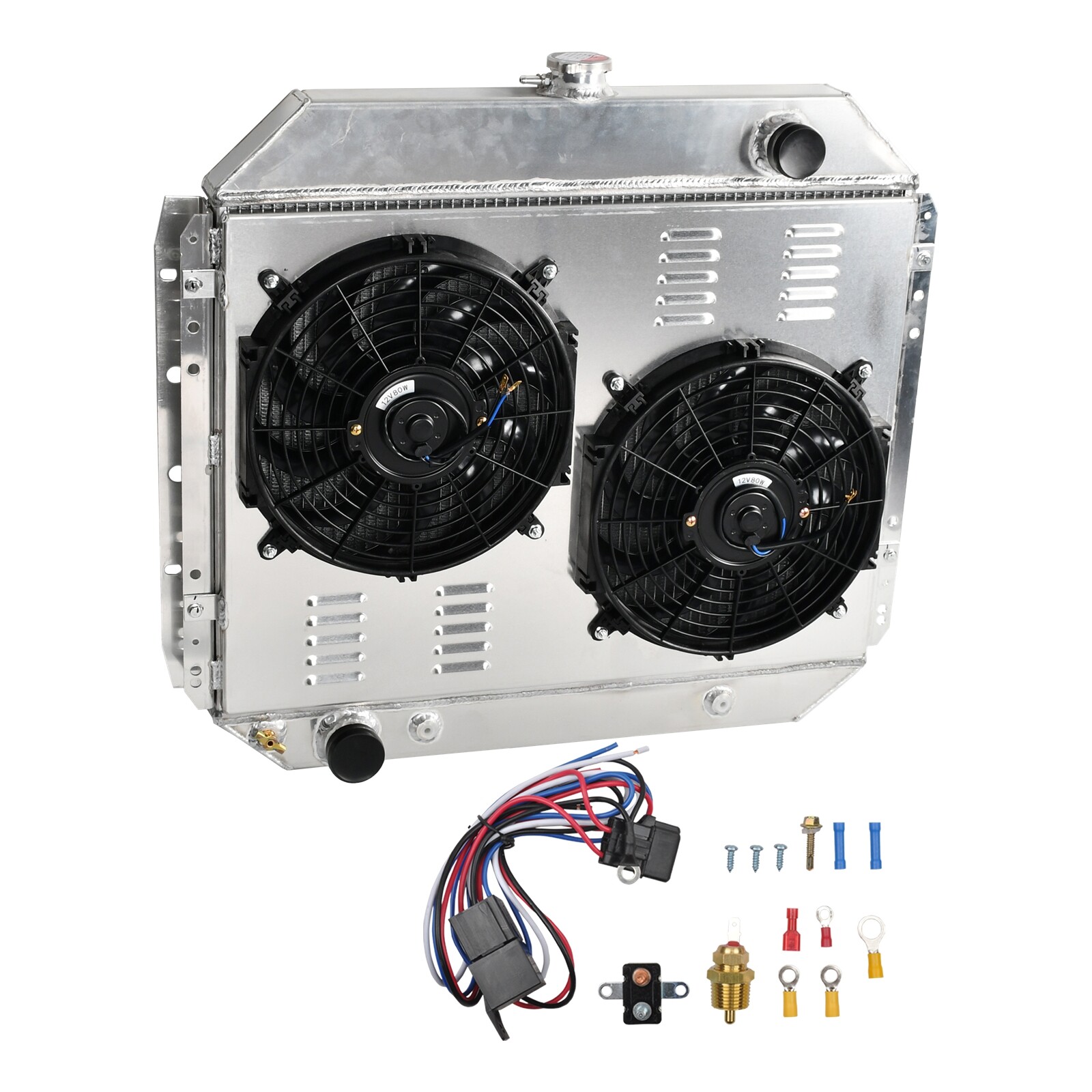

3 Row Radiator & Shroud Fan & Relay For 1966-79 Ford F100 F150 F250 F350 Bronco
This Kit Contains:
- 1X Aluminum Radiator (Includes Radiator Cap)
- 1X Aluminum Shroud
- 2X 12" Fans (Includes mounting kits)
- 1X Thermostat Relay Kit
- As shown in the picture
- Direct Bolt-On OE Fitment or Replacement
- Improves Cooling by 35% to 45% Temperature
- Radiator:
- High Performance Racing Spec.
- 3-Row of tubes Core Racing Design
- Overall Size: 750 x 665 x 155mm (29.53" x 26.18" x 6.10")
- Core Size: 480 x 658 x 44mm (18.90" x 25.91" x 1.73")
- Upper Radiator Hose: (Left) 1.75"
- Lower Radiator Hose: (Right) 2.00"
- Trans Cooler Details: 1/8-27NPT
- Mounting Type: BRACKET
- Mounting Specs: Ver - 16 1/2 Horizontal - 27 3/8
- OEM Style Brass Petcoke Drain
- CNC machined filler neck and cap
- Aircraft 5057 grade aluminum and with raw aluminum finish
- Shroud and Fans:
- Maximum Fan CFM: 1730 cfm
- Fan Diameter (in): 12.050"
- Thickness (in): 2.500"
- Number of Blades: 10 blades
- Maximum Fan RPM: 2,250 rpm
- Blade Material: Plastic
- Amp Draw: 12.70 amps
- Fan Power:12V / 80W
- Includes the Mounting Tabs for an Easy Zip Tie Installation
- Thermostat Relay Kit:
- Universal fit for any automotive vehicle and electric fan.
- Activates by grounding electric fans at preset temperature.
- 180'F turn-on temperature, 165'F turn-off temperature.
- RED + connect directly to battery.
- WHITE wire to ignition switch power source.
- BLACK goes to thermos switch.
- BLUE wire goes to the Fans.
- This set up will run Fans & pull air in through
- For 1978-1979 Ford Bronco (351ci V8, 400ci V8)
- For1968-1969 Ford F-Series Truck (4.9L Straight 6-cylinder, 360ci V8, 390ci V8)
- For1970-1972 Ford F-Series Truck (360ci V8, 390ci V8)
- For1973-1975 Ford F-Series Truck (302ci V8, 360ci V8, 390ci V8)
- For1976 Ford F-Series Truck (302ci V8, 351ci V8)
- For1977-1979 Ford F-Series Truck (302ci V8, 351ci V8, 400ci
- 100% brand new, Never been tried or installed
- No instructions are supplied.Please consult with a qualified mechanic before attempting installation!
- It will be divided into twopackages.
Item SpecificsBrand gesa8736Type Radiator & Shroud Fan & Thermostat RelayMaterial AluminumFitment Type Performance/CustomColor SilverFitment 1 For 1978-1979 Ford BroncoFitment 2 For 1968-1969 Ford F-Series TruckFitment 3 For 1970-1972 Ford F-Series TruckFitment 4 For 1973-1975 Ford F-Series TruckFitment 5 For 1976 Ford F-Series TruckFitment 6 For 1977-1979 Ford F-Series TruckOverall Size 750 x 665 x 155mm (29.53" x 26.18" x 6.10")Core Size 480 x 658 x 44mm (18.90" x 25.91" x 1.73")Inlet Diameter 1.75"Outlet Diameter 2.00"Style DownflowRow Count 3 RowFan Size 12"Transmission AT/MTFan Power 12V / 80WEngine Oil Cooler / EOC NoTransmission Oil Cooler / TOC YesThermostat Relay Kit Included Yes
