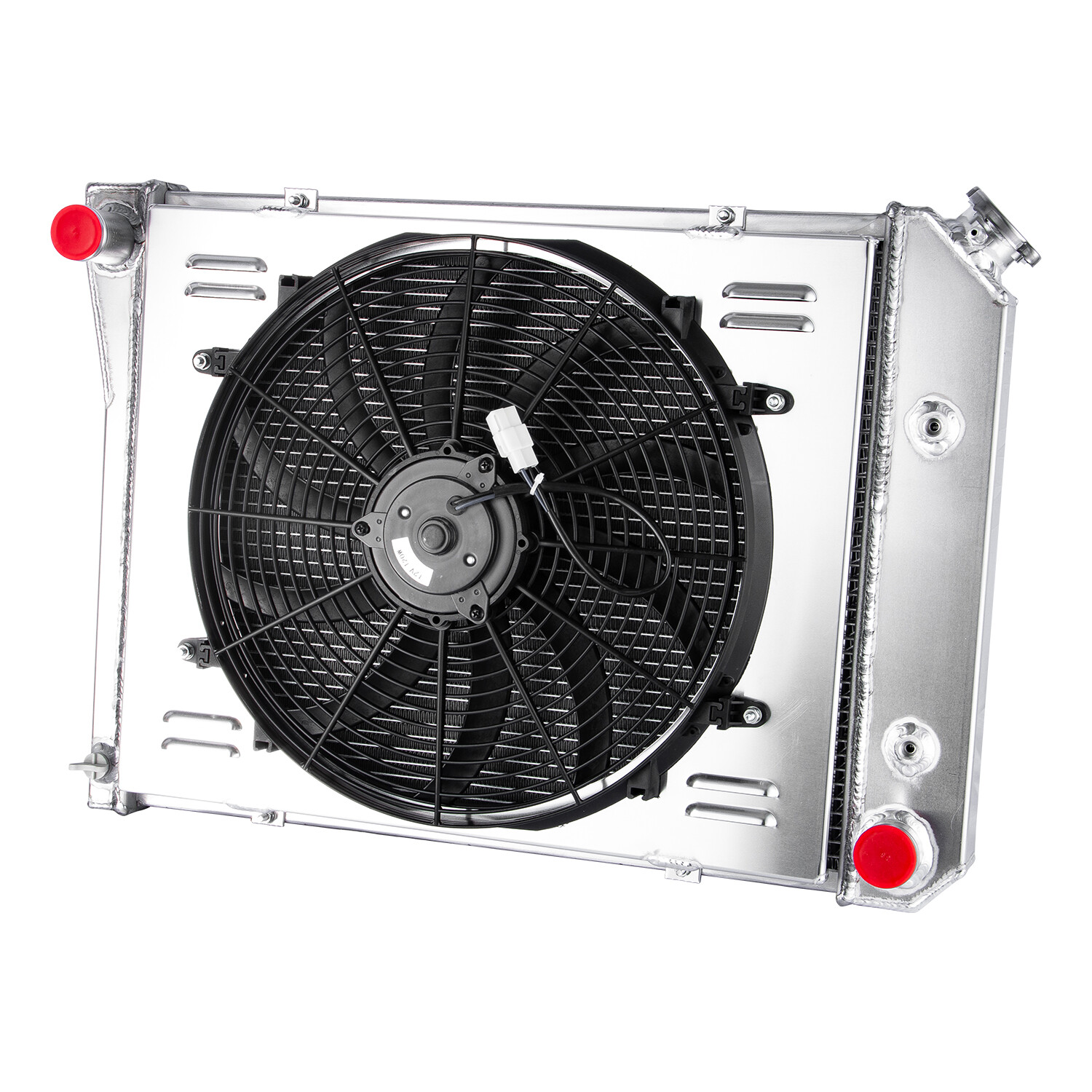

3 Row Radiator Shroud Fan For 1968-74 Chevy Nova/1968-82 Camaro/1968-73 Chevelle
Items Description
Package Include:
1 X 3-RowAluminum Radiator
1 XAluminum Shroud
1 X 16" Fan (Includes mounting kits)
Radiator Size:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Overall Dimensions: Height: 19'' X Width: 27''
Core Dimensions: Height: 17'' X Width: 21''
Inlet Location: 1 1/2 in. Driver Side
Outlet Dimensions: 1 1/2 in. Passenger Side
Transmission Oil Cooler Fitting Type: φ32*215*G1/4(Z), Inverted Flare
Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage:120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10
Description:
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Aluminum Shroud+Fan：
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Application:
Chevy series
1969-1979 Chevrolet Nova 3.8L 4.1L 4.3L V6 5.0L 5.7L V8
1979-1987 Chevrolet Monte Carlo 3.3L 3.8L 4.3L V6
1975-1983 Chevrolet Malibu 3.3L 3.8L 4.1L 4.3L V6
1971-1985 Chevrolet Impala 3.8L 4.1L 4.3L V6
1975-1984 Chevrolet El Camino 3.8L 4.1L V6
1968-1973 Chevrolet Chevelle 3.8L 4.1L V6 5.0L V8
1972-1980 Chevrolet Caprice 3.8L 4.1L V6
1974-1981 Chevrolet Camaro 3.8L 4.1L V6 5.0L 5.7L V8
1971-1973 Chevrolet Bel Air 4.1L V6
1971-1972 Chevrolet Biscayne Brookwood 4.1L V6
BUICK SERIES
1980-1987 Buick Regal 3.8L 4.1L V6
1978-1985 Buick LeSabre 3.8L 4.1L V6
1964-1979 Buick Skylark 3.7L 4.1L V6 4.9L 5.0L V8
1973-1975 Buick Apollo 4.1L L6
1977-1981 Buick Century 3.8L V6 5.0L V8
1980-1984 Buick Electra 4.1L L6
GMC SERIES:
1978-1987 GMC Caballero 3.8L 4.3L V6
OldsmobileSERIES:
1977-1987 Oldsmobile Cutlass Supreme 3.8L 4.3L V6
1979-1985 Oldsmobile Delta 88 3.8L V6
1973-1979 Oldsmobile Omega 4.1L 5.0L
1981-1983 Oldsmobile 98 4.1L
1979-1981 Oldsmobile Cutlass 3.8L 4.3L V6
PONTIAC SERIES:
1968-1981 Pontiac LeMans 3.8L 4.1L V6
1979-1987 Pontiac Grand Prix 3.8L 4.3L V6
1980-1986 Pontiac Bonneville 3.8L 4.3L V6
1980-1981 Pontiac Catalina 3.8L 4.3L V6
1970-1976 Pontiac Firebird 4.1L V6
1979-1981 Pontiac Grand LeMans 3.8L V6
1977-1979 Pontiac Phoenix 5.0L 5.7L
1968-1970 Pontiac Tempest 4.1L
1972-1976 Pontiac Ventura 4.1L V6
/>
