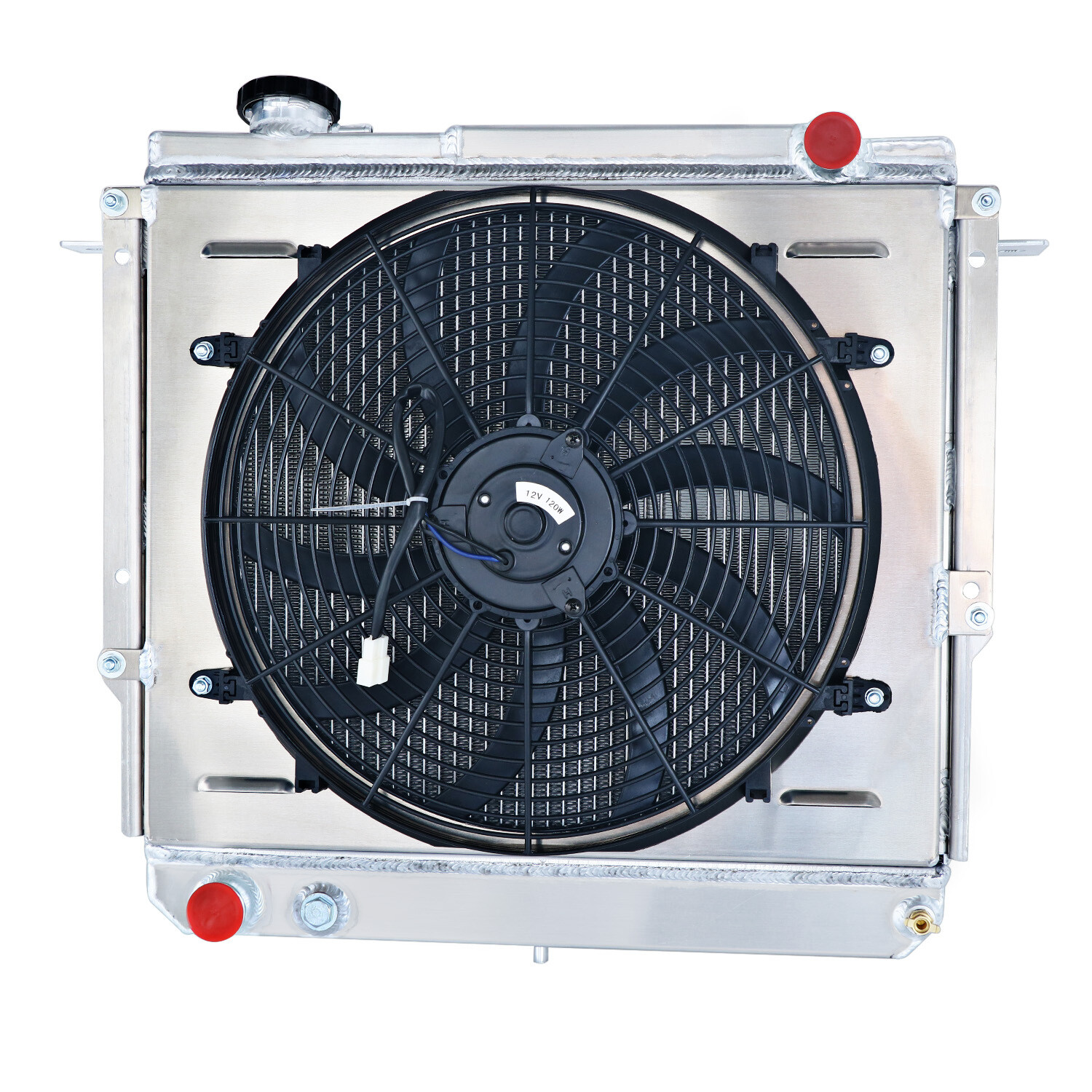

DESCRIPTION
Core Height: 16 3/4in.
Core Row Quantity: 3
Core Width: 19 13/16in.
Down Flow Or Cross Flow Type: DOWNFLOW
Engine Oil Cooler Included: NO
Inlet Diameter: 1 1/4in.
Outlet Diameter: 1 1/2in.
Vehicle Fitment:
This Radiator Will Fit The Following Models,
Fits 84 85 86 87 jeep wagoneer2.5L /V62.8L
Fits 86 jeep comanche 2.8L V6
Fits 86-92 jeep comanche 2.5L
Fits 84-94 jeep cherokee 2.5L
Fits 96 jeep cherokee 2.5L
Fits 85-87 jeep cherokee 2.1L Turbo
The New Design fan and theAA5052fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Wattage:120 Wattage
Number of Blades:10S-Typeblades
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180\'F turn-on temperature, 165\'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
