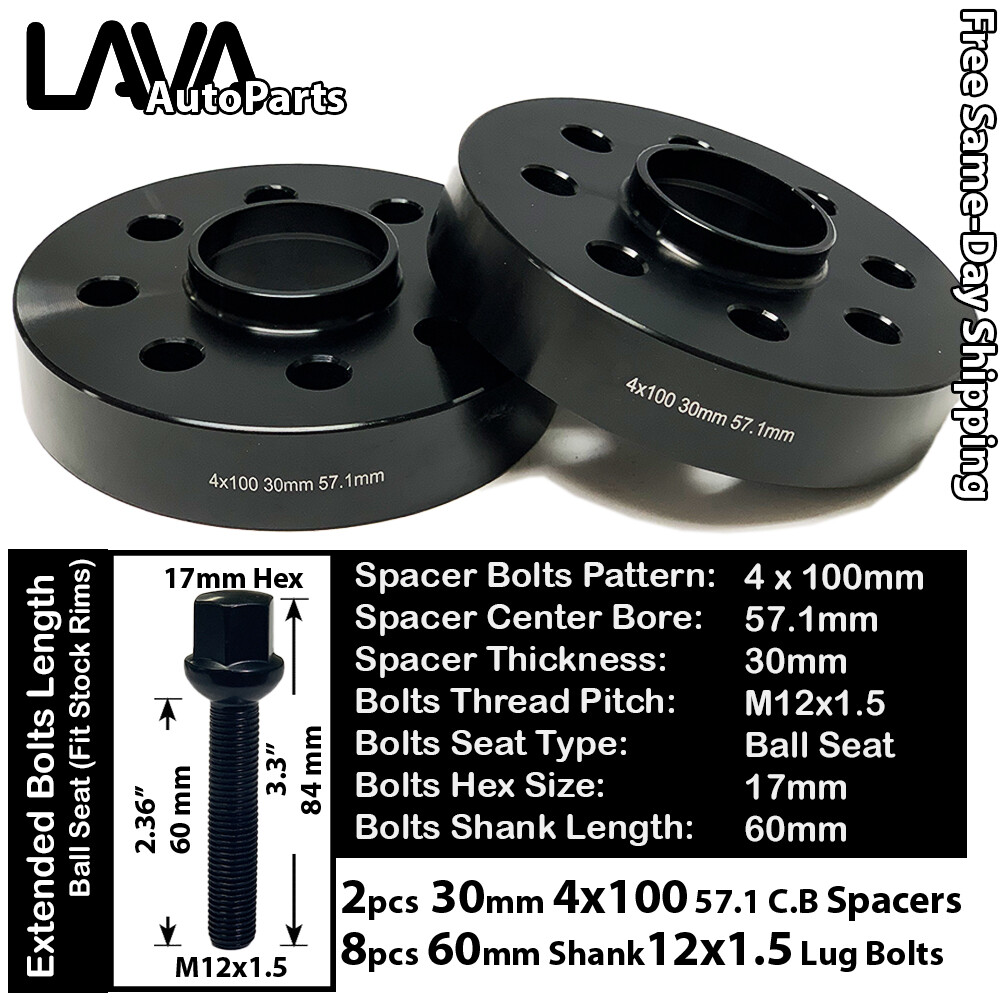

Product Specification:
About Spacers
Spacer Type: Hub Centric Spacer For Bolts Car
Spacer Bolts Pattern: 4x100mm
Spacer Center Bore: 57.1mm
Spacer Thickness: 30mm
Spacer Hub Ring: Yes
Spacer Color: Black
Spacer Material: Cold Forged 6061 T6 Grade Aluminum
Quantity: 2 Pcs
About Bolts
Lug Type: Lug Bolts with Extended Shank
Seat Type: Ball Seat
Thread Pitch: M12x1.5
Hex size: 17mm
Overall Height: 84mm or 3.3"
Overall Diameter: 23mm or 0.9"
Shank Length (From Bottom of the Seat to the end the thread shaft): 55mm or 2.36"
Color: Black
Material: Cold Forged Steel
Quantity: 8 Pcs
Requirements of the Vehicle Specification
Required Vehicle Hub Bolt Pattern: 4x100mm
Required Vehicle Hub Center Bore: 57.1mm
Required Vehicle Hub Thread: M12x1.5
Required Vehicle Minimum Fender Gap: 30mm
Requirements of the Wheel Specification
Required Vehicle Wheel Bolt Pattern: 4x100mm
Required Vehicle Wheel Center Bore: 57.1mm
Required Vehicle Wheel Lug Seat Type: Ball Seat
Required Vehicle Wheel Lug Nuts Hex: 17mm
What You Will Receive:
2 pcs 30mm Hub Centric Spacers
8 pcs 17mm Hexed Black Ball Seat Lug Bolts
Capability Chart and Important Part Note:
Please Carefully Refer the Generation Code For Fitment, There may be multiple generations in the same year.
Please Double Check For Fender Gap Limitation
MakeModelYear RangePart NotesBolt PatternBolt ThreadSpecial NotesAudi40001980-1987Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationAudi4000 Quattro1984-1987Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationSeatCordoba2001-2002Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationSeatIbiza2001-2002Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenCoupe1981-1987Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenDerby1995-2009Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenGol2009-2020Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenGolf1985-1998Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenJetta1980-1999Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenPointer Truck1998-2010Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenUp!2016-2018Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Limitation
Important Notice
1. Please Contact Customer Service If You Ever Have Questions
2. Capability is Guaranteed if Your Vehicle is listed in the Capability Chart Above, Please carefully refer to the seat type requirement on the wheel.
3. Exceptions Have Been Marked Under Part Notes, Please Carefully Check Generation Code
4. Fender Gap is the most important measurement to check the maximumthickness you can use
Notes:
- Buyer must check capability chart before buying, any vehicle that is not displayed in the capability may NOT fit.
- Please check if your rim uses proper lug nuts seat - product is only compatible with mentioned seat type required wheels
- Only guarantee compatible with Ball Seat Type Required Rim, If you have Aftermarket wheel, you may need Cone Seat Lug Bolts,Aftermarket wheels fitment is based on knowledge of buyer risk
- If your rim has wheel cap, this set might not be compatible with Wheel Cap
- Please have professional specialist to perform installation, adding spacers and related modification at your own risks
Return Policy:
Your happiness with the product is our top concern. We allow returns based on the following rules:
- Return is allowed within 30-day ofPurchase Date;
- Return Product must be unused, intact, and with the original package;
- Buyer is responsible for return shipping;
- Please allow 3 business day after the delivery of your return for us to process the refund.
- Please notify customer service prior starting a return to avoid the 10% RMA Restocking Fee.
- Please use a specificreturn shipping address (not the ship-from address) to avoid the 30%Processing Fee.
- If you have any questions or concerns, please do not hesitate to let us know.
Shipping:
- All shipments will be shipped via USPS Priority Mail (Same-Day);
- Order placed before9:00 am PST will be shipped on the same day. Order placed after 9:00am will be shipped promptly the next business day.
- If you wish to cancel or modify order, please notify Customer Service before 8:00 am PST or we won't be able to change/cancel your order prior to shipping.
- We also provide local pickup service! Contact us for more information.
Warranty:
- 30-Day Return Policy;
- For Colored Lug Nuts (Any color other than Chrome), we suggest the use of manual torque for installation to avoid damage to the paint layer.Warranty is voided if power tool is used.
Disclaimer:
- Professional Installation is recommended.
- Please use proper power tools and/or manual installation torque to the specification to the vehicle's recommended torque (found on vehicle's operator manual).
- Our liability is limited to the purchase price of the listed product.
- By purchasing this product, you acknowledge that you fully understand the information and terms listed above.
