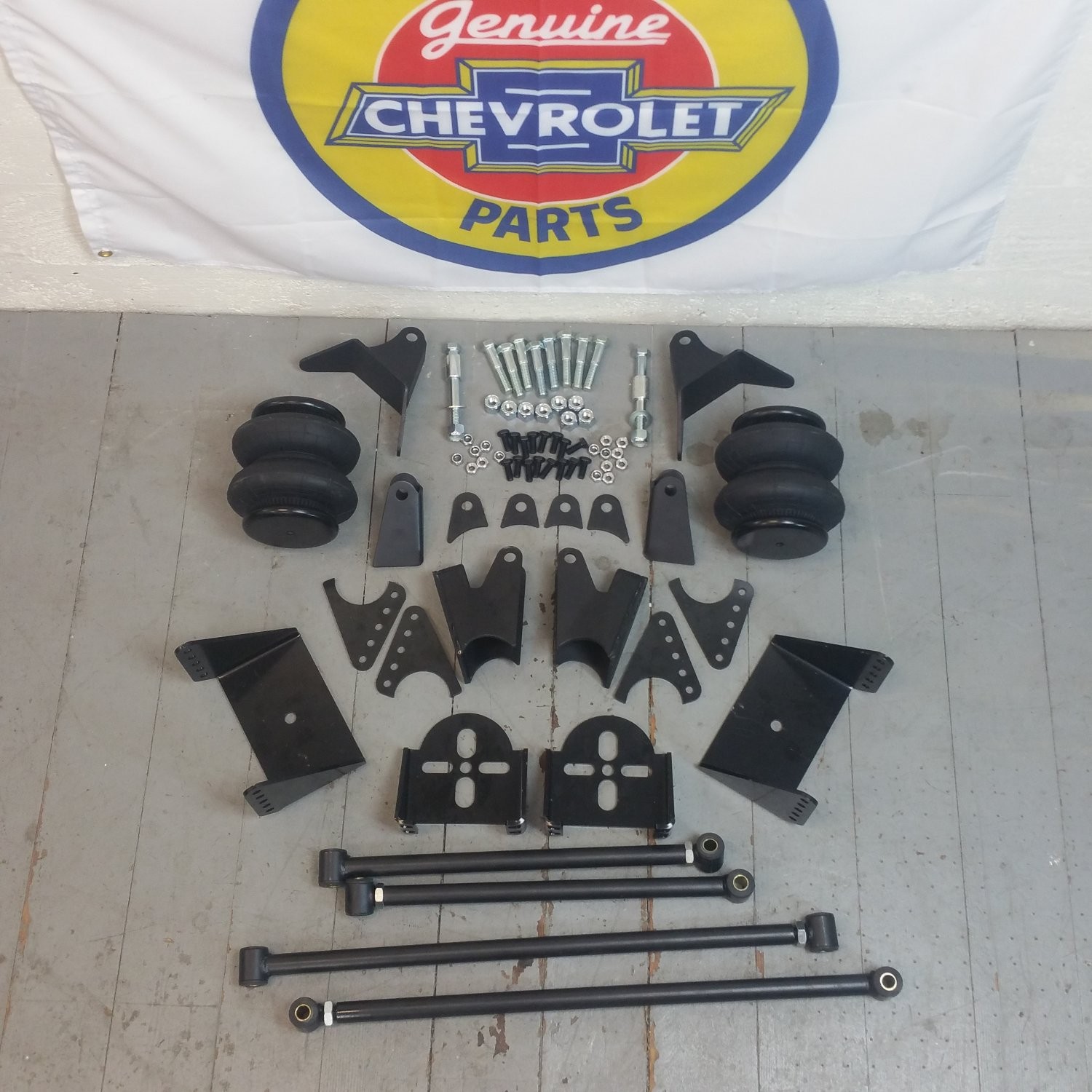

2600lb Bags Triangulated Full Size 4 Link Kit for 1980 - 1988 Chevy TruckSku # B5E59ConditionNewBrandNational Speed Automotive SupplyUnit Of Measure1
This ultimate kit includes Heavy Duty Triangulated Full Size Universal Four Link Kit with Shock Hardware, 2 1/2inch Single Port Air Bags with a load rating of 2600 lbs and a Universal Rear Air Bag Bracket Kit. Putting a lot of horsepower through your rear end? s New Heavy Duty Universal Triangulated 4-Link Kit is stronger than the rest! With the same .156 wall tubing that is the standard in drag racing applications, s full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. s adjustable 4-link features extra long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Brass sleeved bushings guarantee a lifetime of squeak-free operation. Completely TIG welded for maximum strength. All mounts are cut from 3/16 plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included. Looking for an air bag that can give you a smooth ride? Look no further! bags feature a maximum restrained pressure of 602 psi, 8.51 inch usable stroke, with a load range of 2600 lbs, steel braided cord reinforced ribs and multi-layer nylon belt cords bonded into the rubber. The all steel top and bottom plates have rolled crimp connections for unmatched durability. creates a high quality air bag that will give you the performance reliability you want with a smooth ride. And make sure you install it all correctly with our Universal Rear Air Bag Bracket Kit which includes 2 upper plates, 2 lower plates, 2 upper cups and 2 lower cups.1980 - 1987 Chevrolet C10 Pickup Truck Rear Suspension Four 4 Link Kit GM GMC LS ...Feature :: Heavy Duty Triangulated Full Size Universal
Main Bar :: 28" (711mm) Long
Secondary Bar :: 18" (457mm) Long
Bar Wall Thickness :: 4.1mm
Heavy Duty Bushings :: YES
Coil Over Brackets Positions :: 3
Coil Over Brackets :: YES
Adjustable :: YES
Bar Thickness :: 25 mm
Brackets Thickness :: 5mm
Brackets :: Included
Install Hardware :: YES
Number Of Bars :: 4
Bushing Included :: YES
Shock Hardware :: YES
Hardware :: YES
Axle :: 3" & 2 3/4"
