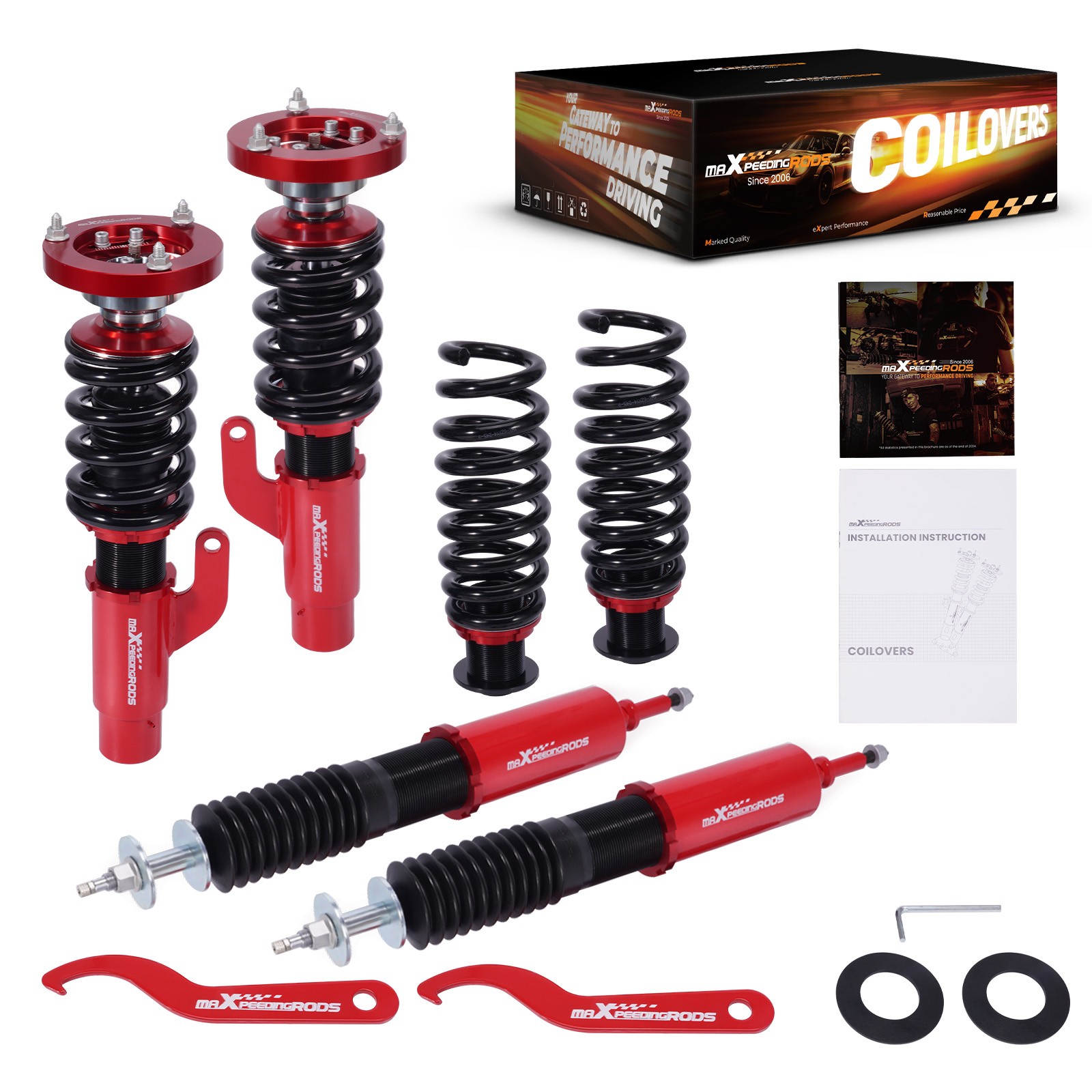

24 Level Damping Adjustable Coilover Suspension Kit For BMW 3 E90 XDrive 06-11
All modifications must be installed by licensed mechanics and in compliance with your local modification
55mm Large Diameter Damper Body
High Oil Capacity For Superior Heat Dissipation, Consistent Damping Performance, And Extended Service Life.
CNC Machined T6 6061 Aluminum Top Mount
Adjustable Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.
High Rigidity 55CrSi Steel Cold-bent Coil Springs
720-Hour Salt Spray Tested — Exceptional Corrosion Resistance.
Drops From 1 to 3 Inch From Factory Ride Height
Full Threaded Absorber Tube Casing For Independent Height Adjustment.
55mm Large Diameter Damper Body
CNC Machined T6 6061 Aluminum Top Mount
High Rigidity 55CrSi Steel Cold-bent Coil Springs
Drops From 1 to 3 Inch From Factory Ride Height
Specifications
Damping adjustable Yes, 24 levels of rebound damping force Height adjustable Yes, Lowering 1-3 inch Front Spring length 145 mm Rear Spring length 245 mm Front spring length 13.5 kg/mm (756 lbs/in) Rear spring length 9 kg/mm (504 lbs/in) Front spring inner diameter 70.5 mm Rear spring inner diameter 62 mm Front Damper Body Diameter Φ55mm (2.17\") Rear Damper Body Diameter Φ55mm (2.17\") Front Coilover Length 365 mm - 425 mm / 14.37\"-16.73\" Rear Coilover Length 530 mm - 580 mm / 20.86\"-22.83\" Package Including 2 Front + 2 Rear Warranty 1 Year MaXpeedingrods Brand Introduction
Founded in 2006, MaXpeedingrods is a trusted global brand specializing in a full range of high-performance automotive parts. With a strong focus on suspension and coilovers, we hold a leading market share online and are widely recognized by enthusiasts worldwide. All products are engineered for reliable performance, durability, and perfect fitment, serving daily driving, street tuning, and light track use.
Features
- 24 levels of dampening adjustability.
- Fully height adjustable via the lower mount with no need to change preload and sacrifice shock stroke.
- Cold-bent springs made from high strength 55CrSi steel.
- Adjustable camber plates are designed to offer up to 3 degree\'s of camber adjustment at any ride height to dial in your aligment.
- Manufactured from high quality T-6061 billet aluminum with an anodized finish for superior strength and corrosion protection.
- Lower bracket height adjustability prevent the need to adjust the spring perch, offering the maximum shock-absorbing travel.
- Powder painted steel lower bracket can match all design of brake line and ABS line holder, easy for intalling.
- Quality Assured - Full Year Limited Warranty From Date of Purchase.
- Fully Rebuildable With All Parts 2006-2011 BMW 3 Series E90/E92 325xi 328xi 330xi 335xi X-Drive Front top mount structure: Pillow ball with camber plate
- Rear top mount structure: OE top mount required
- Camber adjustable: Available
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 13.5 kg/mm (756 lbs/in)
- Spring Rate Rear: 9 kg/mm (504 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 145 mm
- Spring length Rear: 245 mm
- Spring Preload advised: 7-10 mm
- Damping rod diameter Front: Φ22 mm
- Damping rod diameter Rear: Φ12.5 mm
- Damping thread Front: M55×2 mm
- Damping thread Rear: M55×2 mm
- Twin -tube Diameter Front: 55 mm
- Twin -tube Diameter Rear: 55 mm
- Rod End Thread Front: M14×1.5 mm
- Rod End Thread Rear: M12×1.25 mm
- Coil-overs overall length Front: 365 mm - 425 mm / 14.37\"-16.73\"
- Coil-overs overall length Rear: 530 mm - 580 mm / 20.86\"-22.83\"
- Color: Red body with black spring
Package included
2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench
★30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
✅ 100% BRAND NEW | 1 YEAR LIMITED WARRANTY✅ Full Length Adjustable Ride Height For Custom Stance Without Suspension Compromise✅ 24 Levels Damping Force Adjustable For Precise Comfort And Performance Tuning✅ Precision Pillow Ball Upper Mounts With Smooth Bearings For Stable Steering Response✅ 55mm Large Diameter Damper Body Delivers Superior Stability And Control✅ 55CrSi Cold-Bent Steel Springs Provide Max Strength And Long-Term Durability✅ T-6061 Billet Aluminum Construction With High-Durability Thrust Seats & Reinforced Rubber Bushings✅ Perfect for Daily Commuting and Weekend Street Performance
