** Please Check Your Wheel and Model Together **
** Compatibility Chart is for Thread Pitch Check Only **
** Wheel Lug Shape is Determined by Your Wheel Requirements **
** Do not Guarantee Fitment with Wheel Cap **
** Designated For Wheel With 20-25mm Spacers **
** Stop If You Do Not Have Spacers **

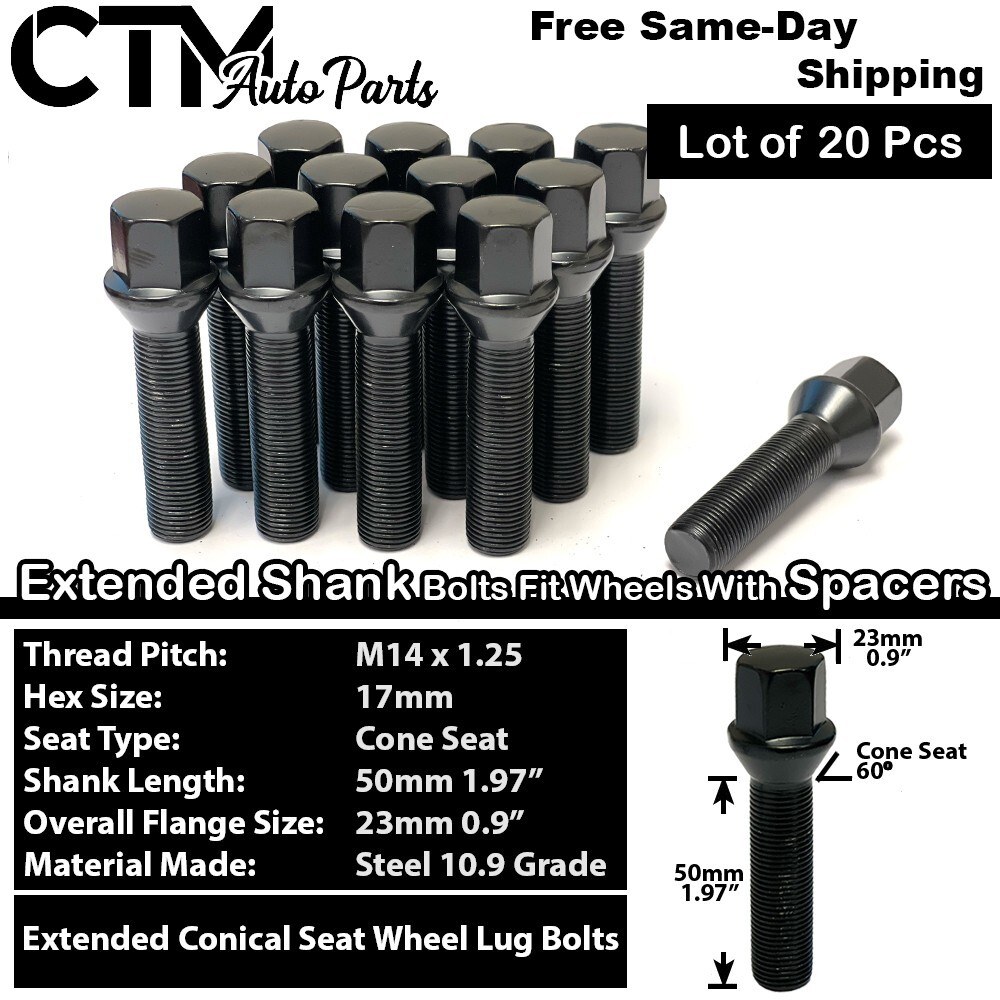

Product Specification:
Lug Bolt Thread Pitch: M14x1.25
Lug Bolt Seat Type: 60 Degree Cone Seat
Lug Bolt Hex Size:17mm
Lug Bolt Overall Diameter: 0.9\"(23mm)
Lug Bolt Thread Shank: 1.97\"(50mm)
Lug Bolt Grade: Grade 10.9
Lug Bolt Finish: Black
Lug Bolt Material Made: SCM Steel
Requirements of the Vehicle Specification
Required Vehicle Hub Thread: M14x1.25
Requirements of the Wheel Specification
Required Vehicle Wheel Lug Bolts Seat Type: Cone Seat
Required Vehicle Wheel Lug Nuts Flange: 23mm or Smaller
Requirements of the Wrench Size
Required Wrench Socket Size: 17mm
Wheel Spacer Thickness Allowed
Wheel Spacer Capability: Yes, It\'s a MUST
Wheel Spacer Thickness Allowance: 20mm to 25mm
What You Will Receive:
20 pcs Lug Bolts
Compatibility Chart and Important Part Note:
Please Carefully Check for Generation information
MakeModelYear MadeOrig. ThreadWheel Lug Flange Req.Spacer CompatibilitySpecial NotesBMW118i (Mexico)2012-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW120i (Mexico)2016-2021M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW220i (Mexico)2014-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW220i Gran Coupe2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW228i2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW228i Gran Coupe2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW228i xDrive2015-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW228i xDrive Gran Coupe2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW230i2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW230i xDrive2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW235i (Mexico)2014M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyMexico RegionBMW318i (Mexico)2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW320i2012-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW320i xDrive2013-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW328d2014-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW328d xDrive2014-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW328i2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW328i2012-2013M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyL4 122 2.0L (1997cc) OnlyBMW328i GT xDrive2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW328i xDrive2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW328i xDrive2013M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyL4 122 2.0L (1997cc) OnlyBMW330e2016-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW330e xDrive2021-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW330i2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW330i (Mexico)2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW330i GT xDrive2017-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW330i xDrive2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW335i2011-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW335i GT xDrive2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW335i xDrive2013-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW340i2016-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW340i GT xDrive2017-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW340i xDrive2016-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW420i (Mexico)2016-2020M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW420i Gran Coupe (Mexico)2016-2021M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW428i2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW428i Gran Coupe2015-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW428i xDrive2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW428i xDrive Gran Coupe2015-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW430i2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW430i Gran Coupe2017-2023M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW430i xDrive2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW430i xDrive Gran Coupe2017-2023M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW435i2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW435i Gran Coupe2015-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW435i xDrive2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW435i xDrive Gran Coupe2015-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW440i2017-2020M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW440i Gran Coupe2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW440i xDrive2017-2020M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW440i xDrive Gran Coupe2017-2020M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW520i (Mexico)2014-2020M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW528i2011-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW528i xDrive2012-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW530e2018-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW530e xDrive2018-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW530i2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW530i (Mexico)2012-2013M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW530i xDrive2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW535d2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW535d xDrive2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW535i2011-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW535i GT2010-2017M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW535i GT xDrive2011-2017M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW535i xDrive2011-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW540d xDrive2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW540i2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW540i xDrive2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW550i2011-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW550i GT2010-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW550i GT xDrive2010-2017M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW550i xDrive2011-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW550i xDrive (Mexico)2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW640i2012-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW640i Gran Coupe2013-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW640i xDrive2014-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW640i xDrive Gran Coupe2014-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW640i xDrive Gran Turismo2018-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW650i2012-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW650i Gran Coupe2013-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW650i xDrive2012-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW650i xDrive Gran Coupe2013-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW740e xDrive2017-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW740i2011-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW740i (Mexico)2010M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW740i xDrive2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW740Ld xDrive2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW740Le xDrive2017M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW740Li2011-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW740Li xDrive2013-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW745e (Mexico)2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW745e xDrive2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW745Le xDrive2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW750i2009-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW750i xDrive2010-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW750Li2009-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW750Li (Mexico)2016-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW750Li xDrive2010-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW760Li2010-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW760Li (Mexico)2009M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW840i2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW840i Gran Coupe2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW840i xDrive2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMW840i xDrive Gran Coupe2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWActiveHybrid 32013-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWActiveHybrid 52012-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWActiveHybrid 72013-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWAlpina B6 Gran Coupe2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWAlpina B6 xDrive Gran Coupe2015-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWAlpina B72011-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWAlpina B7 xDrive2011-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWAlpina B7L2011-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWAlpina B7L xDrive2011-2015M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWAlpina B8 Gran CoupeM14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWAlpina XB72021-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWCooper2007-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWCooper Clubman2016-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWCooper Countryman2011-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWCooper Paceman2013-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWi32014-2021M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWi3s2018-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWi82014-2020M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWiX2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWiX32020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM135i (Mexico)2013-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM140i (Mexico)2017-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM22016-2021M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM235i2014-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM235i xDrive2015-2020M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM235i xDrive Gran Coupe2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM240i2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM240i xDrive2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM32015-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM340i2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM340i xDrive2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM42015-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM440i2021-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM440i Gran Coupe2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM440i xDrive2021-2023M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM440i xDrive Gran Coupe2022-2023M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM52012-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM550i xDrive2018-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM62012-2018M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM6 (Mexico)2011M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM6 Gran Coupe2014-2019M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM760i xDrive2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM760Li xDrive2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM82020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM8 Gran Coupe2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM850i xDrive2019-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWM850i xDrive Gran Coupe2020-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWX12016-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWX22018-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWX32011-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWX42015-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWX52007-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWX62008-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWX72018-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyBMWZ42019-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyMINICooper2014-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyMINICooper Clubman2015-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyMINICooper Countryman2010-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyMINICooper Countryman2017-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers OnlyMINICooper Paceman2012-2016M14x1.2523mm Flange Cone Seat20mm-25mm Spacers Flange Cone Seat20mm-25mm Spacers Flange Cone Seat20mm-25mm Spacers Flange Cone Seat20mm-25mm Spacers Flange Cone Seat20mm-25mm Spacers OnlyToyotaSupra2019-2022M14x1.2523mm Flange Cone Seat20mm-25mm Spacers Only1
Return & Exchange Policy:
Your happiness with the product is our top concern. We allow returns based on the following rules:
- Return & Exchange is allowed within 30-day ofPurchase Date
- Return Product must be unused, intact, and with the original package
- Buyer is responsible for return shipping charge
- Buyer is responsible for all exchange shipping charge
- Please allow 3 business day after the delivery of your return for us to process the refund.
- 15% RMA Restocking Fee is applied to all Adapter/Spacer/Spike orders.
- Please use a specificreturn shipping address (not the ship-from address) to avoid the 30%Processing Fee.
- If you have any questions or concerns, please do not hesitate to let us know.
Shipping:
- All shipments will be shipped via Fedex 2 Days (Same-Day), If your address is not qualified for FedEx Service, it will be shipped via USPS Priority Mail (2-5 Days).
- Order placed before9:00 am PST will be shipped on the same day. Order placed after 9:00am will be shipped promptly the next business day.
- If you wish to cancel or modify order, please notify Customer Service before 9:00 am PST or we won\'t be able to change/cancel your order prior to shipping.
- We also provide local pickup service! Contact us for more information.
Warranty:
- 30-Day Return Policy;
- For Colored Lug Nuts (Any color other than Chrome), we suggest the use of manual torque for installation to avoid damage to the paint layer.
- Warranty is voided if power tool is used
- Abuse of Usage (Excessive power torque) will not be covered by Warranty
Disclaimer:
- Professional Installation is recommended.
- Please use proper power tools and/or manual installation based on the vehicle\'s recommended torque spec (found on vehicle\'s operator manual)
- Our liability is limited to the purchase price of the listed product.
- By purchasing this product, you acknowledge that you fully understand the information and terms listed above.
