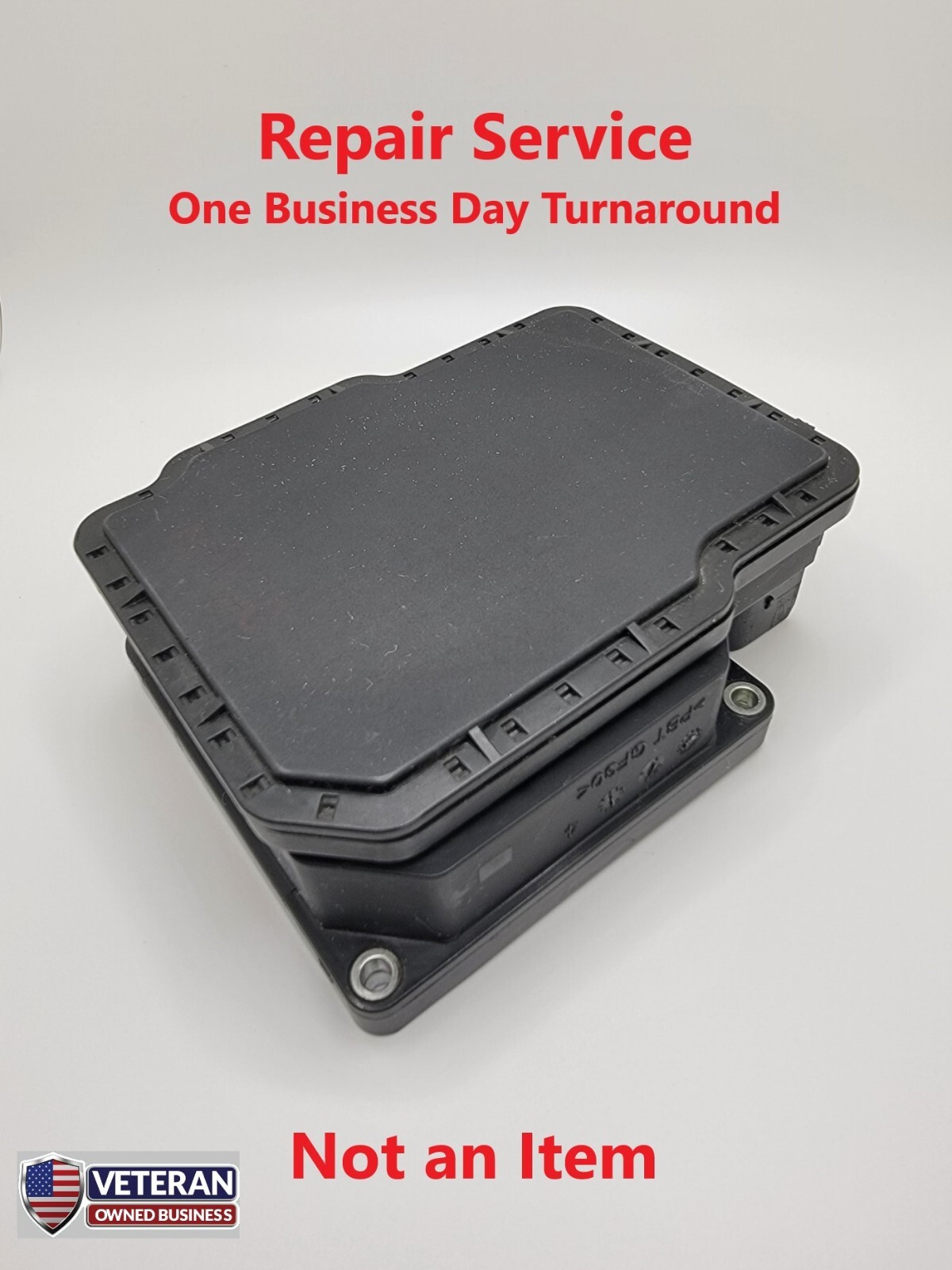

2009-2015 Honda PilotABS/VSA Repair Service.
This is a repair service, not an item. You will need to remove your ABS module and send it to us. We will repair it and return your original module.
You can drive your vehicle after removing it as long as the hydraulic pump remains in place, and no programming is required after reinstalling your module. The repair takes 1 business day once it arrives here as long as it's received by 3pm Pacific time.
After you "Buy It Now," you will receive a message with shipping instructions and our address. Then, all you need to do is package your module tightly in a box with your full contact information and a description of the problem, and then send it in.
Pack your module well. We are not responsible for any damage to modules during shipping. If your module is otherwise unrepairable, the transaction must be canceled, and then you will be refunded the repair price minus the return shipping cost if you would like it returned.
If possible, please send only the black plastic module. The hydraulic pump and motor are not needed and only adds to the shipping cost.Sometimes, when removing the module from the hydraulic pump, the motor contact prongs will come out with the module. You will need to make sure they are properly installed back in the motor before reinstalling the module. If not, damage could occur to the module. We are not responsible for any damage to the module during installation.
Common error codes for failed modules include:
DTC 31-11: ABS Solenoid Valve Malfunction
DTC 32-11: ABS Solenoid Valve Malfunction
DTC 33-11: ABS Solenoid Valve Malfunction
DTC 34-11: ABS Solenoid Valve Malfunction
DTC 35-11: ABS Solenoid Valve Malfunction
DTC 36-11: ABS Solenoid Valve Malfunction
DTC 37-11: ABS Solenoid Valve Malfunction
DTC 38-11: ABS Solenoid Valve Malfunction
DTC 61-11: VSA Modulator Control Unit Power Source Circuit Low Voltage
DTC 66-11: Pressure Sensor Circuit Malfunction
DTC 66-13: Pressure Sensor Malfunction
DTC 81-19: Yaw Rate Sensor Malfunction
DTC 81-03: Yaw Rate Sensor Malfunction
DTC 85-01: VSA System Malfunction
DTC 121-11: VSA Solenoid Valve Malfunction
DTC 122-11: VSA Solenoid Valve Malfunction
DTC 123-11: VSA Solenoid Valve Malfunction
DTC 124-11: VSA Solenoid Valve Malfunction
