*** PLEASE READ THE ENTIRE LISTING BEFORE BUYING***

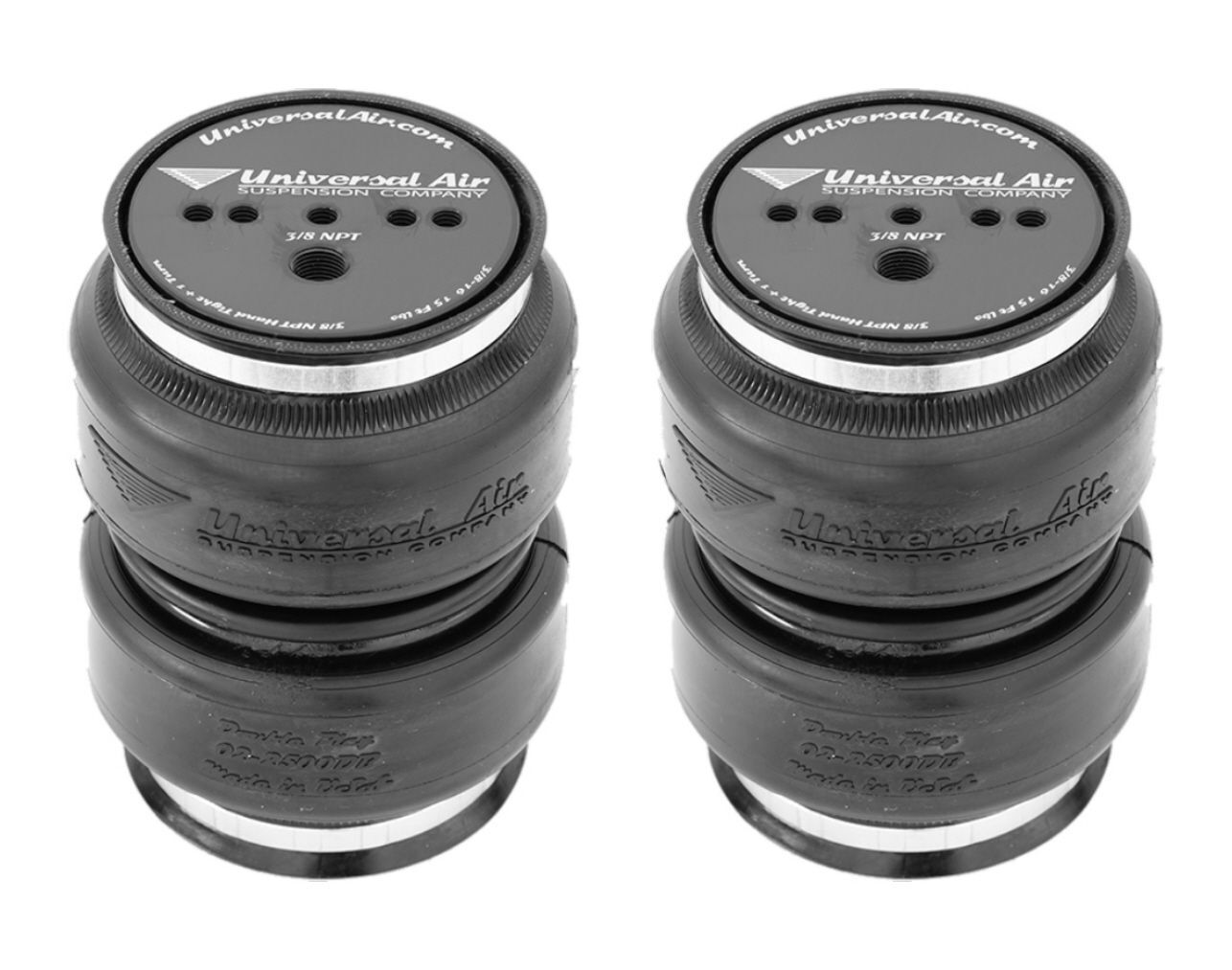

2 X Brand New UN-Used Double Play 3/8" Port 11" Max height. 2500 lbs. Double Convoluted Air Suspension Bags for Trucks, Old Classic cars. Double Play bags are designed to handle the heavy weight, rear suspension only, not designed for an A arm (Front) or an extreme angled applications. These bags are designed for an excellent ride quality and higher travel in the same diameter size.
Recommended Mounting is directly to the Axel in a rear suspension application, or just In front of the Axel on a rear trailing arm setup. Like in Chevy C-10 or Chevy Impala.
Important Notes: -
- All air bag installed pictures are for illustration purposes only. May vary based on the application, vehicle etc.
- These bags are NOT designed for a front control arm suspension. ***Single Bellow Air House 2 are recommended for the front suspension.*** Item # 320727853179 OR 221038029202
- Must use the shocks to prevent air bag from over extension.
- The air bag height may vary based on the air pressure, weight etc.
- Use manufacturer recommendations printed on the bag plate sticker to tighten the air fittings
Specifications & Features:-
- 3/8" NPT Port
- 5.875" Max Diameter
- 11" Extended Height
- 3.25" Collapsed Height
- 4.75 - 7.75" Optimum Ride Height
- Up to 2500 lbs. Force @ 115 PSI - Maximum Weight 2500 lbs. each
- Rear Installation - ***Over Axle, Behind OR Behind & Under Axle applications***
- Made with heavy Duty Thick Rubber For extended life & durability.
- 525 PSI Tested Burst Pressure
- Industry Standard Bolt Pattern - (3) Threaded Blind Holes Top & Bottom, 1.75" Center to center from middle hole 3/8-16" UNC. ***Fits 2500 lbs. & 2600 lbs. bolt pattern circle plate cups/ mounting brackets***
- Machined 6061 Aluminum Caps
