This sale includes only the Custom template required to properlylocate, center punch and drill the holes to mount 5 cablights also called running lights or called Clearance lights on a Ford SuperDuty F250 F350 F450 F550 F650 F750 and Excursions that did not come with them factory installed.
Our greatly improved install Kit provides an exact template for you to useto mark and drill the holes, it has several areas marked to cut out so that you can properly tape the template down after you have gotten it center side to side and front to back. The measurementsare provided on the template so that you don’t make any mistakes drilling the holesduring the install. We also can provide labels to help you tape the template in place so that it doesn\'tmove around while you are center punching the holes. Please ask questions if you are not sure about something. We also have an install how to video on our You Tube channelSuper Duty Ford Truck Parts

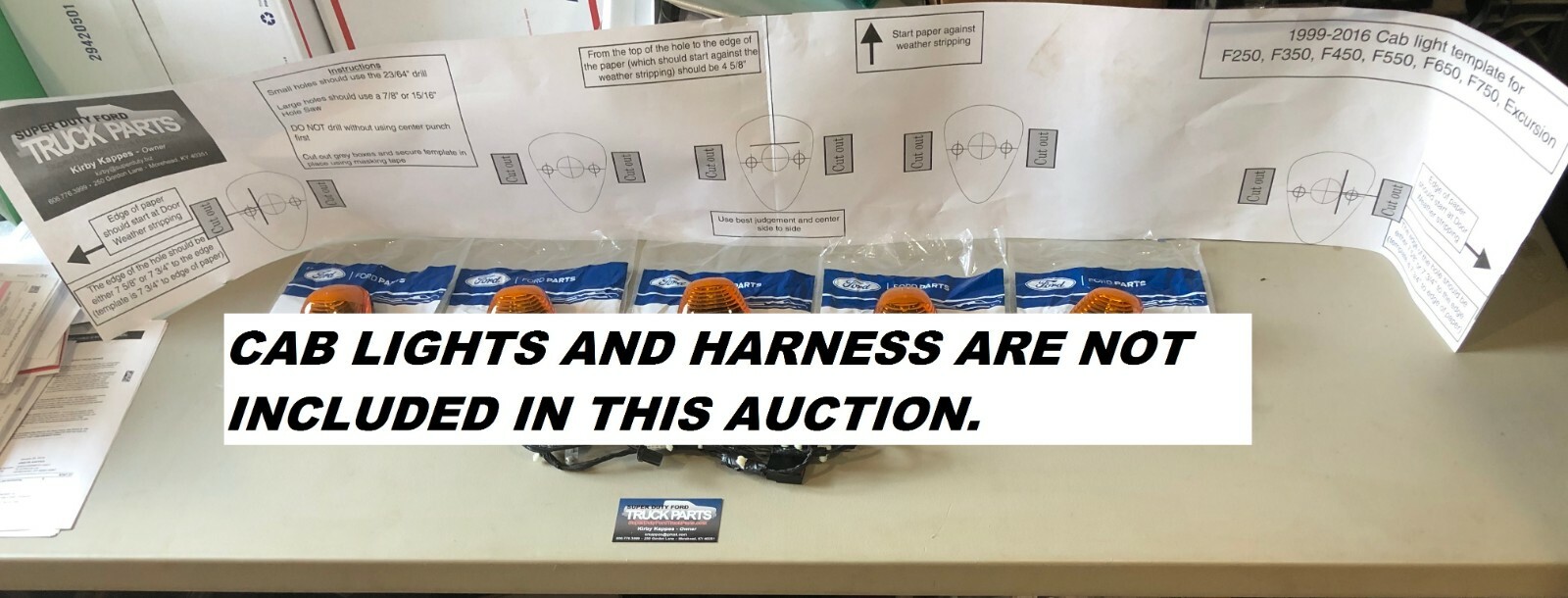

This is a complete template, ready to get ready for your cab light install.
Electrical hook up is Very easy. Most of these (99-07) trucksalready have the plug that these plug into behind the passenger side kick panel.This harness runs up the passenger side pillar, just plug into the existing connectorif your truck is equipped for lights. If your vehicle does not directly plug inyou can cut off the electrical plug and hook up the black wire to any metalsupport in the roof for ground or you can run both wires down to kick panelarea, and run the other brown wire to your parking light circuit so that theyonly come on when your lights are on.
******** We give you an accurate template to drill the15 holes needed to install all the lights correctly. ( 3 holes per light)We see other sellers offering direction or instructions but directions areworthless alone without an exact drilling template to use.
You can be sure that you project will go as planned by knowingyou will not drill a hole in the wrong location during the install. Miss drillinga hole in the wrong place can cause a leak and damage your headliner or you mayneed costly bodywork to repair the mistake.
Super Duty Ford Truck Parts
250 Gordon Ln
Morehead, KY 40351
Check us out for all you Super duty and Excursion parts needs.
######We unfortunatelyhave to state a disclaimer that upon purchasing this you as the buyer are responsible for the installation. Do not attempt if you doubt your mechanical abilities even a little. Make sure before you drill you have the correct lights and while this template gives you the platform to install them, you are responsible for confirming that they are aligned to your liking. This templates give you some room to adjust forward and back and side to side. We will not be responsible for a botched install and that\'s why I cannot stress enough if you doubt your abilities or not mechanical inclined - pay a reputable shop to do it.#####
1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 Excursion
