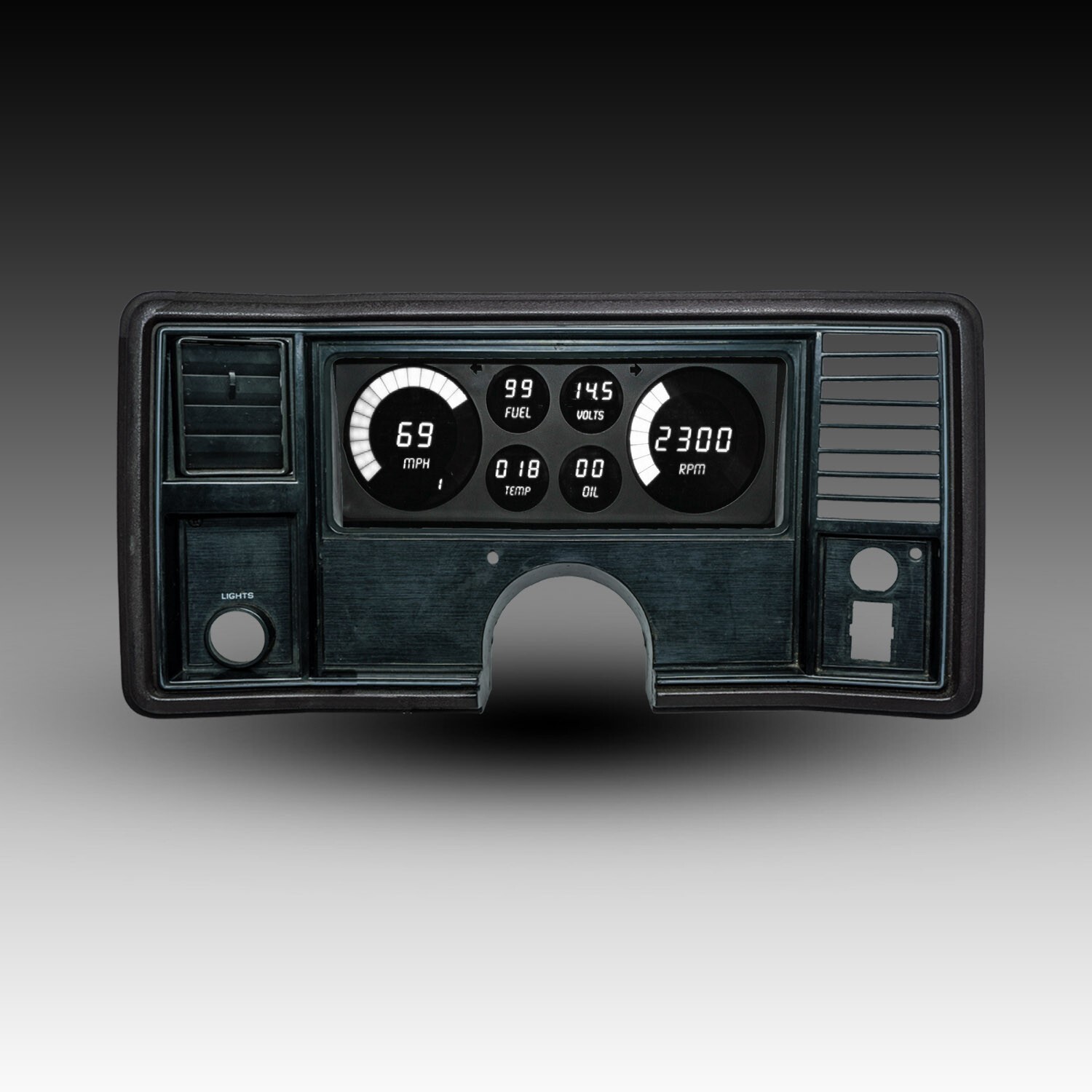

Upgrade your vehicle with this modern digital instrument cluster from Intellitronix. With numeric digital display and led illuminated backlit features, you'll have no problem reading the temperature gauge, speedometer, fuel gauge, oil pressure gauge, and tachometer/rev counter. This OEM vintage part is made with fiberglass, copper, and acrylic materials, ensuring its durability and comes with a lifetime manufacturer warranty. It measures at OEM length, height, and width, with a weight of 3lbs and a maximum speedometer value of 255 MPH. This item is compatible with Monte Carlo/El Camino models from 1978-1988 and is proudly made in the USA!
Your classic 1978-1988 Monte Carlo or El Camino will lookstunning with Intellitronix 1978-1988 Monte Carlo-El Camino LED Digital GaugePanel. 1978-1988 Monte Carlo-El Camino LED Digital Gauge Replacement Panelcomes completewith direct fit printed circuit boards, custom fit "smoked"plexiglass face plates, universal temperature, oil pressure, and speedometersending units with senders and sensors for vehicles without electronictransmission or cruise control.
The speedometer reads up to 255 MPH and features an odometer, tripmeter, one-button calibration, regardless of tire size, gear ratio, ortransmission, and 0–60-time, 1⁄4-mile elapse time, and high-speed recall, allwith the push of a button. The speedometer can be used with electronic cruisecontrol senders or use Intellitronix S9013 universal speedometer sending unit includedif your vehicle is not equipped with a functional cruise control.
Tachometerdisplays 0-9900 RPM in 100 RPM increments.
WaterTemperature displays 100-300°F range with sending unit S8013 included. Pleasespecify bushing size for sender as we normally send a 1/2 inch one, but we cansend a 3/8 inch one instead upon request. Please make a note at check-out;otherwise, you will have to get the correct bushing on your own.
Oil Pressure reads 0-100 PSI range, and the oilpressure sender is included.
Thevoltmeter displays a 7.0-25.5 volts range, and no sending unit is required.
FuelLevel reads 0-99% range in 1% increments and works with existing GM fuel levelsending unit.
1978-1988Monte Carlo-El Camino with this elegant LED Digital Replacement Gauge Panelfeatures turn signals and high beamindicator.
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue, Tealand Green
