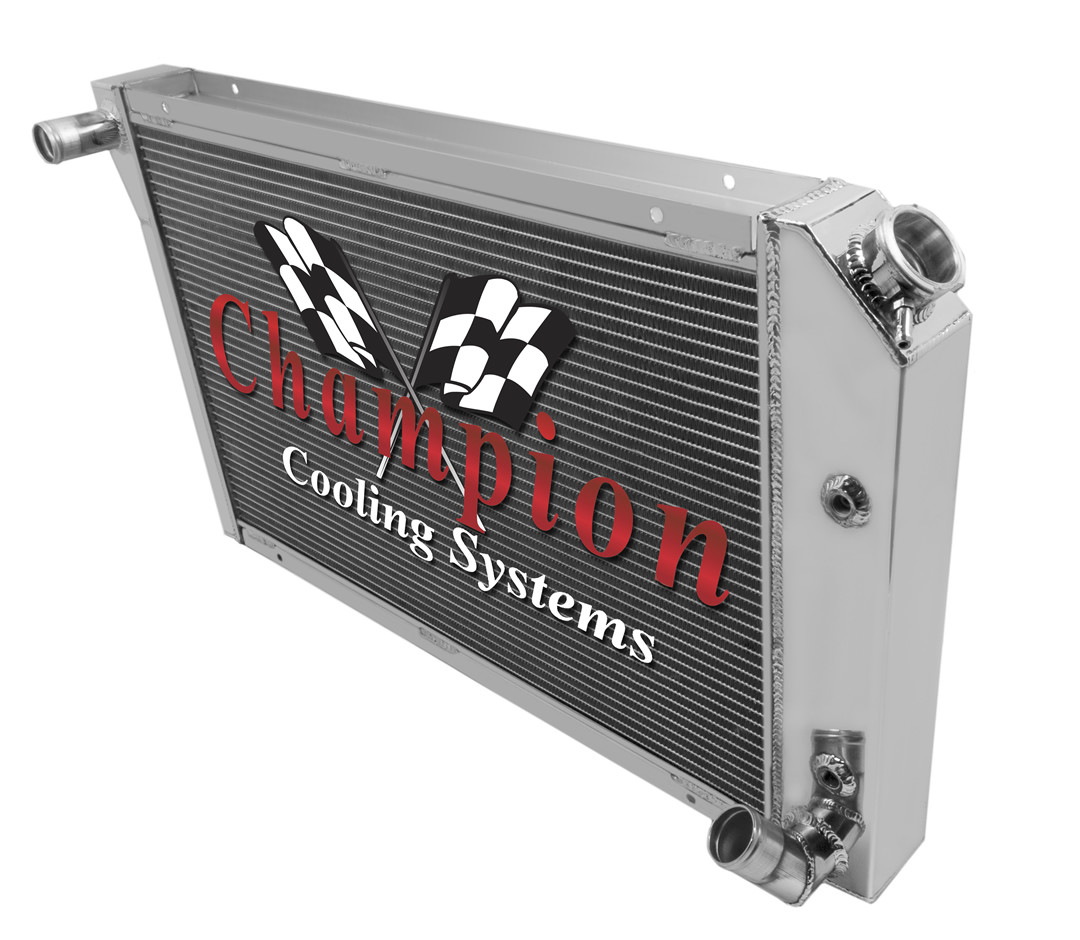

1977 78 79 80 81 1982 Chevrolet Corvette Champion 3 Row Aluminum Radiator CC718 For Sale - New and Used

Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 17\" x 26.25\" - Overall (H x W): 18.75\" x 32.25\" - Hose Locations (In x Out): Driver x Pass - Hose Fittings (In x Out): 1.375\" x 1.5\" - TOC: 1/2-20 Straight Thread, Inverted FlarePlease click on the \"Read more\" link below to view a complete item description with product videos and additional items to upgrade your cooling system.

PART INFORMATION Shipping Payment Policies Contact Us Part Information Related Items Need A Different Set Up? (Click A Photo Below) Genuine Champion Cooling Systems Part #CC718 This radiator is designed for a 5.7L(350ci) V8 engine. Features

• Higher density core: cooling rows are spaced 3/8\" apart: giving you 25% more rows within the core than other aluminum radiators sold on and 35% more rows than OEM copper.
• Aluminum dissipates heat more efficiently than copper or brass.
• 14-16 cooling fins per inch (42 per square inch) giving you approximately 1500 more cooling fins than other aluminum radiators and approximately 3000 more than OEM copper radiators.
• Lighter weight.
• Outperforms other 2, 3 and 4 row copper radiators.
• High performance appearance.
• You get \"BIG BLOCK COOLING\" and \"PEACE OF MIND\" when you drive your car with a Champion Cooling Systems radiator.
• You could easily spend $400 - $1,000 more for a radiator of similar quality.

Specifications

• Down Flow Or Cross Flow Type: Cross Flow
• Mounting Type: saddle
• Tank Material: Aluminum
• Core Material: Aluminum
• Overall Height: 18 3/4
• Overall Width: 32 1/4
• Core Height: 17
• Core Width: 26 1/4
• Inlet Location: Driver
• Inlet Diameter: 1 3/8
• Outlet Location: Passenger
• Outlet Diameter: 1 1/2
• Core Row Quantity: 3 Row
• Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, Inverted Flare
• Internal Transmission Oil Cooler: Yes
• Filler Neck Attached: Yes
• Core Thickness: 2 1/2
• Core Tube Width: 0.75
• Tank Width: 2.75

This package includes a 3 Row All Aluminum Radiator. Shipping Shipping Our radiators are hand packed in the factory box and Shipped via FedEx. Payment Guarantee Policies Contact Us
