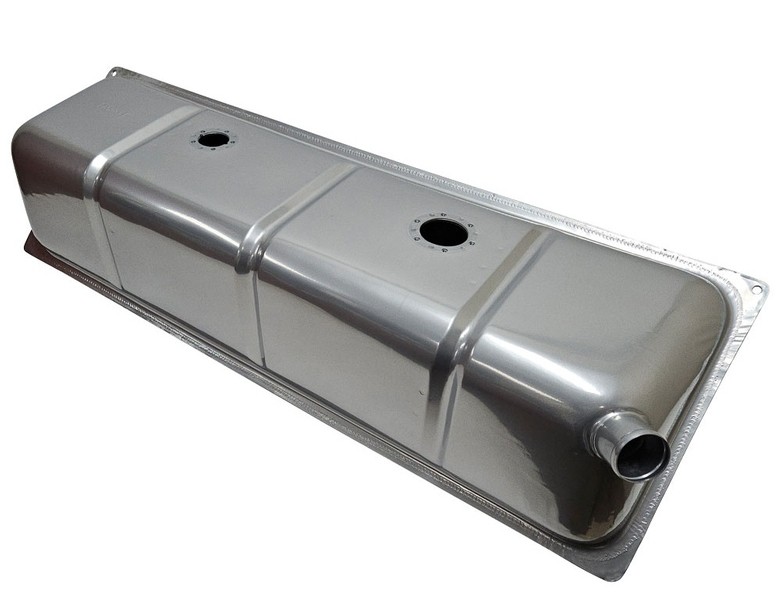

1953-55 Ford Truck Fuel Tank
Fuel Injection Ready!
3/8\" NPT Internal pickup tube for Carb Applications. Fuel pump block off plate included.
Stock Dimensions
Die-Stamped Steel
Can use Tanks Inc GPA series fuel pumps, available in sizes from 109 to 450 liters per hour.
Uses aftermarket 5-bolt senders. Multiple Ohm ranges available to work with factory (0-90 ohm) or aftermarket gauges. If using tube sender or reed sender, length is 11\"
EFI style internal baffling with extra large 4.8 liter dual tube baffled fuel tray to prevent fuel pump starvation.
Looks like an OE tank when installed.
Coated galvanized steel then Powder Coated Silver.
17 Gallon Capacity
Size is: 38-1/4\" x 11\" x 11-1/4\" High
When using this tank with a GPA series fuel pump a 3/8\" NPT pipe plug is needed to block off the internal fuel tank pickup tube.
