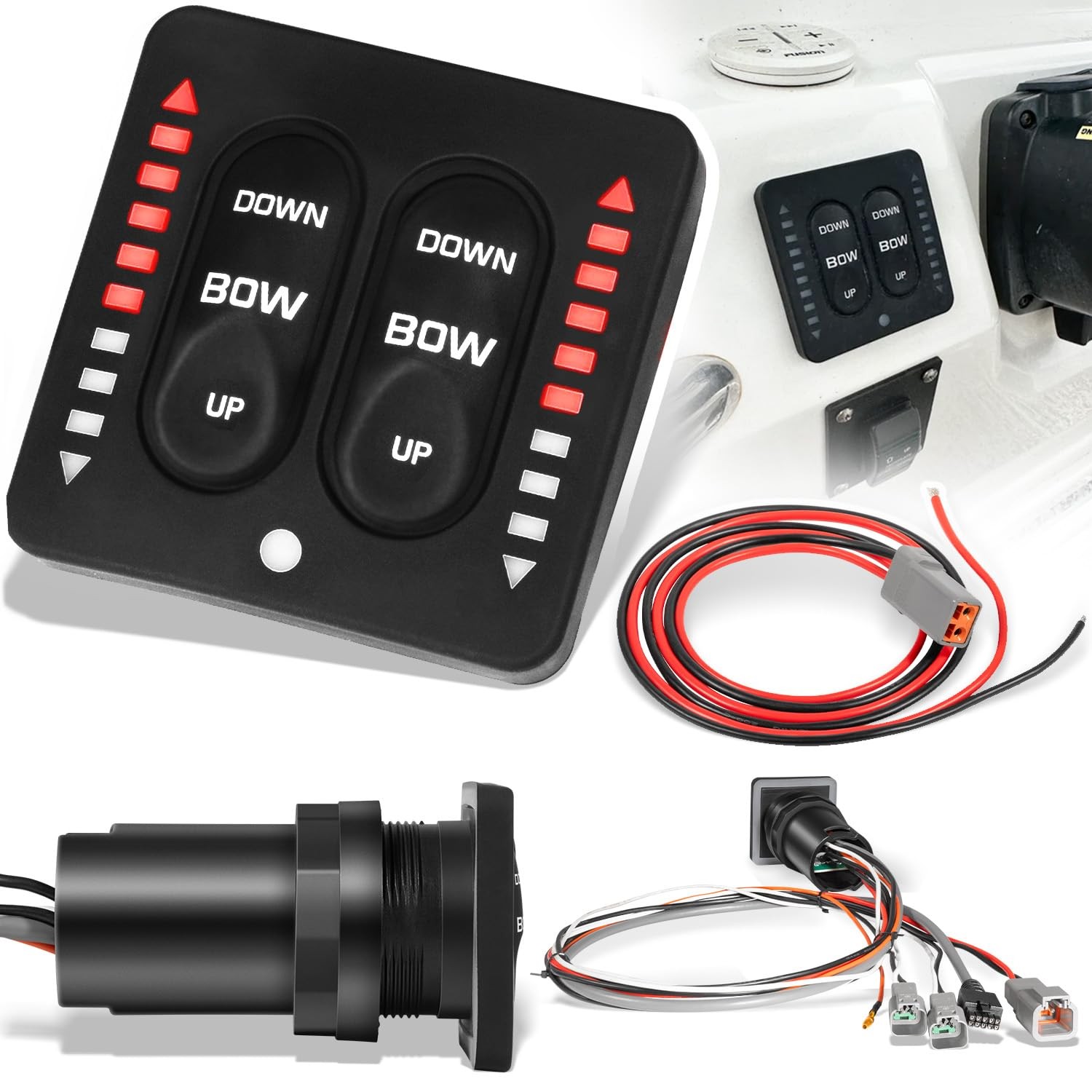

15170-001 for Lenco Single Actuator LED Indicator Trim Tab Switch Kit W/ Pigtail
【For Single Actuator Systems】
15170-001 LED Indicator Integrated Tactile Switch Kit with Pigtail is compatible with Lenco Marine Single Actuator Trim Tabs.
Also suitable for standard and HD performance trim tabs with single actuators,
ensuring broad compatibility and seamless integration into existing systems.
【Advanced LED Indicators & Precision Control】
Equipped with 2 high-intensity LED indicators, this system provides precise and clear response on trim tab positions at all times, while the integrated control box functionality enhances overall accuracy and control.
【User-Friendly Design, Better Operation】
Equipped with a built-in retractor for automatic neutral positioning, this system utilizes a photo eye sensor that reads ambient light and adjusts the LED intensity for optimum viewing in all lighting conditions.
Additionally, the backlit keypad provides enhanced visibility for effortless operation at night.
【Streamlined Plug & Play Installation】
Enjoy a straightforward installation with our included manual.
Simply use a 2 1/16” (5.24 cm) hole saw to cut a circular opening at your chosen helm location.
Insert the keypad, feed the wiring through the bezel nut, and hand-tighten it on the backside.
Connect the wiring harnesses and the orange ignition sense wire to separate power sources, ensuring quick and efficient setup.
【Comprehensive Specifications】
Includes a 30" (76.2 cm) wiring harness from the switch bezel, a 36" power pigtail,
a keypad dimension of 2.75" x 2.75" with a 2 1/16" hole cut-out, and requires 4.08" clearance,
all designed within a sleek, low-profile form factor.
【Package Included】
15170-001 LED Indicator Integrated Tactile Switch Kit
Brandfor LencoManufacturer Part Number15170-001Typeintegrated indicator switch kit Material copper, rubber and plasticFitment 1 Fit for Lenco Marine Single Actuator SystemsOE/OEM Part Number15170-001Warranty1 Year
