Replacement Filter For FD-4615 Fuel Filter 5 Micron Water Separator Kit Replaces FD4615 BC3Z-9N184-B Leak-Proof DesignProduct description
✅【5 MICRON FILTRATION】Premium 5-micron filter media effectively removes contaminants, water and impurities. Meets or exceeds OEM specifications for optimal fuel flow.
✅【COMPLETE KIT】Direct Replacement For FD-4615, BC34-9N184-BA, BC3Z-9N184-B, L4615F, 33615, FF1223, K10826, BF9895.
✅【LEAK-PROOF DESIGN】Precision-engineered O-rings ensure tight seal. Premium rubber material prevents fuel leaks. Tested for durability under harsh conditions.

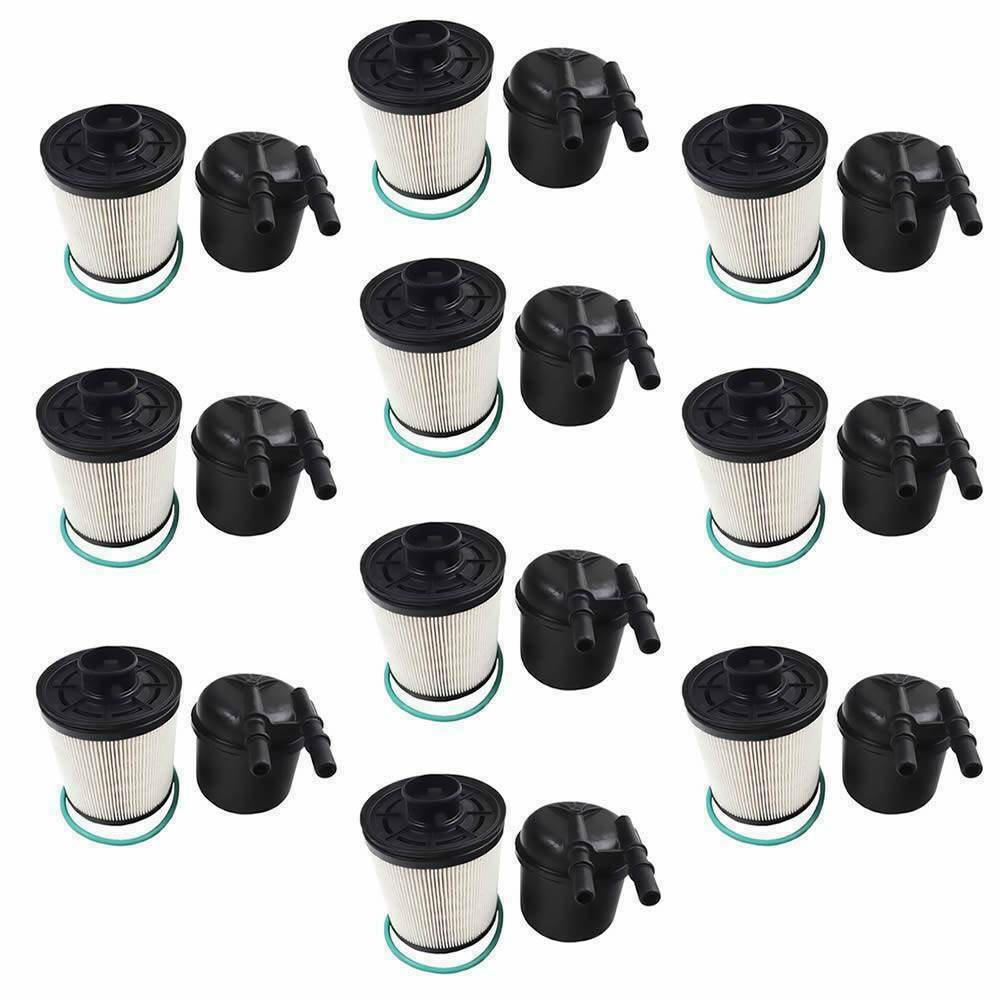

✅【Package includes】10 Packs (1 Pack includes Two filters: one engine mounted filter and the frame mounted filter, and one gasket/o-ring for the frame mounted filter).
COMPATIBLE WITH
For 2011-2016 F-250 Super Duty 6.7L Diesel Engine
For 2011-2016 F-350 Super Duty 6.7L Diesel Engine
For 2011-2016 F-450 Super Duty 6.7L Diesel Engine
For 2011-2016 F-550 Super Duty 6.7L Diesel Engine
For 2016 F-650 Base Straight/Tractor Truck 6.7L Diesel Engine
For 2016 F-750 Base Straight/Tractor Truck 6.7L Diesel Engine
Precision Filtration:
Our advanced media traps 5-micron contaminants, ensuring clean fuel.
Water Warrior:
Efficiently separates 98% of water from your fuel, preventing rust and injector tip failure.
Frame-Mounted Filter Change:
1: Disconnect the electrical sensor harness.
2: Open the yellow drain valve and drain fuel into a container.
3: Use a strap wrench (recommended) or 11/4"socket to loosen and remove the filter cap.
4: Replace the filter and lubricate the new O-ring before reassembly
Engine-Mounted Filter Change:
1: Release the fuel line clips (push yellow tabs /squeeze white tabs).
2: Twist the filter housing to the right until it stops, then pull straight up to remove.
3: Install the new filter and reassemble in reverse order.
