Tech Data: Thread Pitch: M14x1.5 · Lug Bolts Shank Length: 28 mm · Lug Bolts Flange: 23 mm · Lug Bolt Seat: R14 Ball Seat ? full specs belowFitment:Porsche:
- Panamera 20-Now
- Taycan 20-Now
- Macan 19-Now
- Cayenne 18-Now
- 911 89-Now
- Macan EV 25
- 718 Spyder 20-25
- 718 Boxster 17-25
- 718 Cayman 17-25
IMPORTANT FITMENT NOTICE: Fit And Care: ? Ball seat only - inspect the seating face, not the bolt head ? On blind-hole hubs (Mercedes and similar), an over-long bolt bottoms out ? Hub threads wear with no warning ? Key and to? 's chart confirms thread pitch only ? unsure? Message us and we'll verify fitment before you buy. ESPLUS Company Logo ESPLUS precision wheel hardware ESPLUS
Precision wheel hardware Store Home Hot Products response Exact specificationsThread, seat, size and quantity Fitment before claimsVehicle and wheel checks separated Listing-level termsShipping and returns stay current message supportApplication context stays together Lug Nuts Mag Seat OEM Lug Nuts Duplex Conical OEM Lug Nuts Regular Acorn Lug Nuts Long Acorn Lug Nuts Open End Lug Nuts Spline Lug Nuts Lug Bolts Ball Seat Lug Bolts Cone Seat Lug Bolts Wheel Locks Locker Lug Nuts Locker Lug Bolts Wheel Spacers Hubcentric Spacer with Ball Seat Bolts Hubcentric Spacer with Cone Seat Bolts Wheel Adapters 5 Lug Adapter 6 Lug Adapter 8 Lug Adapter 5 Lug Hubcentric Adapter 6 Lug Hubcentric Adapter Precision wheel hardware · Fitment-first specification Ball Seat Wheel Lock Bolts for Factory Euro Wheels Matching key included; key drives with a 3/4 in or 13/16 in socket.

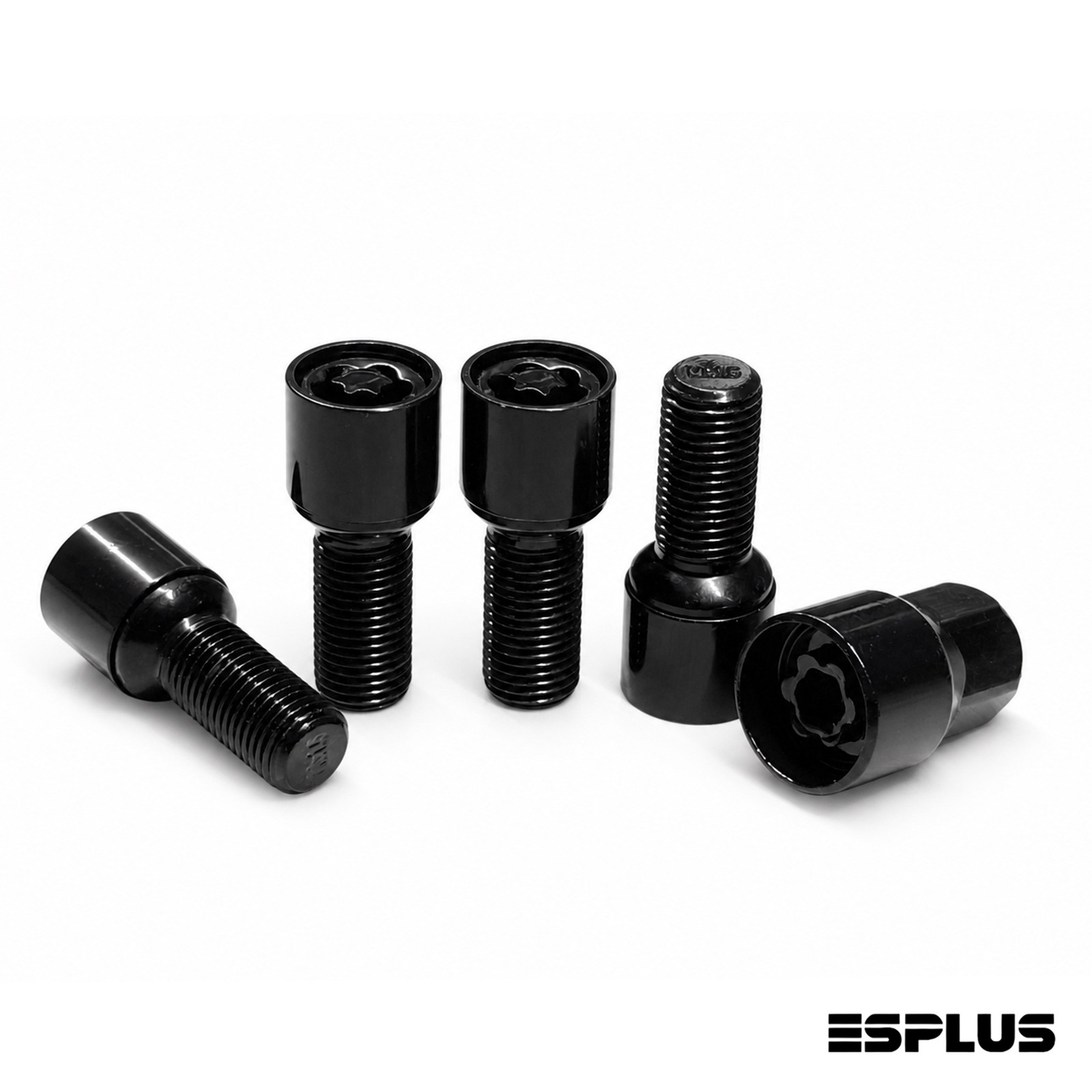

1 Set Porsche OE Style Black M14x1.5 Ball Seat Wheel Locks 28mm Shank for Macan
Wheel Theft DeterrentFor Factory Euro Ball Seat WheelsTurns With A Standard SocketMatching Key Included Fitment-first engineering 01 · Order scopeConfirm the exact quantity.Use the listing title and the technical data as the order reference, not the vehicle photograph. 02 · Vehicle sideConfirm thread and application.Read the compatibility section and every fitment note before ordering. 03 · Wheel sideConfirm the actual wheel hardware.Match seat geometry, diameter, clearance, depth and usable thread engagement. Technical Data Numbers, not adjectives.
Every dimension your wheel cares about ? measured, verified, documented.
A Wheel Lock Bolt Type · Ball Seat Wheel Lock Bolt ×1 PCS/Set Thread PitchM14x1.5Lug Bolts Shank Length28 mmLug Bolts Flange23 mmLug Bolt SeatR14 Ball SeatColor and FinishBlackDriveLockTool Requirement3/4"& 13/16" Hex SocketMaterial MadeSCM Carbon SteelQuantity Per Order1 Set ? One Lock Per Wheel (1 Key Included)California Prop 65 WarningWARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Vehicle Compatibility Fits your car.
Verified, not guessed.
Ball seat wheel lock bolts for factory Euro ball seat alloy or steel wheels. Match the seating face and original shank length.
1Brands 9Vehicles 3Regions EU Germany 1 Featured Porsche Germany · 9 models Stock Alloy Wheel Stock Steel Wheel Aftermarket Wheel Wheel with Cap ModelRegionYear Range 718 Boxster MX 2017-2025 718 Cayman MX 2017-2025 718 Spyder MX 2020-2025 911 US/CA/MX 1989-Current Cayenne MX 2018-Current Macan MX/US 2019-Current Macan EV MX 2025 Panamera MX 2020-Current Taycan MX/US 2020-Current
Not sure? Message us ? we verify your exact year & model before you buy.
Product Display A closer look at the product.
Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.
Check Before You Order Some fitment details only your vehicle can tell you.
The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.
Why It's Built Different Performance you can torque down. Contact Matched To The Wheel
The wheel lock bolts use a ball seat to transfer clamping force through the matching wheel seating face.
Fine, Closely-Spaced Grooves
The wheel lock bolts engage the matching key through fine, closely-spaced grooves, transferring hand-tool force through the keyed profile.
Randomized Keyway Profiles
Wheel lock key patterns are randomized in production, with over a hundred keyways in circulation. A theft deterrent, not a guarantee against theft.
SCM Carbon Steel Load Path
The wheel lock bolts carry wheel-clamping force through SCM Carbon Steel shanks threaded into the hub.
How to Install 3 steps to torque.
Follow the sequence below ? fitment is everything, so read Step 1 carefully.
01 Verify Seat And Shank
Inspect the wheel seating face for a matching ball seat. Compare the bolt shank with the original before fitting.
An over-long bolt can bottom out in a blind hub hole. 02 Hand-Start The Fasteners
Align the wheel and hand-start the wheel lock bolts. Engage the supplied key fully.
Confirm smooth thread engagement and full seating contact. 03 Tighten With The Key
Use the supplied key with a 3/4 in or 13/16 in socket and a torque wrench. Tighten in a star pattern to the applicable vehicle specification.
Use hand tools; an impact gun rounds the lock grooves. 01 / 4 4 photos in this guide — tap the arrows or dots to see every step Important Fitment Notice Fit And Care:
- Ball seat only - inspect the seating face, not the bolt head
- On blind-hole hubs (Mercedes and similar), an over-long bolt bottoms out
- Hub threads wear with no warning
- Key and torque wrench only - an impact gun rounds the grooves
- A rounded lock has to be drilled out of the wheel
- Key Included - Socket Not Included; key needs a socket - not included
- Lost key: replace the set; keys cannot be replaced by code
's compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through before ordering if anything is unclear.
Why ESPLUS Clarity before checkout.
Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.
Specification First
Thread, seat, dimensions, finish and quantity are organized for direct comparison.
Fitment in Two Layers
Vehicle compatibility and wheel-specific hardware checks are presented separately.
Component-Level Detail
Combination listings keep each component's quantity, gallery and technical data distinct.
Pre-Purchase Support
Message us through with your year, model, wheel and current hardware details.
Questions, answered Check the details that decide fit. Will this wheel hardware fit my exact vehicle?Start with the vehicle compatibility section, then read every fitment note. Compatibility data does not replace wheel-side checks such as seat type, hardware dimensions, hole clearance and usable thread engagement. How do I confirm thread pitch and seat type?Compare one piece of your existing hardware with the technical data and the Check Before You Order images. Match the thread on the vehicle side and the seat geometry required by the wheel. What should I verify on aftermarket wheels?Confirm the wheel's seat profile, fastener-hole diameter, tool clearance, installed depth and required engagement. These wheel-specific facts are not established by year, make and model alone. What torque specification should I use?Use the vehicle or wheel manufacturer's applicable specification and installation procedure. If the two sources differ or the application is modified, consult a qualified installer before installation. Where can I find current shipping and return terms?Use the Shipping, delivery and Returns sections of this listing as the current order-level terms. Those listing controls take priority over general informational text. Shipping · Returns · Fitment Order terms, kept current.
The controls attached to this listing are the source of truth for the transaction.
Shipping
Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the order when available.
Returns
The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the purchase record.
Fitment Responsibility
Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through before ordering.
