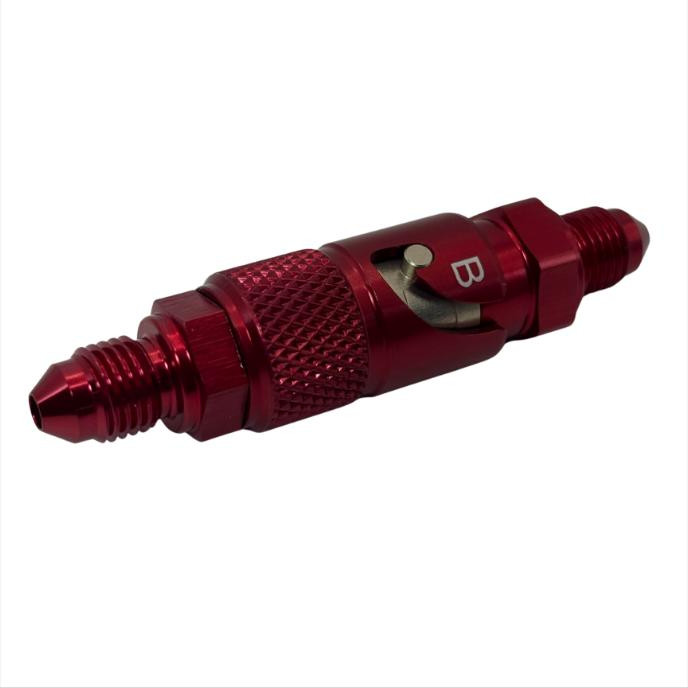

The AN3 quick disconnect dry-break (part number QDSPH0303AL-B) is a red anodized aluminum -3 AN quick disconnect with clean dry-break ends on both sides, made for brake and clutch line systems where ease of maintenance is a priority.
- Quick-disconnect: both male and female ends are clean dry-breaks, so liquid stays in the line when disconnected.
- 3/8″-24 male AN3 threads on either side.
- Only 2-3/4″ (70mm) total length end to end, including threads, when coupled.
- 0.65″ max O.D.
- O-ring seals are Ethylene Propylene (EPDM), for use with brake and clutch fluid.
- 1/8″ flow diameter; cross section 0.011 in²; max pressure 3,000 psi.
- Swivel type fitting meaning the female end connection can rotate continuously either direction without binding the hose to allow for easy connection and disconnection.
- Knurled handle on the female side for easy grip.
- Comes with -3 AN plastic caps to protect the threads.
- Sold individually.
- Part # QDSPH0303AL-B.
AN3 Quick Disconnect Dry-break SpecificationsPart #QDSPH0303AL-BSize-3 AN, 3/8″-24 male threads both endsMaterialAnodized aluminum, redSealsEthylene Propylene (EPDM)FluidBrake and clutch fluidFlow diameter1/8″Cross section0.011 in²Max pressure3,000 psiLength, coupled2-3/4″ (70mm) including threadsMax O.D.0.65″Weight0.3 lbQDSPH0303AL-B Application:
- Brake and clutch lines on road racing and club racing cars, for fast brake-component swaps between sessions
- Experimental aircraft, marine, and industrial systems using brake-fluid-compatible lines
Race proven: this exact model of quick disconnect was installed on the brake lines of the car that won the FR Americas (Formula 3) race at New Jersey Motorsports Park in 2026, driven by Evagoras Papasavvas, to allow clean and quick replacement of brake parts in between track sessions.
