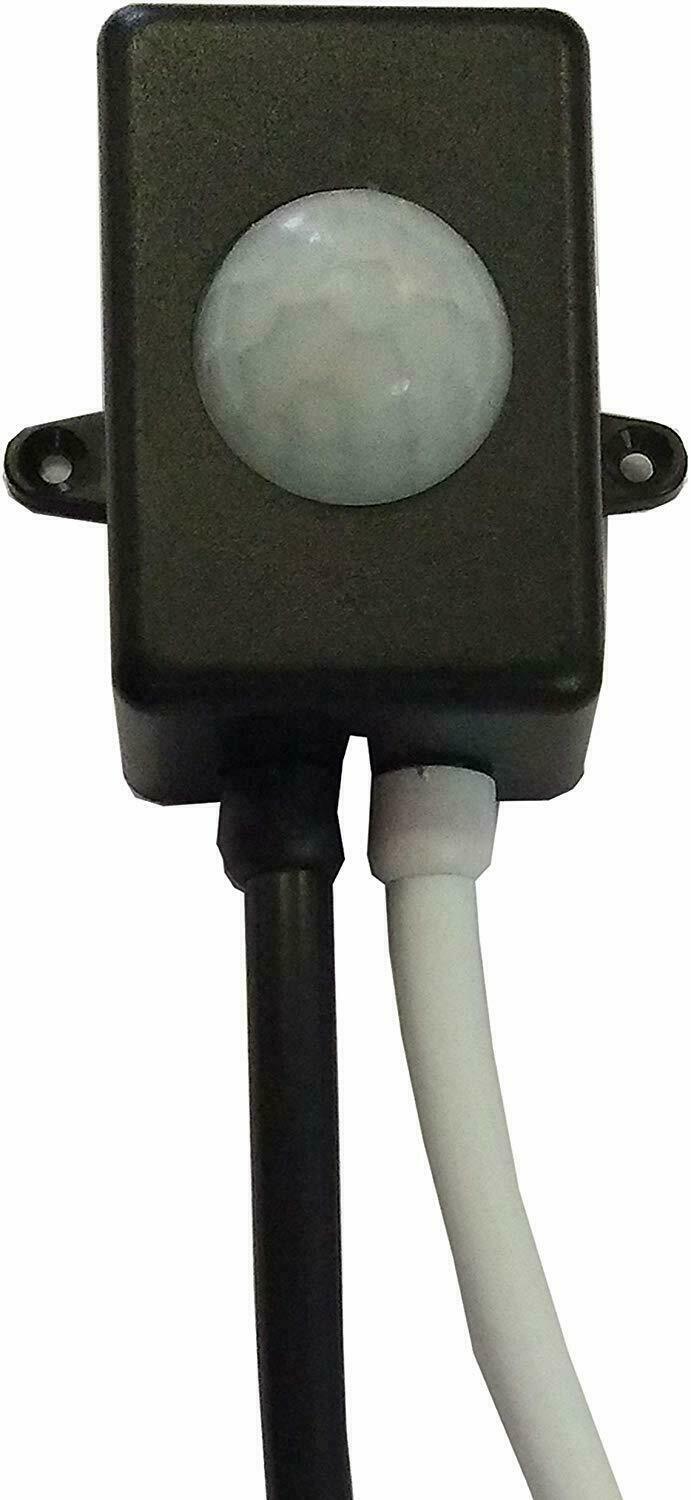

*12V DC RV PIR-S25 MOTION SENSOR SWITCH fOR LED LIGHTS HALOGEN BULBS FREE SHIP
Features:
- This Sensor Switch is Designed for 12volt DC Power Applications, Like RVs, Van, Motorhome, Camper, Trailer, Boat or Yacht
- Compatible to Use with LED Lights, Incandescent , Halogen bulbs and LED Strip Lights with 12V DC Power Supply
- Rate up to 25 Watts to Use with Single or Multi-lights. DON-NOT Over-load the Max Wattage. Add this Switch to Make Your Lamps to be Sensor Function
- Detection Distance : 16-20ft ( 5-6 Meters ). Time Delay: 120Sec(after motion is detected). Motion Sensor Can be Activated When Human is Within 16-20ft. The Light Will Stay on 120 secs When Detected by Motion Sensor
- Installed in the Standard 4-Wires Configuration: First Connect the IN+ & IN- to DC 12 Volts Power Supply; then Connect the OUT+ & OUT- to Your Lamps
Dimension(inch): 2.12'' x 2'' x 1.2''Finish: BlackComment Use with LED Lights, Incandescent and Halogen bulbsUp to 25 Watts to used with Single or Multi-lightsCETL ListedDetection Distance : 20 FT ( 5-8Meters )Time Delay: 120Sec(after motion is detected)Easy InstallationLock the PIR sensor switch to everywhere that you want with 2 screws
ELECTRICAL CONNECTIONS
First connect the sensor switch to 12 volts power supply:
1. Connect black wire(s) with “IN-” mark from the dimmer to the white (neutral) wire of the supply circuit.
2. Connect red wire(s) with “IN+” mark from the dimmer to the black (live) wire of the supply circuit.
Then connect the dimmer to your lights:
1. Connect black wire(s) with “OUT-” mark from the dimmer to the white wire(s) of LED lamps.
2. Connect red wire(s) with “OUT+” mark from the dimmer to the black wire(s) of LED lamps.
BRAND NEW
