AN6/AN8/AN10 Steel Nylon Braided Oil Fuel Line Swivel Hose End Kits 10/16/20FT:
$41.72

Item Description: Autoparts-Accs AN6/AN8/AN10 Steel Nylon Braided Oil Fuel Line Swivel Hose End Kits 10/16/20FT👀【Fuel Hose Features】Black braided nylon fuel hose features an all-black nylon fiber braided outer cover and a Chlorinated Polyethylene (CPE) synthetic rubber inner line. Maximum Working Pressure (psi): 500 psi. Bursting Pressure (psi): 2000psi. Working Temperature: -40℉ to 350℉
👀【Hose End Fittings Features】Designed For Smooth Flow, the hose end fittings are made of high-quality aluminum alloy material for strong strength. Polished and anodized surface provide the bright appearance and corrosion protection.
👀【Compatible With】Mostly worked with coolant, fuel, diesel, oil, hydraulic fluid, pump gas, alcohol and air. NOT FIT E85. 10an nylon braided hose can be used in brake system, pump, oil return, fuel return system, turbo cooler system and transmission system.
👀【Safety Features】Nylon fiber and stainless steel braid 10an cover for excellent flexibility and resistance to abrasion. 5/8 Braided nylon CPE fuel line can be used for a long time at -40℃ to 100℃ oil temperature. Not recommended installation in corrosive environment, 10an braided fuel line\'s service life will be influenced. Outer nylon braided has excellent inflaming and safer to use.👀【 Warranty】If you receive any problems with the product, please contact us promptly, we have 90 days to repair, 30 days free return, so that you solve the worries.Item Features: 1.For use with fuel systems, methanol, oils, lubricants, coolant system and vacuum applications.
2.Suitable for fuel, lube, alcohol, ethanol, coolant and air for automobiles or marine engines, most suitable for racing cars & motor racing bikes.
3.This hose isn\'t suitable for brake fluid and is not to be used near extreme heat sources such as a turbocharger.
4.For ease of installation on aluminum racing fuel cells we have put together our braided fuel line kit to adapt to your existing fuel system. 5.The braided cover greatly increases the resistance of the hose to internal pressure and retains it form.
6.Made of durable PTFE synthetic rubber tube bonded and secured by Nylon and 308 Stainless Steel outer braid

Item Specifications:

100% Brand NewWarranty :90 DayFree Return:30 DayColor:Black & Red
Swivel Fitting Hose End:
1.High Performance Racing Fittings
2.Made of Premium Quality T6061 Alloy Aluminum
3.CNC Machined
4.Anodized Surface
5.Enforced for Heavy Duty Use
6.Removable head for both push-on or twist-lock applications
7.Fitting Type: Straight, 45 Degree, 90 Degree, 180 Degree
8.Color:Black
The Fuel Hose:
1.Inner hose Material: CPE Synthetic Material Hose
2.Outside: Covered with high quality Nylon and Stainless Steel Wires
3.Working Temperature: -40 F to +350 F
4.Working Pressure: 1000 PSI
5.Burst pressure: 6000 PSI
6.Inner diameter: 0.56\"
7.Outside diameter: 0.79\"
8.Color:Sliver

How to Cut:
For cutting your new steel braided hose to length you will need:
1.Measure your hose and find desired length.
2.Tape hose at measured length needed for application.
3.Cut hose threw the tape you have placed.(This keep the steel braid from fraying)
4.Remove the tape.
5.Slide one end of hose into end of fitting.
6.Insert the other half of fitting into the hose and begin to push and screw the fitting together.
7.Make sure all connection are tight.

Installation

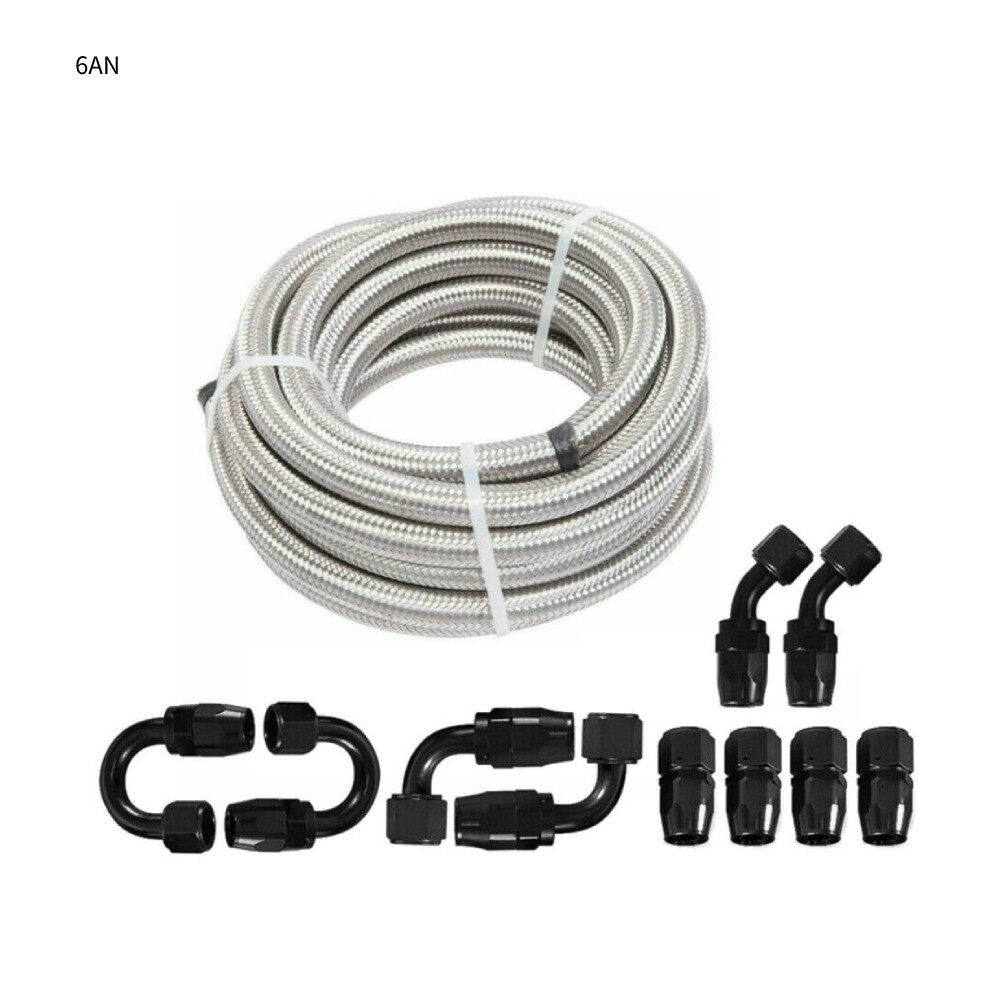

Packing List:Straight Swivel Hose End X4 PCS45 Degree Swivel Hose End X2 PCS90 Degree Swivel Hose End X2 PCS180 Degree Swivel Hose End X2 PCSStainless Steel Nylon Braided Hose 10/16/20 Feet(as the picture show)NOTE:(1) Items would be shipped within 24 hours with cleared payment(Exclude Weekend and Holidays)
(2) Items wont be shipped to Puerto Rico(Please check your address before placing an order!)
(3) Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not reflect the actual color of the item
(4)It would be highly appreciated if you might contact us first once you have any problems concerning the items. And you can expect all the issues would be resolved ASAP! PaymentDelivery detailsTerms of salesAbout usContact usPayment1.Payment must be received within 7 days after winning the item，UPI (Unpaid Item Case) will be filed automatically if buyers fail to make the payment in 7 days after item ends.2.If you have difficulty paying for the item, please email us to cancel the orderDelivery details1.Items will be sent out in 48 hours on payment received from Monday to Friday. Orders during weekends and holidays will be posted in the following working day.2.Please make sure your shipping address and the order information is correct before placing an order. We will not be responsible for item loss due to wrong or unknown address.Terms of sales1.We accept30 days return/refund guarantee2.If the item you received is faulty, damaged or incorrect, or any further problems, you can return it for replacement or refund, please contact our customer service on within 30 days from item received.
3.For damaged items on arrival, please contact us immediately, sending us an email with a photo is preferred. We will offer solutions to such cases. Full refund or replacement will be guaranteed.About us

Welcome to Super Auto Parts Processing Plant!

we have been providing the quality products in automotive parts & accessories for years.

Being a professional e-Bayer that provides you guys the greater shopping experience is our mission.

Contact us1.Please contact us first if you have any questions such as product damaged, item not arrived, wrong item sent and item does not work. All those issues would be solved immediately with your satisfactory!2. Please contact us first before you left us a negative/neutral response and we are pleased to solve the problems you met.3.Please feel free to contact us if you have any problems and we would always be here for your need.BrandAutoparts-AccsUPCDoes Not ApplyWarranty90 DayAvailable Size6/8/10ANHose Length10/16/20feetFitting QTY10PCSFuel Hose MaterialStainless Steel, NylonFuel Hose ColorBlack, SilverFitting ColorBlack, Red/Blue,Red/BlackFitting MaterialT6061 Alloy AluminumFitting TypeSwivelManufacturer Part NumberDoes not applyColorSilverModelUniversalFree ReturnYESShipmentUS STOCK
