****(FACTORY BEZEL/HOUSING IS NOT INCLUDED--THAT PHOTO IS FOR DISPLAY PURPOSES. THE SALE IS FOR PANEL KIT ONLY)******

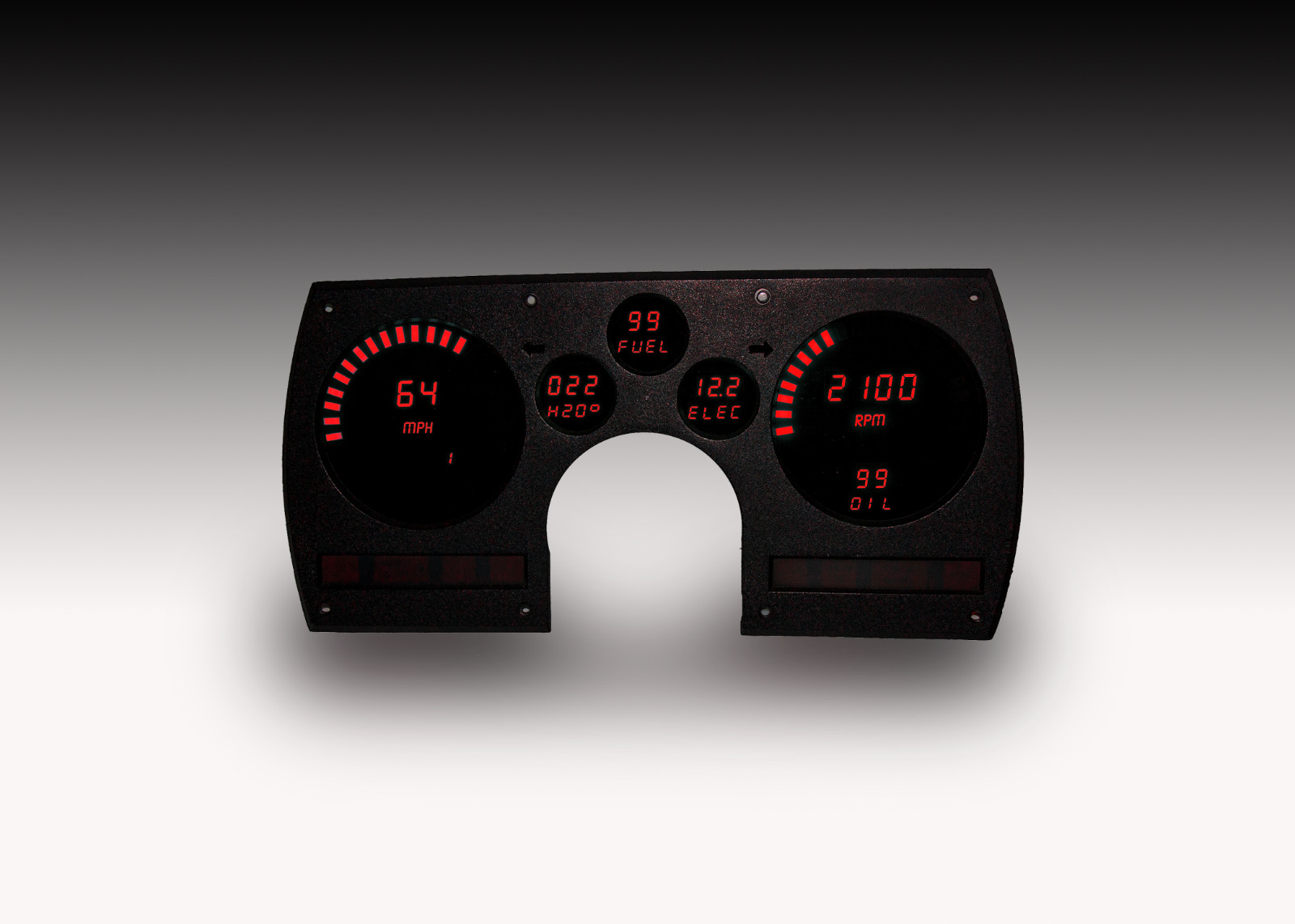

This listing is for 3RD GEN CAMARO DIGITAL GAUGES, which are a direct factory replacement! This 82-90 Camaro kit has RED LEDS!!Also, one of the photos does not do justice to the actual RED, which is beautiful, just so bright that the camera has trouble capturing it accurately. Other colors are also available; please see our other listings.This Digital Dash comes complete with direct fit printed circuit board, custom fit "smoked" Plexiglas face plate, universal temperature sending unit, and speedometer sending unit (sender/sensor) for cars without electronic transmission or cruise control, and instructions for installation. The Digital Dash works with your factory fuel level sending unit and oil pressure sending unit, as well as your cruise control sender or electronic transmission output if so equipped. Everything directly fits into your existing housing, but you may need to run some new wires to the speed sensor.
The Speedometer reads up to 255 MPH (KPH is also available--please just send a note to seller when you order for that option) and features odometer, trip meter, one-button calibration (regardless of tire size, gear ratio, or transmission) and 0-60 time, 1/4 mile ET, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 (universal speedometer sending unit) if your vehicle is not equipped with a functional cruise control.
Other gauges include the Water Temperature display with 100-300°F range (Celsius is available upon request--please just send a note to seller when you order) (Sender S8013 included--please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request; please just send a note to seller as, otherwise, you will have to get the correct bushing on your own), the Oil Pressure display with 0-100 PSI range (works with existing factory GM sender), Voltmeter display with 7.0-25.5 volt range (no sending unit required), and Fuel Level display with 0-99% range in 1% increments (works with existing GM fuel level sending unit).
Intellitronix panels were featured on Stacey David's Gearz TV show! They come with a Lifetime Guarantee and are made in the USA!
See it in action align="center" style="font-family: "Times New Roman"; font-size: medium;">If you're not 100% completely satisfied, then just arrange to send it back within the return period:)
If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, if your LS engine is 4 cylinder, then please send a note to seller letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
Spruce up your great vehicle with an Intellitronix dash panel today!
If you send an message, then please be aware that we generally work M-F 8 a.m. - 5 p.m. and it may take 2 business days or more to respond. Please be patient as we answer questions in the order in which they are received. Please read the listing carefully. Also, we do not know your specific individual vehicle, so you will need to consult a dealer or service manual for questions about your specific individual vehicle. For shipping information, lists tracking information automatically, so we cannot tell you any more than the order page will display automatically anyway, so please do not ask shipping questions unless your order has not shipped as agreed, which should not happen because we ship as agreed with . For example, if you order a 3 business days handling time item on the weekend, it counts as a Monday order, which means it must ship by Thursday (the third business day after the day the order was placed) at midnight, according to ; please do not message us on Tuesday asking where your item is when it is not scheduled to ship until Thursday, something you agreed to when you ordered the item. For technical matters, you should contact the manufacturer's technical support department directly, as we will just refer you to them anyway, so asking us technical questions is not a good use of your or our time. More info can also be found at the Intellitronix website.
THIS PROUCT COMES WITH A LIFETIME WARRANTY!
