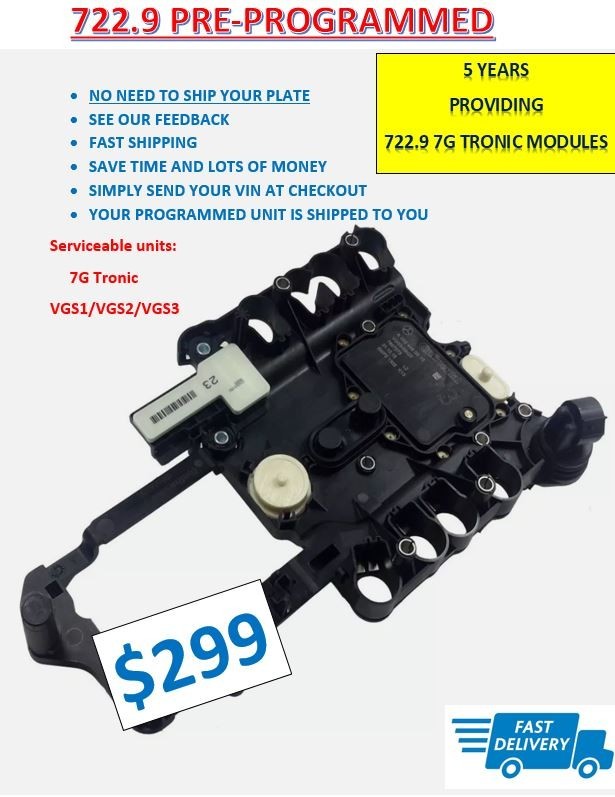

Mercedes Benz 7G Tronic 722.9 TCM Conductor Plate PROGRAMMING Service
+
722.9 Conductor Plate VGS 1/2/3
THIS IS FOR MERCEDES BENZ 7G TRONIC 722.9 VGS1/2/3
CONDUCTOR PLATE \"AND\" SERVICE TO PROGRAM UNIT TO YOUR VIN
FAST SHIPPING DIRECTLY TO YOU
SAVING YOU TIME AND MONEY
WHAT WE DO....
- VIRGINIZE A TESTED UNIT
- PROGRAM YOUR VIN AND VEHICLE MODEL YEAR INFORMATION
- PROGRAM YOUR EHS NUMBER THAT IS STAMPED ON THE SIDE OF YOUR VALVE BODY
- FLASH THE CONTROL UNIT WITH YOUR VEHICLES REQUIRED SOFTWARE
- ECU SCN CODE YOUR CONTROL UNIT
- WE RELEASE THE TRANSPORT PROTECTION AND ACTIVATE YOUR UNIT
WHAT INFORMATION DO WE NEED
- VIN NUMBER(INCLUDE VIN IN CHECKOUT USING \"MESSAGE TO SELLER\" OR SIMPLY MESSAGE IT TO US.
- THATS IT!!!
CONTACT US WITH ANY QUESTIONS
512 ! 608 ! 0521
VGS VERSIONS IN STOCK WILL VARY
CONTACT US TODAY WITH YOUR VIN!
FAQs
Q. Is it plug and play?
A. Yes BUT..., No further programming or coding is required. We\'ve done it all. Just do the adaptation initialization steps and range sensor learning with most bi-directional scan tool and that’s it. You\'re back on the road.
*SIMPLE INSTRUCTIONS AND SUPPORT CONTACT NUMBER INCLUDED WITH YOUR UNIT
Transmission Control Unit TCM / TCU Siemens VDO / Continental
Part number:
·A 0335456632
·A 0335456732
·A 0335457232
·A 0335457332
·A 0034460310
Error:
·Y3/8Y1 WORKINGPRESSURE CONTROL SOLENOID
·Y3/8Y2 K1 CLUTCHSOLENOID
·Y3/8Y3 K2 CLUTCHSOLENOID
·Y3/8Y4 K3 CLUTCHSOLENOID
·Y3/8Y5 B1 BRAKE CLUTCHSOLENOID
·Y3/8Y6 B2 BRAKE CLUTCHSOLENOID
·Y3/8Y7 B3 BRAKE CLUTCHSOLENOID
·Y3/8Y8 TORQUECONVERTER LOCKUP SOLENOID
·Y3/8S1 SELECTION RANGESENSOR
·Y3/8N1 TURBINE SPEEDSENSOR
·Y3/8N2 INTERNAL SPEEDSENSOR
·Y3/8N3 OUTPUT SPEEDSENSOR
·Y3/8N4 FULLYINTEGRATED TRANSMISSION CONTROL
ErrorS:
·0641 Component Y3/8n4(Fully integrated transmission control (VGS) control
unit) defective
·0642 The voltagesupply of the speed sensors is faulty.(Undervoltage)
·0705 ComponentY3 / 8S1 (selection area sensor (VGS)) is defective
·Check 0706Component Y3/8S1 (Range Sensor (VGS) Selection)
·0717 The signalfrom component Y3 / 8n1 (turbine speed sensor (VGS)) not available
·0718 ComponentY3 / 8n1 (Turbine Speed Sensor (VGS)) Defective
·0722 The signalfrom component Y3 / 8N3 (Output speed sensor (VGS)) not available
·0723 ComponentY3/8N3 (Output Speed Sensor (VGS)) is defective
·0748 Theinternal electrical test of component Y3/8y2 (K1 clutch control solenoid valve(VGS)) failed
·0778 Theinternal electrical test of component Y3/8y5 (B1 Brake Control Solenoid Valve(VGS)) failed
·0798 Theinternal electrical test of component Y3/8y7 (B3 Brake Control Solenoid Valve(VGS)) failed
·2216 checkcomponent Y3/8S1 (selection range sensor (VGS)) The adjustment sequenceoccurred outside of the valid range
·2716 Theinternal electrical test of component Y3/8y4 (K3 clutch control solenoid valve(VGS)) failed
·2725 Theinternal electrical test of component Y3/8y6 (B2 brake control solenoid valve(VGS)) failed
·2734 Theinternal electrical test of component Y3/8y3 (K2 clutch control solenoid valve(VGS)) failed
·2759 Theinternal electrical test of component Y3/8y8 (torque converter lockup clutchcontrol solenoid valve (VGS)) failed
·2766 Too highspeeds have occurred on components Y3 / 8n2 (internal speed sensor (VGS))
·2767 The signalfrom component Y3 / 8n2 (Internal speed sensor (VGS)) not available
·2768 ComponentY3 / 8n2 (internal speed sensor (VGS)) is defective
·2810 Theinternal electrical test of component Y3 / 8y1 (working pressure controlsolenoid valve (VGS)) failed
Otherdiagnostic error:
·0604 , 0605 , 0607,060A , 060C , 0613 , 061B , 062F , 0633 , 0641 ,
·0651 , 06A3 , 0701 ,0711 , C300 , 1610 , 1629 , 1631 , 1632 , 1633 , 1634 ,
·1636, 1638 , 1639 ,1693 , 1710 , 1711 , 1712.
